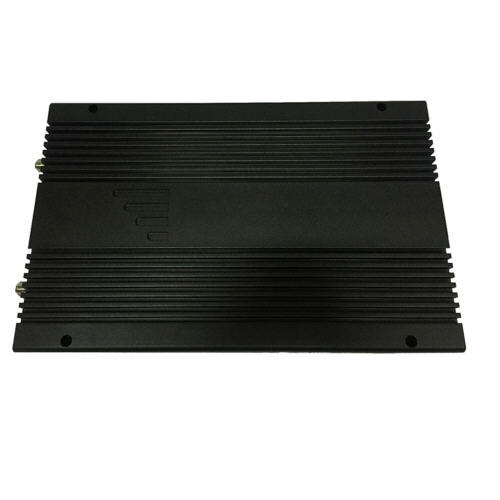

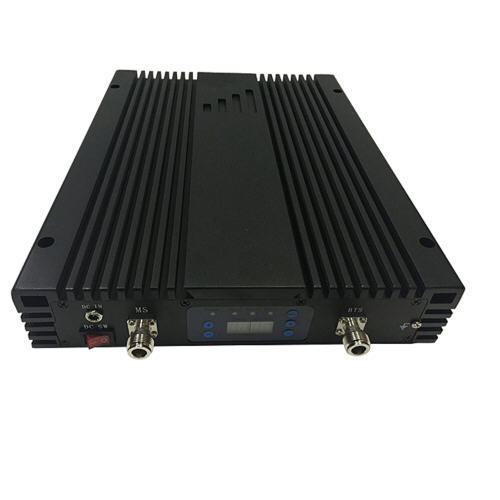

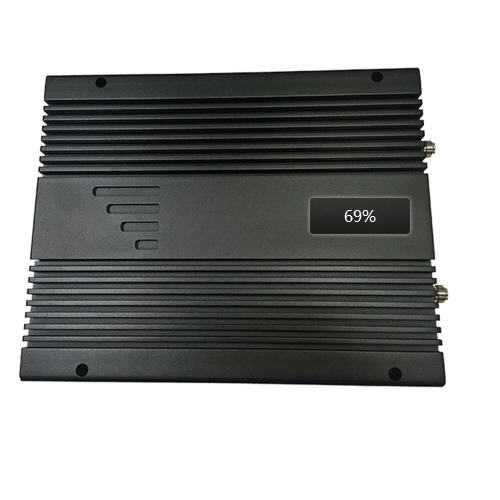

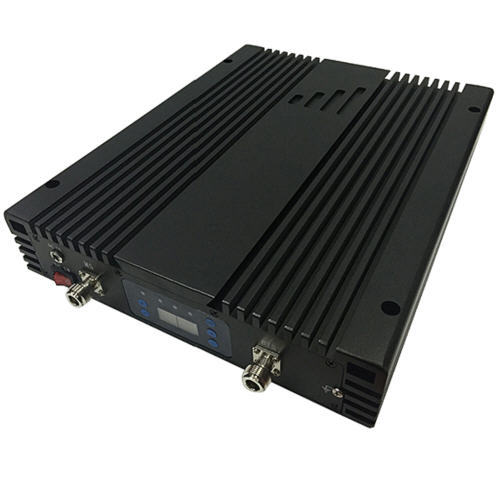

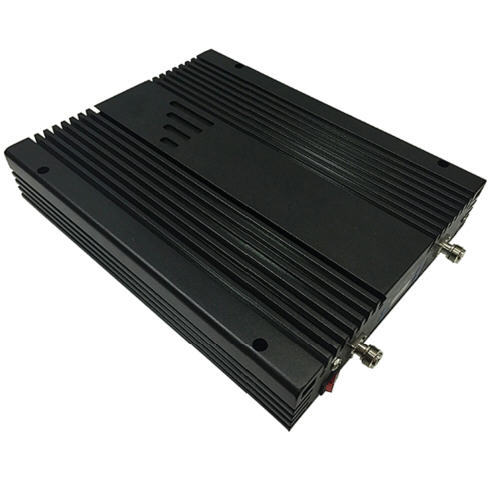

10dBm Five Band Signal Repeater加长黑

Item No.: 00042
*2G/3G/4G Voice And Data Signal
*Coverage: up to 300 m²
Description Specifications Installation
Description

Model: GW-10-5B

GW-10-5B Solution is suitable for small
Flat which has 2-4 rooms with 60dB Gain,
It can support ultra wide band including 2G,3G,4G.
And improve your cell phone signal level
In mobile communication, it is inevitable that
macro-cell covere caagnnot cover weak or dead
zones; to use repeater is a good choice in these
areas. These band selective repeaters mainly
applied in covering small blind and weak zones


Advantages:
Smart Function, Intelligent digital mode setting.
Smart function called which can be activated via the front digital panel.
users can adjust gain and choose working band by LED digital panel, This smart function is easier than DIP   Switch,
will set up parameters more fast and more accurate,
It is a simple, safe and effective way.


Product Feature:
Support all 2G,3G,4G bands(5 bands).
Low power consumption, low interference.
Multiple users supported up to 20.
Safety with automatic shutdown function.
Quality metal construction,strong and durable
Good heat dissipation for longevity.
Self-adaptive operating system with powerful CPU
AGC function special for electric fans.
Alarm LED indication.
ALC could limit the output power to ensure stable coverage.
FCC certified.

Specifications




Items

Uplink

Downlink

Frequency Range

LTE17

704 ~ 716 MHz

734 ~ 746 MHz

LTE13

776 ~ 787 MHz

746 ~ 757 MHz

CDMA

824 ~ 849 MHz

869 ~ 894 MHz

AWS

1710 ~ 1755 MHz

2110 ~ 2155 MHz

PCS

1850 ~ 1900 MHz

1930 ~ 1980 MHz

Gain

60± 2dB

60± 2 dB

Output Power

10± 2dBm

10± 2dBm

Ripple

LTE17

≤8 dB

≤8 dB

LTE13

≤8 dB

≤8 dB

CDMA

≤8 dB

≤8 dB

AWS

≤8 dB

≤8 dB

PCS

≤15 dB

≤15 dB

Max. Input Power Without Damage

 -10 dBm

-10 dBm

Spurious Emission

9KHz~1GHz

≤-36 dBm

≤-36 dBm

1GHz~12.75GHz

≤-30 dBm

≤-30 dBm

ALC Active 20dB

≤2 dB

≤2 dB

Alarm

ALC not Active

-

Green

ALC Active 5~10dB

-

Orange

ALC Active 15~20dB

-

Red

Self-oscillation

-

Red Flashing(UL OFF)

Time Delay

≤0.5 μs

≤0.5 μs

Power Supply

DC:5 V

Power Consumption

< 20 W

 RF Connector

N-Female

Weight

< 2kg

Environment Conditions

IP40

Humidity

< 90%

Operating Temperature

 -10ºC ~ +55ºC

Installation

The booster is fixed onto the wall through expansion bolts.
A.  Drill holes on the targeted place and install expansion bolts.

B.  Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.
C. Place the booster on and fasten it.

D. Connect cables and power cables to the booster respectively.

E. After installing the booster as described above, power on the booster to check the operation status.
27dBm GSM 900MHz Cell Phone Signal Booster for House (GW-27G)

27dBm GSM 900MHz Cell Phone Signal Booster for House (GW-27G)
Connection
A.  BTS Port: donor antenna cable is connected with Outdoor Port;
B.  MS Port: service whip antenna is connected with Indoor Port;
C.  DC IN: connected with Power adaptor.
