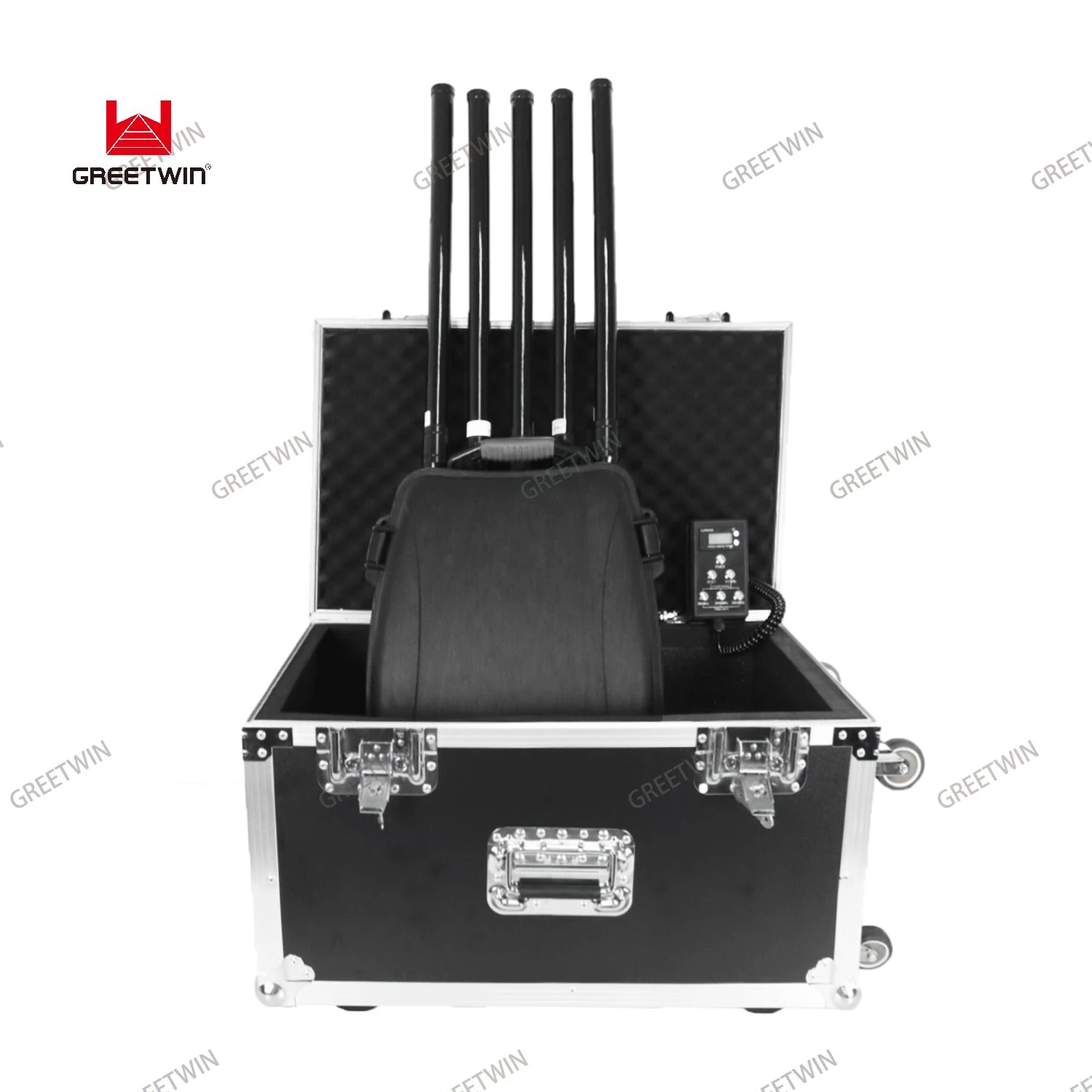

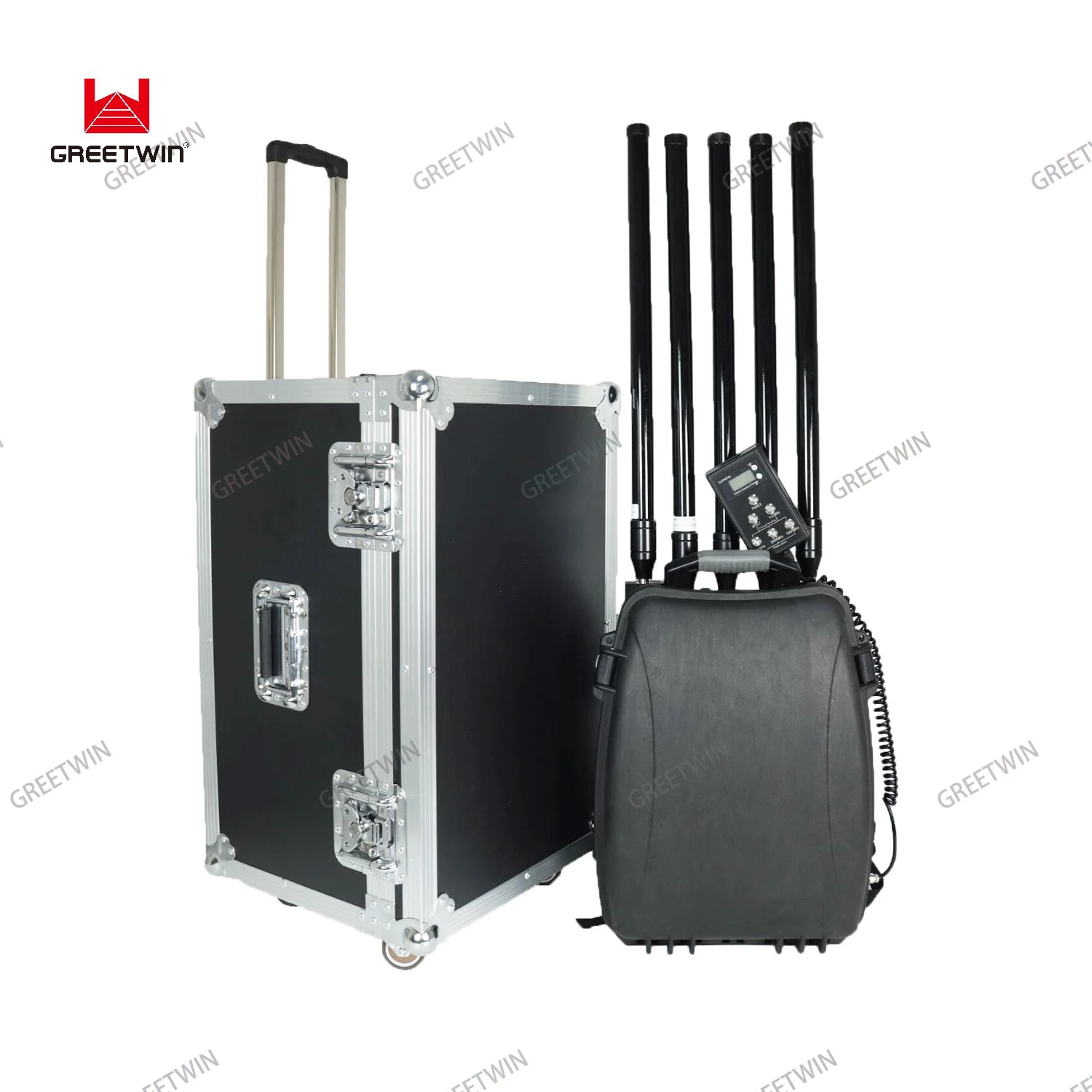

1.5Km High Power Manpack 5 Channel Anti Drone System Jammer
Backpack drone Jammer is the ultimate anti-drone solution. It is safe, simple to operate ,and can be used for houses, offices, airports, or important places easily. The device uses focused electronic countermeasures to block the drone's control, GPS, and video signals while minimizing the impact on other local devices. It comes with Omni directional antennas to disrupt 5 frequencies used by the majority of commercial drones. With a radius range of up to 1.5km. With multiple power outputs, the operator can choose if they want the drone to return to home or land. The device UAV Drone Jammer does no harm to the drone or its operator.

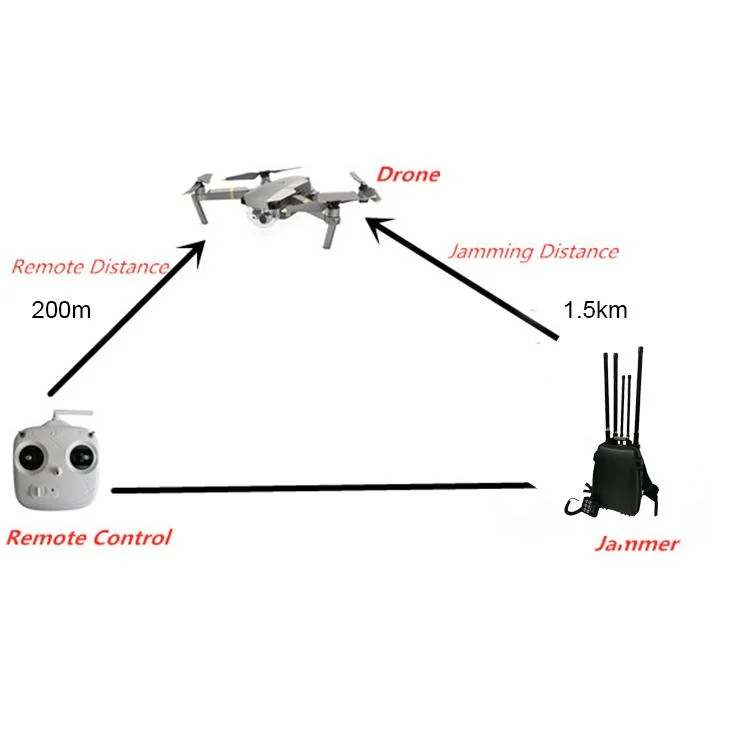

Most commercial drones use 2.4GHz or 5.8GHz for their control and video transmission frequencies.
The UAV jammer Drone jammer disrupts these frequencies meaning that the drone's operator will be unable to see the video coming from the drone. The drone then returns to its home location.
Product Information2.4G/5.8G Wifi Signal Jammer Application:Mainly applied to prisons, airports, scientific research centers, detention houses,
interrogation rooms, courthouses, labor camp, all kinds of important places, etc. that forbid aerial photography by use of UAV.GPSL1/L2 Signal Jammer Features:1. High integration & Stable operation, Noise technology.
2. Highly effective power & long jamming distance up to 1.5KM.
3. Separate control of each module, convenient operation.
4. High-quality tubular radiator, effective in radiating heat.
5. Import components, VSWR protection, Overheat protection
6. No interference to nearby frequency bandsParameter:
| Channel |
Working Frequency |
Output Power(±1dB) |
| 433MHz |
433MHz |
46 dBm(40W) |
| WIFI 2.4G |
2400-2500MHz |
46 dBm(40W) |
| WIFI 5.8G |
5700-5900MHz |
44 dBm(25W) |
| GPS L1 |
1570-1620MHz |
46 dBm(40W) |
| GSM900MHz |
915MHz |
46 dBm(40W) |
| Total output power |
185W |
| Power consumption |
350W |
| Power supply |
AC90-260V, DC24-28V |
| Main engine weight |
16.8KG |
| Size |
350×190×490mm |
With directional panel antenna 10-12dBi (jamming range 1.2km-1.5km)
or Omni antenna 7dBi (jamming range 600-800m) |
| Jammer Module Number |
5 |
| Cooling System |
Systematic Smart Cooling System |
| Jamming Source |
Noise Technology |
| Humidity |
30%-95% |
| Running temperature |
-20ºC to +70ºC |

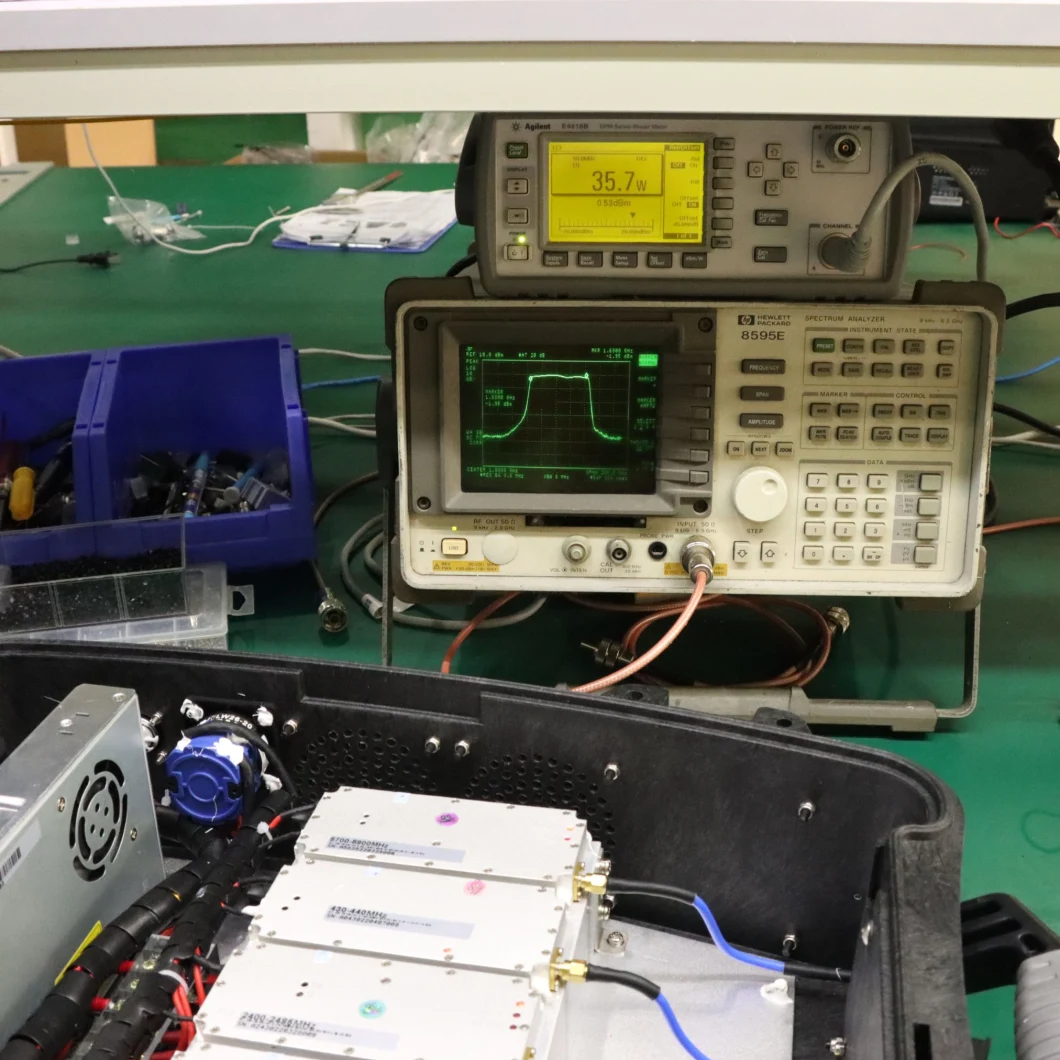

Frequency Testing Again Before Shippment:
