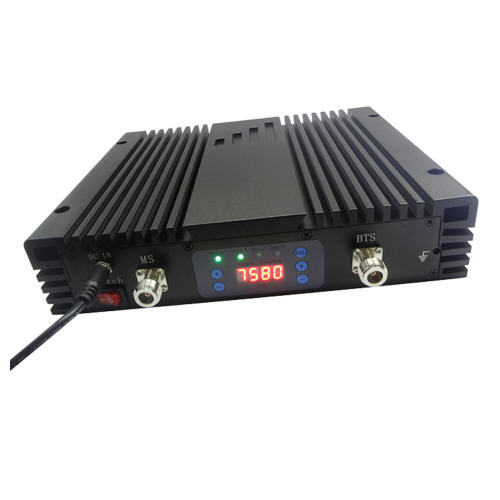

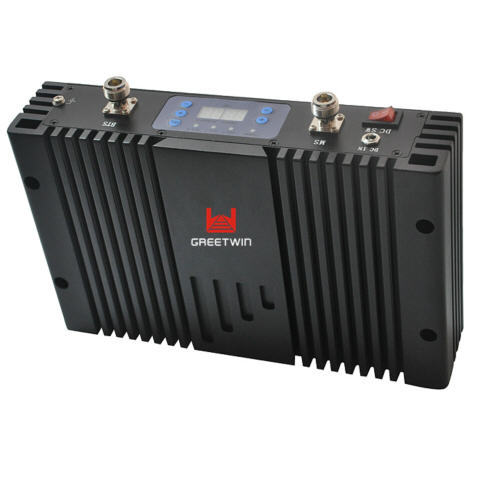

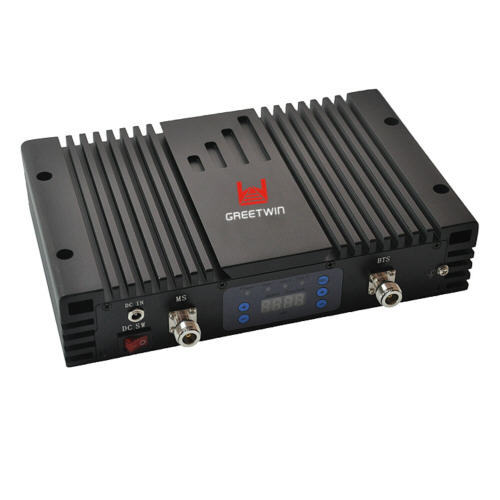

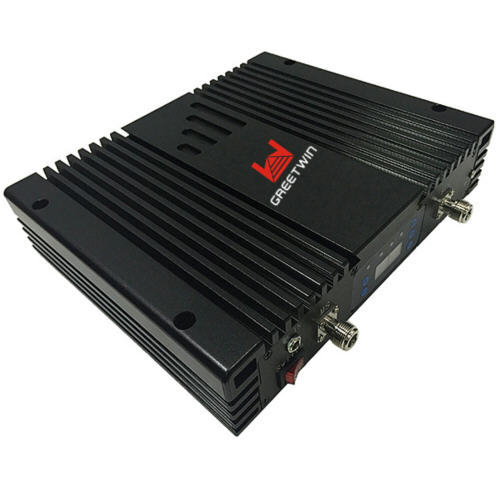

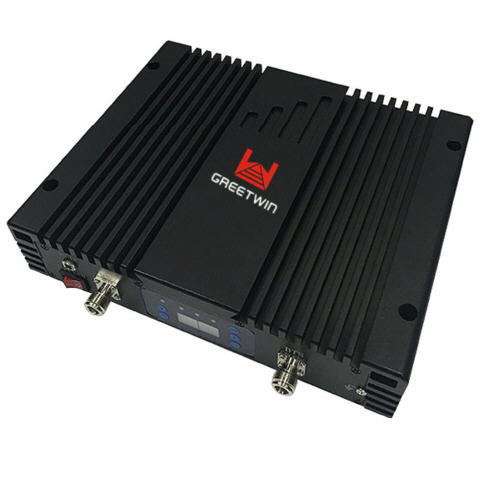

Model: GW-30LAL
Line Amplifiers are specially designed to assist the Base Station (BTS) or Repeaters to compensate the system loss from in-building distributing cable, power splitter and directional coupler and extend in-building signal coverage, and improve flexible of in-building signal coverage system design
To meet the field strength requirements of in-building signal coverage system.
Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.
3. Support any cellular devices (voice & data & video)
4. High linear design, ALC function design, low interference to BTS.
Standard Package:
1) AC90-264V, DC9V/5A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
To expand signal coverage of fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, etc.
| Frequency Range | Uplink | Downlink | |||
| LTE 4G 2600 | 2500-2530MHz | 2620-2650MHz | |||
| Max. Gain | 30dB | 35dB | |||
| Max. Output Power | 0dBm | 30dBm | |||
| Band width | Wide Band | ||||
| Manual Gain Control | 31dB / 1dB Step | ||||
| Automatic Gain Control | >30dB | ||||
| Ripple in-band | ≤ 3dB | ||||
| Return loss | ≤ -10dB | ||||
| Noise Figure | ≤ 5dB | ||||
| Spurious Emission &Intermodulation |
9KHz~1GHz | ≤ -36dBm | |||
| 1~12.75GHz | ≤ -30dBm | ||||
| WCDMA | Spurious Emission Mask | Meet 3GPP TS 25.143 ( V 6.2.0 ) | |||
| Modulation Accuracy | ≤ 12.5% | ||||
| Peak Code Domain Error | ≤ -35dB@Spreading Factor 256 | ||||
| Time Delay | ≤ 1.5 μs | ||||
| Frequency stability | ≤ 0.01ppm | ||||
| MTBF | > 50000 hours | ||||
| Power Supply | AC100-240V,DC9V/5A | ||||
| Power LED | Power indicator | ||||
| Alarm LED | Red | Autoexcitation or High Power | |||
| Green | Standard | ||||
| Mechanical Specification | |||||
| RF Connector | N-Female | ||||
| Switch | Power Switch\Manual Gain Control Switch | ||||
| Cooling | Heatsink Convection cooling | ||||
| Impedance | 50 ohm | ||||
| Humidity | < 90% | ||||
| Operating Temperature | -10°C~55°C | ||||
| Environment Conditions | IP40 | ||||
| Size | 268mm*58mm*189mm | ||||
| Weight | < 4.5Kg | ||||
