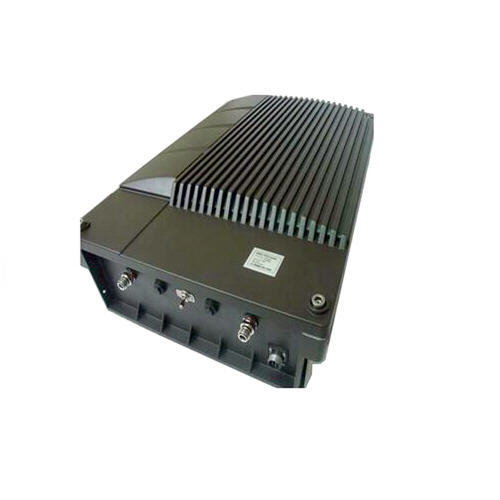

33dBm-43dBm GSM 900MHz Digital Repeater Signal Booster (GW-43DRG)

Item No.: 00059
Description Specifications

· Aluminum-alloy IP65 casing has high resistance to dust, water and corroding;
· High gain linear power amplifier technique with reliable performance
· In-built AGC & ALC function be able to ensure easy installation without setting.
· Compact size and light weight, easy to install on wall or pole
· Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink
· Support SNMP and Web-based GUI.
· RS232 or RJ45 ports provide links to laptop for local setting and monitoring by built-in web interface.
· Built-in wireless modem (Option) for remote monitoring by SMS, GPRS or TCP/IP.
· Details repeater parameters and status can be monitoring by built-in web interface, such as RSSI, temperature, output power level, gain, ATT, return loss, VSWR etc.

Digital Repeater is a new kind of RF Repeater that is adopting DSP (Digital Signal Processing) technology basis on FPGA platform, highly linear components and unparalleled innovative DSP filtering provide top level performance. Digital Repeater can be selected as Band Selective or Channel Selective operation mode, which supports up to 12 channels both on uplink and downlink. Using an advanced ALC mechanism, each one of the channels has an individual gain and ALC setting.

To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, highways
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.


GSM Uplink Downlink
Frequency Range 880 – 900 MHz 925 – 935 MHz
Repeater type Digital Filter Repeater (DFR), minimum 3 sub slot band
Maximum Gain 98dB 98dB
Auto Gain Control(AGC) ≥40dB
Auto Gain Setup Range(Inside) 31dB/1dB step
Gain Flatness ≤4dB(P-P)
Output Power  33dBm±1dB 43dBm±1dB
Out of Band Gain ±400KHz < 50dB
±600KHz < 40dB
±1MHz < 35dB
±5MHz < 25dB
Intermodulation Products 9KHz~1GHz ≤-50dBC
1GHz~12.75GHz ≤-30dBm
Spurious Emission 9KHz~1GHz ≤-36dBm
1GHz~12.75GHz ≤-30dBm
Noise Figure ≤5dB
Max. Input Power Without Damage ≥0dBm
VSWR ≤1.4
Group Delay ≤8μs
Power Consumption ≤50W
Power Supply AC90-260V
2. Mechanical specification
Dimensions 600*445*186mm
Weight ≤45Kg
I/O Connector/ Impedance N-female
3. Environmental specification
IP Rating IP65
Operating Temperature -25 ~ 55°C
4. Monitoring specification
1. NMS
2. Automatic gain control
3. Intelligent mode setting
4. Low interference
5. Prevent the oscillation
6. Cost-effective for practical solutions
7. Support MGC
