Product Feature:
1. Wide band, high gain and Low VSWR.
2. High quality Aluminum Alloy material.
3. Good Environmental Adaptability.
4. With the Cable leads.
5. Can be horizontal or Vertical installation
Applications:
1. Mobile Communication Network Optimization and Indoor distribution system
2. Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio
| ELECTRICAL | |

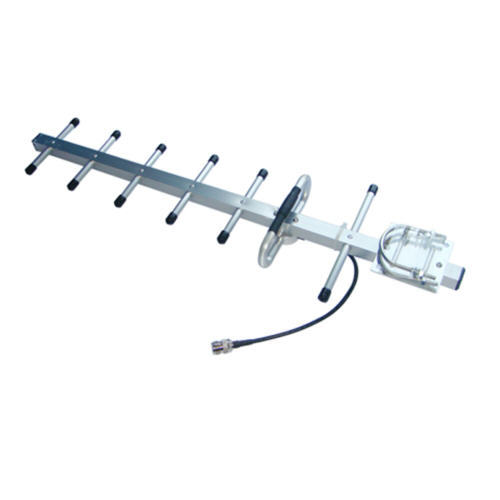

| Model | GW-YAGI450-11d |
| Frequency Range | 450-470-MHz |
| Bandwidth | 20-MHz |
| Gain | 11-dBi |
| Beamwidth | H: 44- °E: 40- ° |
| F/B ratio | ≥15-dB |
| VSWR | ≤1.5 |
| Polarization | Horizontal or Vertical |
| Max power | 100 –W |
| Nominal Impedance | 50 –Ω |
| MECHANICAL | |
| Connector | N female or customized |
| Dimension | 0.83-M |
| Weight | 1-KG |
| Element | 6 |
| Material | Aluminum Alloy |
| Rated Wind Velocity | 60-m/s |
| Mounting Kits | U bolts |
