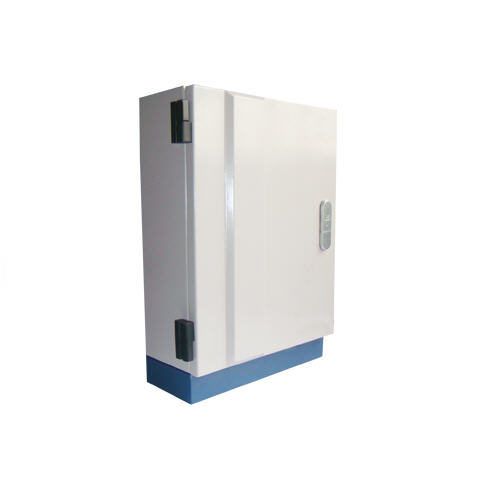

Model: GW-36FOR-G

1、Product Overview

Greetwin  Fiber Optic Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than setup a new Base Station (BTS). Main operation of RF Repeaters system: For the down link, signals from BTS is fed to Master Unit(MU), the MU then convert RF signal to laser signal then feed to fiber to transmit to Remote Unit(RU). RU then convert laser signal to RF signal, and use Power Amplifier to amplify to high power to IBS or coverage antenna. For the up link, Is a reverse process, signals from user mobile is fed to MU’s MS port. Via duplexer, the signal is amplified by low noise amplifier to improve signal strength. Then the signals is fed to RF fiber optical module then converted to laser signals, then the laser signal is transmit to MU, the laser signal from RU is convert to RF signal by RF optical transceiver. Then the RF signals are amplified to more strength signals fed to BTS.

Features:
◇ High level, high availability, convenient for maintain;
◇ Internal adopt intelligent monitoring, is convenient to locate the faults for maintain;
◇ Low power consumption, excellent heat dissipation;
◇ High linearity PA, high system gain;
◇ Local and remote monitoring (optional) with automatic fault alarm &remote control;
◇ Compact size, flexible for installation and relocation;
◇ Weatherproof design(or Indoor Case) for all-weather installation;
◇ One MOU can support Max 8 ROUs, Save cost and ease installation.


2、Application Diagram and Working Principles

2.1、Application Diagram




2.2、Working Principle Diagram



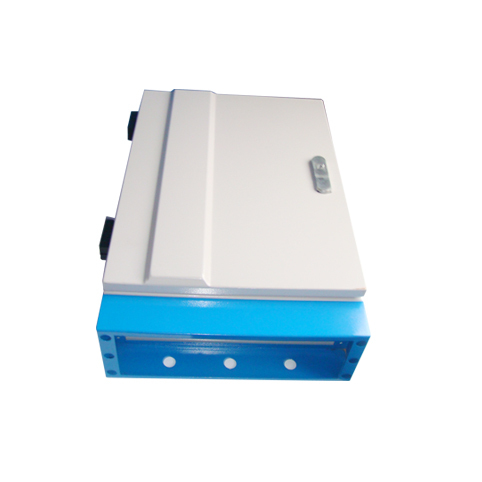

2.3、Equipment Picture

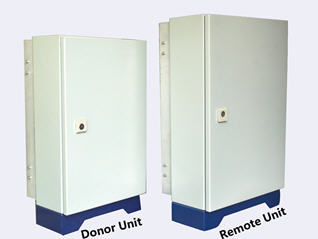

 Donor Unit:

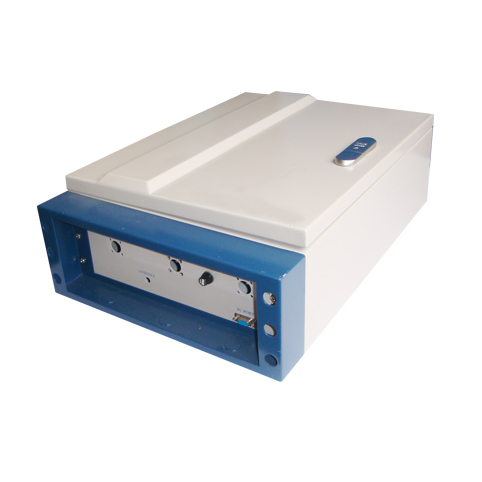

1、OP1,OP2,OP3,OP4: Relay;Connect with Remote Unit;
2,  BS:Connect with Donor Antenna;Connector: N ;
3、RS232:Local Control Function;

Remote Unit:


1. BS/OP1:Transmit
2. MS:Connect with Service Antenna;Connector: N
3. RS232:Local Control Function


Technical Specification


3.1 Master Unit(MU) Technical Specification


Items

Testing Condition

Technical Specification

Memo

Downlink

Uplink



Frequency Range

Working in-band

890-915MHz

935-960MHz



Bandwidth

Working in-band

25MHz



Output Power

Working in-band

-

0dBm



Max RF Input level

Working in-band

-30dBm

-



Min RF Input level

Working in-band

-110dBm

-



Max RF input without damage

Working in-band

10dBm

-



Noise Figure

Working in-band

≤5dB

-



VSWR

Working in-band

≤1.5



Time Delay

Working in-band

≤12.0μs



Spurious Emission

9kHz-1GHz

BW:30KHz

≤-36

≤-36



1GHz-12.75GHz

BW:30KHz

≤-30

≤-30



Connector



N-Female



Optical Specifications

Optical Output Power



-8dBm±2dB

-



Optical Max Input power





+4dBm



Optical Min Input power





+0dBm



Optical Input damage level





+10dBm



Optical length



DL: 1310nm, UL: 1550nm



Optical Loss



≤10dB /Includes the loss of the optical splitter



Optical Connector



FC/APC(WDM, one core)



Nos Of Optical Ports



1-4



Power Supply and Mechanical Specifications

Power Supply



AC220V±60V,45~55Hz



Dimension



530mm*310mm*190mm



Weight



19kg



Max. Power Consumption



150W



Operating Temperature



-5~+45℃



Operating Humidity



≤85%



Environmental Class



IP65



RF Connector



N-Female, 50ohm



MTBF



≥50000 hours



Monitor Interface



Local Monitor: Remote Monitor: RS232 ,GSM/UMTS MODEM

Option

Alarm Type



No Power, Over Temperature, RU Failed





3.2 Remote Unit Technical Specification

Items

Testing Condition

Technical Specification



Downlink

Uplink



Frequency Range

Working in-band

890-915MHz

935-960MHz



Bandwidth

Working in-band

25MHz



Output Power (Max.)

Working in-band

+36±2dBm

-



Max Input without damage

Working in-band

--

+10dBm



Max Input RF level

Working in-band

--

-30dBm



Min Input RF level

Working in-band

--

-110dBm



Noise Figure

Working in-band

--

≤5dB



Gain Adjustable Range/Step

Working in-band

≥25dB/1dB



Gain Adjustable Error

Working in-band

Gain adjustable range is 0~20dB, error≤1dB; ≥21dB, error≤1.5dB



Ripple

Working in-band

≤3dB in bandwidth



ALC

Working in-band

When adding ≤10dB at max. Output level, output variation ≤±2dB, When adding >10dB, output variation ≤±2dB or be off.



VSWR

Working in-band

≤1.5



Time Delay

Working in-band

≤12.0μs



Spurious Emission

9kHz-1GHz

BW:30KHz

≤-36

≤-36



1GHz-12.75GHz

BW:30KHz

≤-30

≤-30



Optical Specifications

Optical Output Power



0~3dBm



Optical length



DL: 1310nm, UL: 1550nm



Optical Loss



≤10dB /Includes the loss of the optical splitter



Optical Connector



FC/APC(WDM, one core)



Optical Max input power



+4dBm



Optical Min input power



+0dBm



Optical input power without damage



+10dBm



Power Supply and Mechanical Specifications

Power Supply



AC220V±60V,45~55Hz



Dimension



530mm*310mm*190mm



Weight



19kg



Max. Power Consumption



200W



Operating Temperature



 -25~+55℃



Operating Humidity



 ≤95%



Environmental Class



 IP65



RF Connector



N-Female, 50ohm



MTBF



≥50000 hours



Monitor Interface



Local Monitor: Remote Monitor: RS232 ,GSM/UMTS MODEM



Alarm Type



No Power, PA Failure, VSWR, Over Power, Over Temperature





3.3.MOU+ROU Whole System Technical Specification

Items

Testing Condition

Technical Specification

Memo

uplink

downlink

Frequency Range

Working in-band

890-915MHz

935-960MHz



Bandwidth

Working in-band

25MHz



Output Power (Max.)

Working in-band

0dBm

+36±2dBm



ALC(dB)

Input add 10dB

△Po≤±2



Max Gain

Working in-band

90±3dB

90±3dB

@10dB optic path loss

Gain Adjustable Range(dB)

Working in-band

≥30




Gain Adjustable Linear(dB)

10dB

±1.0



20dB

±1.0



30dB

±1.5



Ripple in Band(dB)

Effective Bandwidth

≤3



Max.input level

Continue 1min

-10 dBm



Delay(us)

Working in-band

≤12



Noise Figure(dB)

Working in-band

≤5(Max.gain)



Spurious Emission

9kHz~1GHz

≤-36dBm/100kHz



1GHz~12.75GHz

≤-30dBm/1MHz



Port VSWR

BS Port

≤1.5



MS Port

≤1.5



Installation

4.1 Installation Location Choice Principle:

▲Installed in the irrelevant personnel not easy contact place; And easy to the power supply and decorate place;
▲Have cable feeder,it’s convenient opening fiber connection;
▲The installation location should avoid heat source and damp;
▲The installation location should be well ventilated.Need to vertical hang it on a wall or a mast, in order to ensure that the heat dissipation.When hanging, need to consider from the top≥ 50 cm and distance from the bottom ≥100 cm ;

4.2 Optical Fiber Connection

Optical fiber connectors should adopt type of FC/PC, in general it with black protection cover and corresponding to light adapter.Please with instruments cleaning detergents to spray when connecting. In order to avoid besmirch influence light way transmission, increase the light path insertion loss.Please follow the image when joining: plug the bolt aim at key slot (as per image),tighten up after plug: can not too tight or too loose. Otherwise, it will affect the loss of the optical connector.


P.S:The optical cable don’t crimp, need cover by good protection.

4.3 RF Coaxial Cable Connection

Donor Antenna & Service Antenna connect with RF Cable, connection as per image:

5、Equipment Control  Function

5.1 Set up the parameters of system

Relate to the RF index of the system, set up the parameters of the system、inquiry and the real-time display the alarm information. Can through the Local Control & Remote Contro, anytime, anywhere to operate and maintain the equipment.
Local Control: can through RS232 Port connect to the port of computer which setup the local monitor.
Remote Control: can use the Modems with SIM card through Message to set up the parameters.
The parameters of the system usually included Channels、Output Power、Gain、Time delay etc. and the alarm functions. The above parameters can be optimized according to the relevant requirements and the practical used effect.
