1.Main Device *1

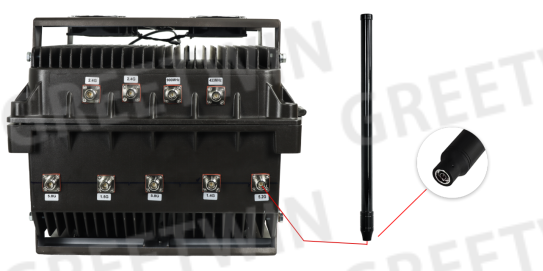

2.Omni Fiberglass Antenna of jammer *9pcs
3. Detection Antenna *2pcs
4.Network Cable *1
5.Power Supply Cable *1
6. Laptop *1
II. Feature:
- Detection range 1-5 km, Jamming range: 1-3km.
- It can detect more than 10 drones at the same time;
- Counter multiple targets at the same time;
- Monitor the surrounding drone signals in real time and detect drones in advance;
- Work modes: unattended and manual.
V. Drone detection introduction
The UAV detection module is used as a UAV detection and processing platform for UAV detection and identification. Its principle is based on spectrum sensing and artificial intelligence technology to identify and classify the UAV's flight control link and image transmission link.
1. Features
1) Small and light, easy to install;
2) Passive detection, no electromagnetic environmental pollution, environmentally friendly;

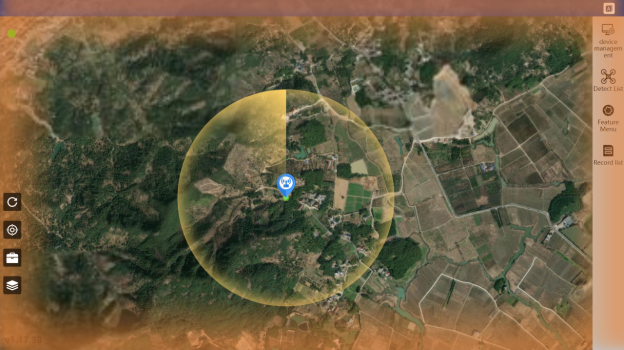

3) Real-time detection of UAV signals in the environment, and early warning of UAV intrusion;
4) Modular design, strong scalability and independent operation

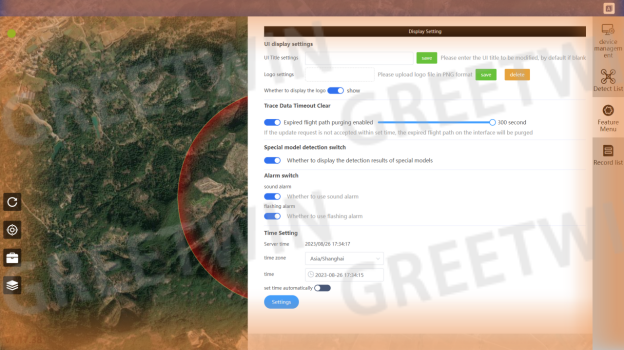

6) The sensitivity, attack duration and RTC time of the device can be configured and queried;
7) Output signals to control the countermeasure equipment, and can control the duration of signal transmission, so as to ensure the continuous strike time of the countermeasure equipment;
8) When the equipment fails, the corresponding error code will be displayed to remind the user of the cause of the error, so as to quickly troubleshoot.
2. Specification:
| Number |
Index |
Parameter |
Notes |
| 1 |
Detect drone types |
DJI series drones, traversing drones, and DIY image transmission drones |
|
| 2 |
Detection frequency band |
860-930MHz , 1.2G,1.4GHz,2.4GHz,5.2GHz, 5.8G |
|
| 3 |
Detection distance |
distance(m) |
Antenna gain(dBi) |
The target aircraft is DJI MAVIC air2 |
| 1-5km |
3-5 |
| 4 |
Volume |
167mm*83mm*42mm(L*W*H) |
|
| 5 |
Weight |
(500±5)g |
Without antenna |
| 6 |
Protection level |
IP40 |
|
| 7 |
Working temperature |
-20 ~ +60ºC |
|
| 8 |
Identify response time |
≤5s |
|
| 9 |
Supply voltage range |
9-36V |
|
| 10 |
Power dissipation |
5.5±0.5W |
|

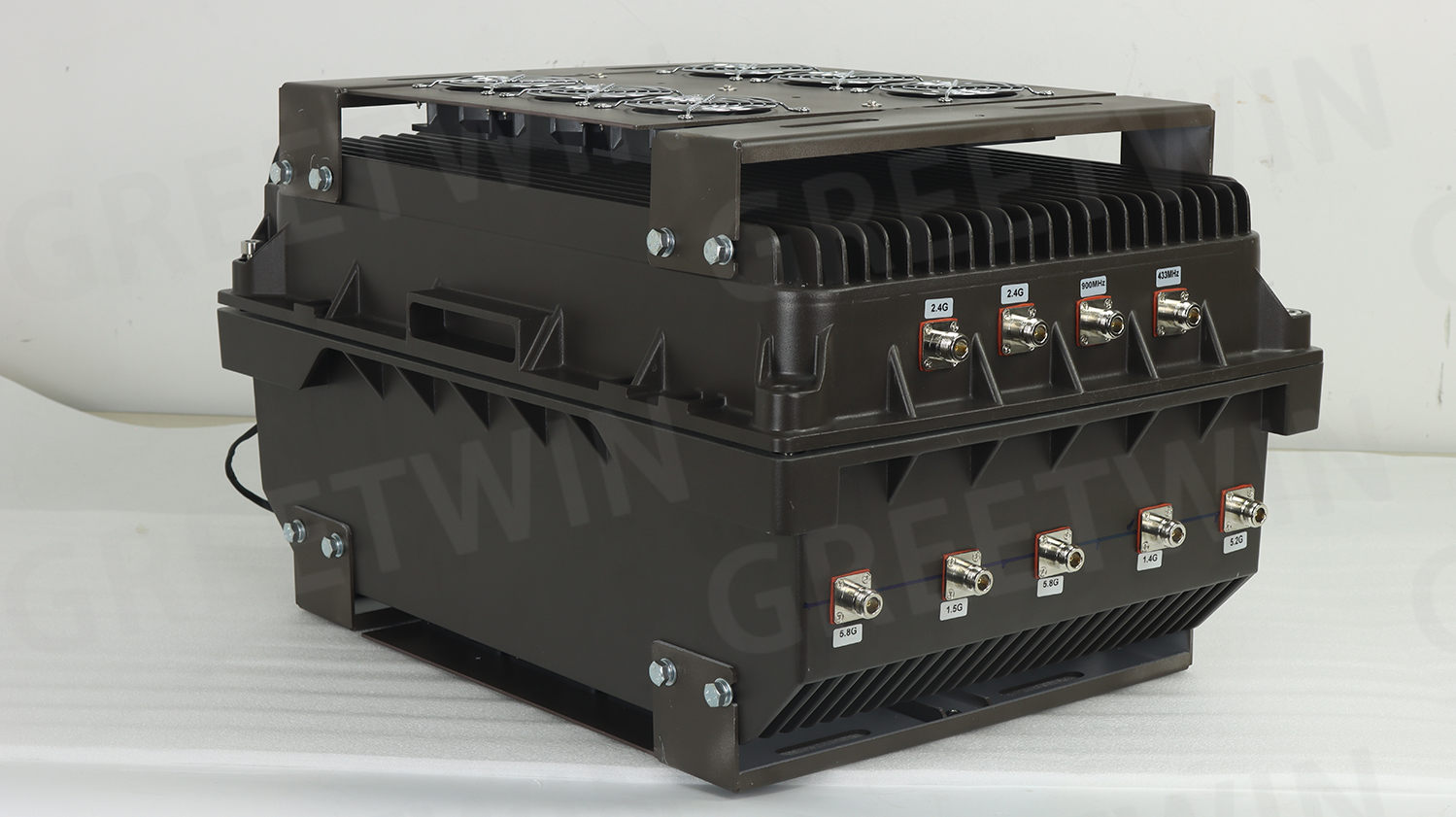

VI. Drone Jammer introduction

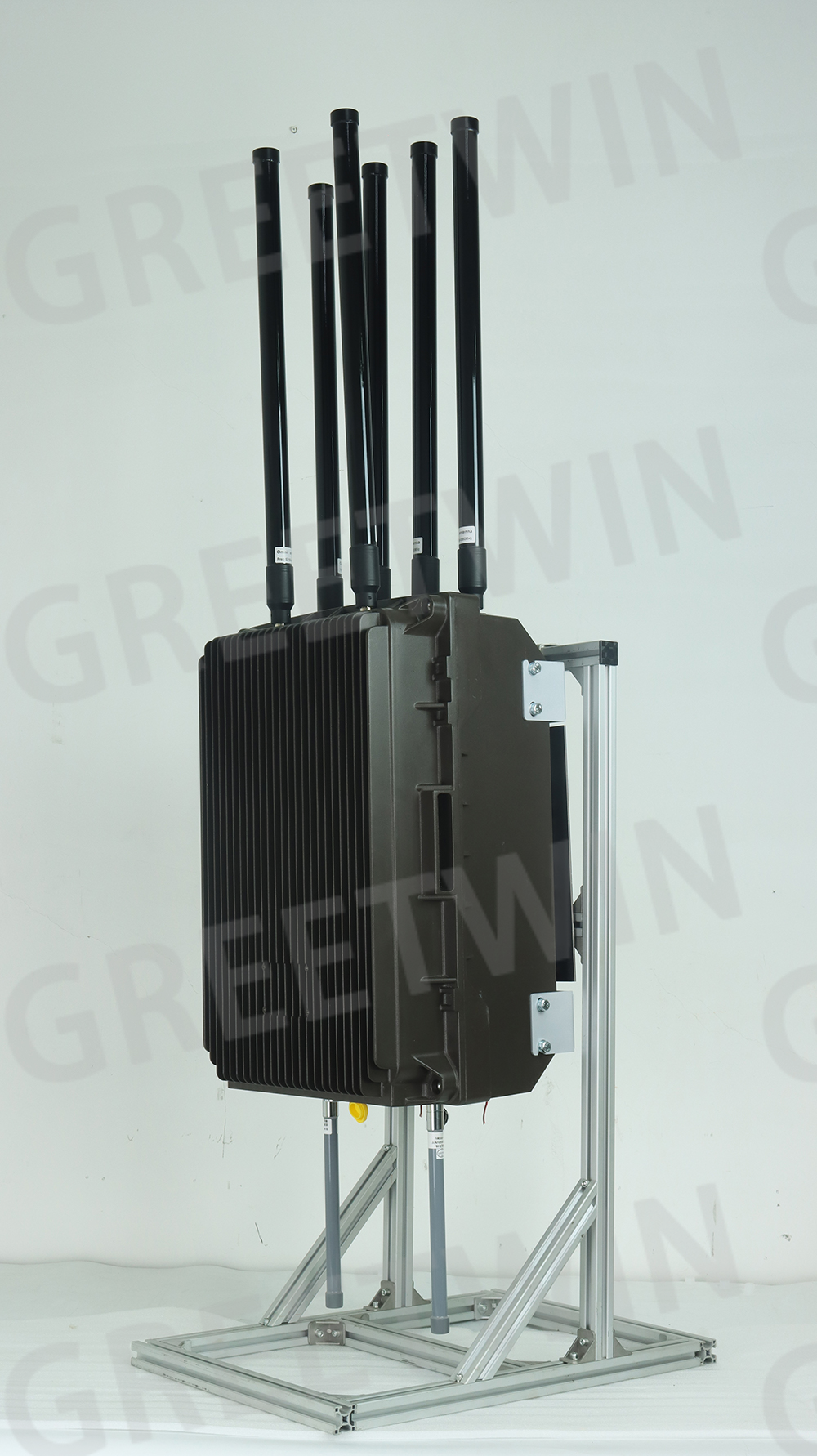

Drone Jammer is the ultimate outdoor anti-drone solution. It's safe, simple to operate and can be installed at houses, offices, airports or important places easily. The device uses focused electronic counter measures to block the drone's control, GPS and video signals while minimizing the impact on other local devices. It comes with Omni directional antennas to disrupt 7 frequencies used by the majority of commercial drones. With a radius range of up to 3 km. With multiple power outputs the operator can choose if they want the drone to return to home or land. The device does no harm to the drone or its operator. Most commercial drones use 2.4GHz or 5.8GHz for their control and video transmission frequencies.
Technical Parameters:
| Channel |
Working frequency |
Output power(±1.5dBm) |
| 2.4G |
2400-2500MHz |
51dBm (100W) |
| 2.4G |
2400-2500MHz |
47dBm (50W) |
| 5.8G |
5725-5850MHz |
47dBm (50W) |
| 5.8G |
5725-5850MHz |
47dBm (50W) |
| GPS L1 |
1550-1620MHz |
47dBm (50W) |
| 5.2G |
5150-5350MHz |
47dBm (50W) |
| GPS L2 |
1170-1280MHz |
47dBm (50W) |
| 900 |
868-930MHz |
47dBm (50W) |
| remote |
433MHz |
47dBm (50w) |
| Total 9 band, output power:500W |
| Power Consumption : 1000W |
| Power supply: AC220V, DC24-28V |
| Main engine weight : 45Kg |
| Size: 513×462×233mm |
