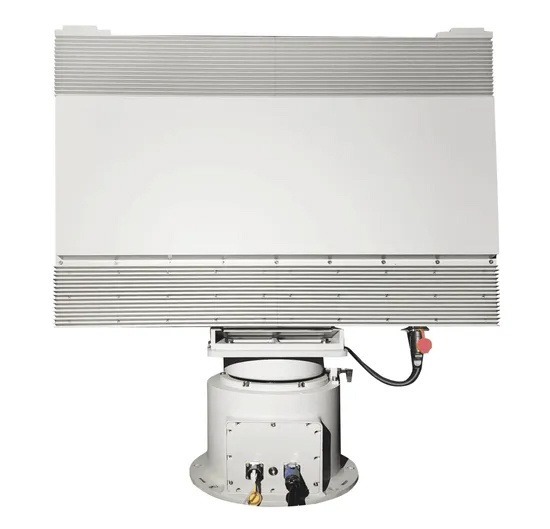

5-10km X Band Long Distance Surveillance Radar for Detect Vehicles/Pedestrians/Drones/Vessels

Product features:

 High real-time and high precision: Capable of maintaining high-precision tracking for

long-distance detection targets, providing effective judgment basis for border guards

 Strong environmental adaptability: Capable of working 24/7, adapting to harsh

environments such as night, rain, snow, haze, and dust

 High flexibility: Long-distance target detection, easy to set up

 DBF technology: DBF technology transmits multi-beam technology to improve

anti-interference ability

 Phased array system: Adopting advanced active phased array system to improve

radar detection effect, capable of outputting target three-dimensional information

Products parameter

Working system

Phased array system (azimuth scanning + pitch

scanning) pulse Doppler

Working band

X-band

Range of radar

≥6.0km

Effective detection range

100m~5.0km (2s/r) (Drone)

100m~8.0km (4s/r) (Drone)

100m~8.0km (Pedestrian)

100m~10.0km (Vehicle)

100m~15.0km (Vessel)

Azimuth coverage

360°

Elevation coverage

≥40°

Detection speed

1.0m/s~75m/s

Azimuth accuracy

≤0.4°

Pitch accuracy

≤0.5°

Distance accuracy

≤10m

Speed accuracy

≤0.5m/s

Data rate

≥0.5Hz(Antenna speed 30rpm)

Data interface

RJ45/1 channel 100 Gigabit Ethernet

Power input

≤400W (Power consumption) AC200-AC240 (Input)

Working temperature

-40℃~+55℃

Functional Positioning for Advanced Security Monitoring
The 5-10km X Band Long Distance Surveillance Radar is engineered to serve defense, border control, critical infrastructure, and aviation security sectors requiring accurate and continuous surveillance. This radar system provides operators with real-time reconnaissance of vehicles, drones, pedestrians, and vessels within long distances, significantly enhancing situational awareness. Its deployment suits perimeter protection, airspace monitoring around airports, and maritime domain awareness tasks where wide-area detection and classification of multiple target types are imperative for timely threat assessment and operational decision-making.

Technical Features and Performance Specifications
Equipped with a phased-array antenna operating in the X Band, this surveillance radar delivers full 360° azimuth coverage and elevation scanning capabilities, ensuring comprehensive detection within a 5-10km range. The system outputs high-resolution 3D target parameters — including azimuth, range, altitude, and velocity — facilitating advanced tracking and classification of vehicles, drones, pedestrians, and vessels under diverse weather conditions. Its digital beamforming (DBF) technology maximizes anti-interference robustness, while RJ45 and 100 Gigabit Ethernet interfaces allow seamless integration into existing security frameworks with a power consumption below 400W, optimizing operational sustainability.

Industrial Applications and Security Enhancement Value
This radar solution supports a broad spectrum of sectors, including border surveillance, airport management, military installations, port security, and urban event monitoring. By reliably detecting and tracking drones and other moving targets within a 5-10km radius, it empowers operators to enforce airspace regulations and coordinate response efforts efficiently. The system’s capability to identify multiple target classes simultaneously reduces false alarms and enhances threat prioritization, thereby improving response times and resource allocation across complex operational environments.


Product Advantages

Modular System Architecture with Scalable Integration
The radar’s structural design emphasizes modularity and adaptability, featuring a compact phased-array system optimized for long-distance X Band operation. Its mechanical turntable supports continuous 360° azimuth scanning and ≥40° vertical coverage, enabling versatile deployment. The use of standardized data interfaces such as RJ45 and high-speed 100 Gigabit Ethernet ensures straightforward integration with command and control systems. Low power consumption under 400W and rugged hardware design for operation in temperatures from -40°C to +55°C further enhance its suitability for permanent and mobile installations monitoring vehicles, drones, pedestrians, and vessels.

High Precision, Reliability, and Operational Efficiency
Performance-wise, this radar excels in delivering accurate real-time tracking data with update rates ≥0.5 Hz, enabling rapid detection and classification of dynamic targets over medium to long distances. Its robust DBF multi-beam processing effectively mitigates signal interference, providing consistent detection capability in cluttered or complex electromagnetic environments. User-centric design facilitates ease of deployment and maintenance, while the system’s durable build supports continuous 24/7 operation. This results in enhanced operational reliability for security operators who demand sustained surveillance of 5-10km ranges involving vehicles, pedestrians, drones, and vessels.


Product dimension

FAQ

What are the main detection capabilities of the Long Range Radar Drone Detection system?
The radar system delivers high-precision 3D data including azimuth, distance, altitude, and speed for drones, vehicles, pedestrians, and vessels. It operates in the X-band with a long-distance surveillance radar range of over 6 km to support secure, real-time tracking and identification.

Can the Long Range Radar device be customized for specific industrial applications?
Yes, Shenzhen Greetwin Telecom offers end-to-end customization including core components and system integration. This ensures the X band long distance surveillance radar adapts to different environments like borders, airports, and military bases, meeting distinct operational requirements.

How is the radar system installed and integrated with existing security infrastructure?
The device supports flexible integration via standard interfaces such as RJ45 and 100 Gigabit Ethernet. Its phased array design with 360-degree azimuth coverage allows straightforward setup compatible with current security networks to monitor aerial threats continuously.

What maintenance and operational conditions should buyers consider for this radar drone detector?
The system is designed for 24/7 use in harsh conditions (-40℃ to +55℃), including rain, snow, haze, and dust. Regular maintenance focuses on checking power supply efficiency (≤400W) and ensuring mechanical turntable functionality for uninterrupted long-range drone detection and tracking accuracy.
