Description:1: This module with Built-in DDS signal source and PA power amplifier integration.
2: The frequency can be customized according to your requirements. The low frequency is 800-1200 MHz, 1200-1500 MHz, can set 4 sub-band by software. For example, 800-900MHz, can choose 4 sub-band randomly.
3: The monitoring software can control hundreds of modules at the same time.

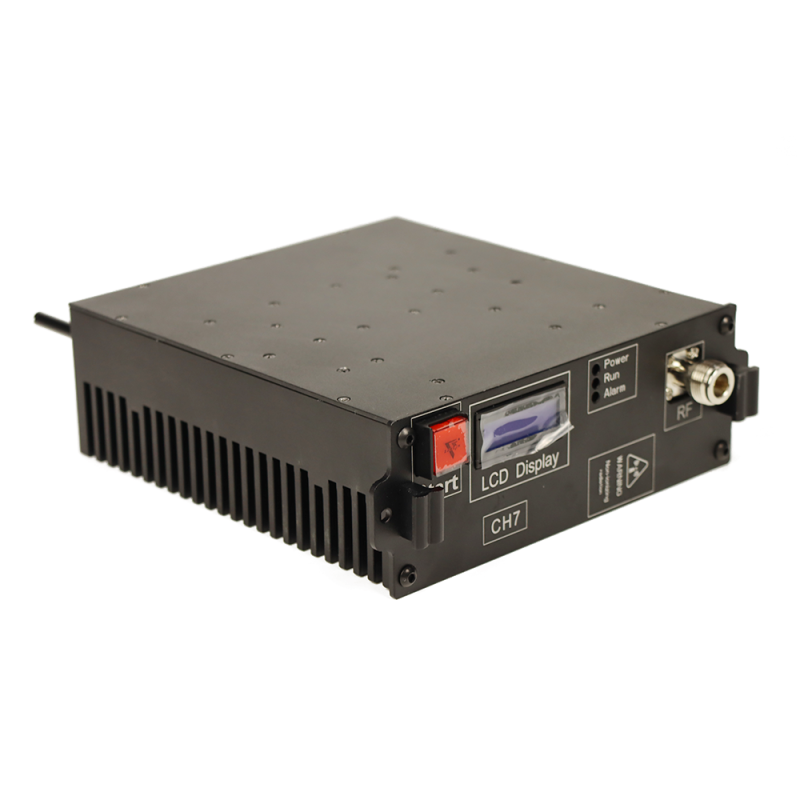

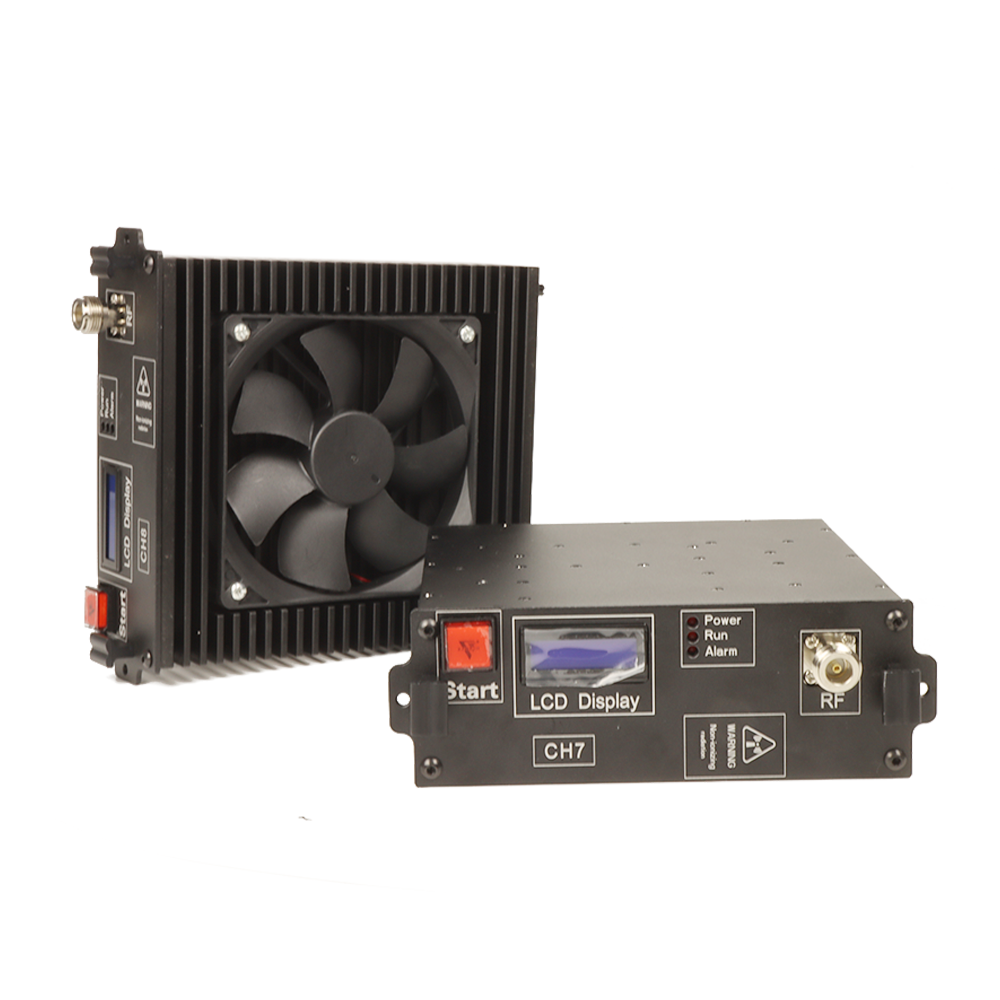

4: The module comes with LCD screen (optional), which can display parameters.
such as frequency, switching status, output power, etc.
5: The software can modify all parameters, address codes, etc., which is suitable for matching the module and antenna on the full machine.
6: Comes with RS485 communication function, can carry out a multi-band network mode, LCD screen will show the detailed specs of full machine. Including each sub-band frequency, output power, current, voltage, temperature and other parameters.
7: With complete control software, can set the frequency point of each sub-band, adjust the output power, switch, etc., get all module data automatically, no need to add modules manually.
| Test Items |
Technical Parameter |
| Power amplifier |
Frequency Range (MHz) |
800-1200MHz |
| |
Frequency Range (MHz) |
1200-1500 MHz |
| |
Frequency Range (MHz) |
1500-1800 MHz |
| |
Frequency Range (MHz) |
1800-2200 MHz |
| |
Frequency Range (MHz) |
2200-2500 MHz |
| |
Frequency Range (MHz) |
2500-2800 MHz |
| |
Frequency Range (MHz) |
2800-3100 MHz |
| |
Frequency Range (MHz) |
3100-3300 MHz |
| |
Frequency Range (MHz) |
3300-3600 MHz |
| |
Frequency Range (MHz) |
3600-4000 MHz |
| |
Frequency Range (MHz) |
4000-4500 MHz |
| |
Frequency Range (MHz) |
4500-5000 MHz |
| |
Frequency Range (MHz) |
5000-5500 MHz |
| |
Output Power(dBm) |
50±1dBm |
| |
Time Delay |
< 1us |
| |
Gain(dB) |
50±1.0 |
| |
Ripple in Band(dB) |
≤2 |
| |
Input VSWR |
≤1.5 |
| |
Output VSWR |
≤1.5 |
| Power Supply |
+28 Vdc@50W/6.5A(According to frequency) |
| RF Connector |
N-50KFD |
| Operating Temperature |
-20~+80ºC |
| Dimension(mm)(Length x Width x Height) |
175mm×164mm×60mm |
| Input Signal Source |
Built-in DDS Signal Source |
| Mode of Communication |
RS485 |
| Cooling |

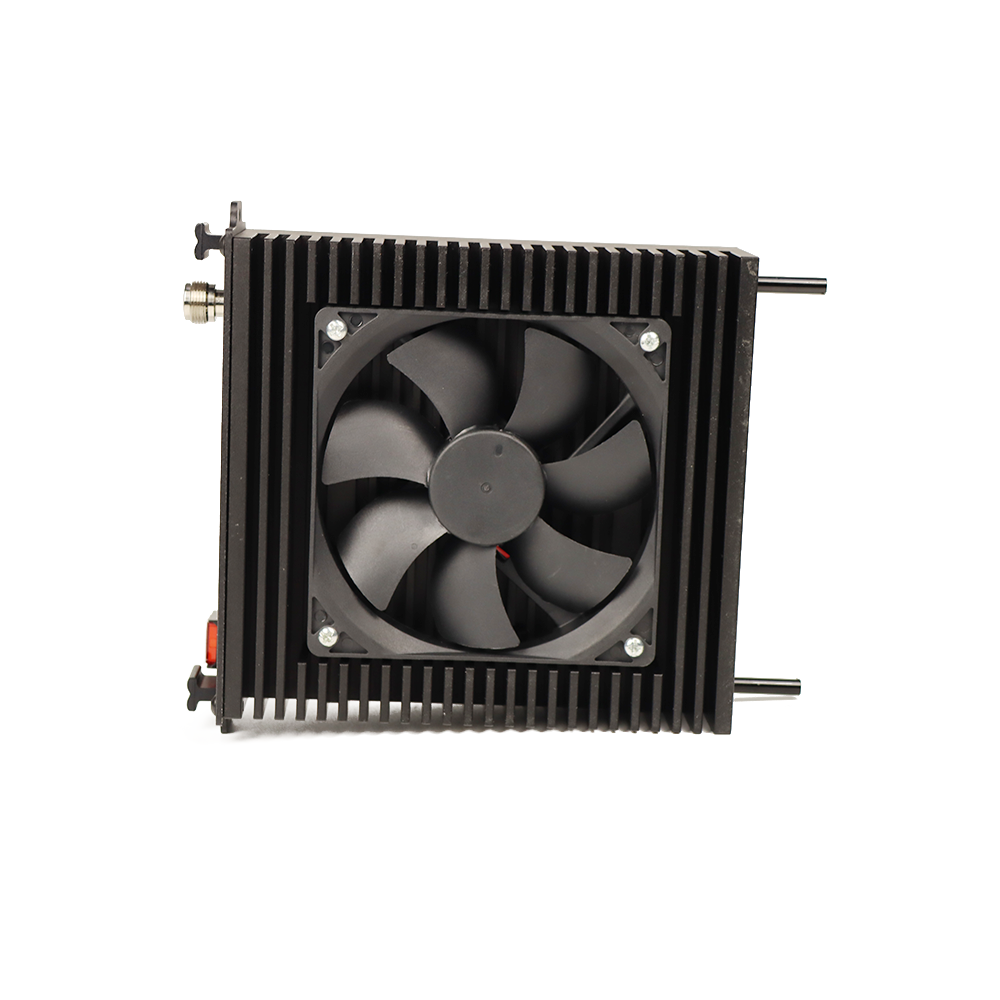

Built-in radiator and fan, can work independently |
