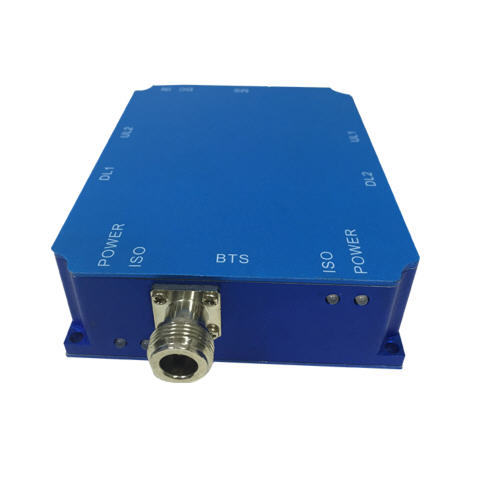

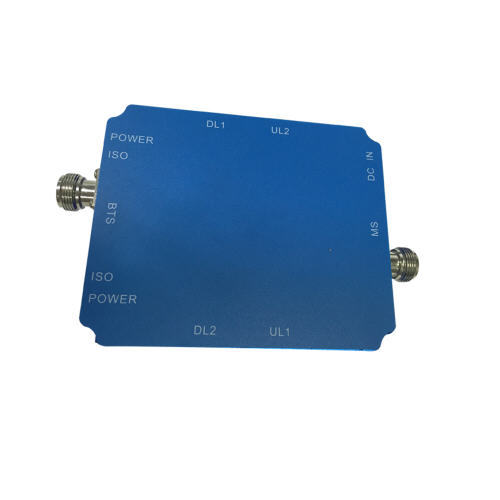

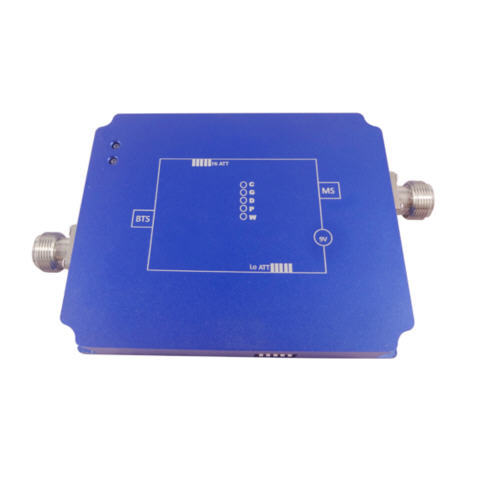

Model:
GW-15LAD
Features:
1. Work with RF repeaters to expand coverage.
2. Dust- proof chassis, prolong equipment lifetime.
3. Reduce cellphone transmit power and radiation, extend cellphone battery life.
4. Low UL noise design, improve repeater sensitivity, keep communication quality.
5. In-built AGC & ALC function be able to ensure easy installation without setting.
6. Compact size and light weight, easy to install on wall or pole
7. High gain linear power amplifier technique with reliable performance
Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.
| Frequency Range | Uplink | Downlink | |
| GSM 900 | 1710-1785MHz | 1805-1880MHz | |
| Max. Gain | 25dB | 30dB | |
| Max. Output Power | 0dBm | 15dBm | |
| Band width | Wide Band | ||
| Automatic Gain Control | >20dB | ||
| Ripple in-band | <=6dB | ||
| Return loss | ≤ -10dB | ||
| Noise Figure | ≤ 6dB | ||
| Spurious Emission & Intermodulation |
9KHz~1GHz | ≤ -36dBm | |
| 1~12.75GHz | ≤ -30dBm | ||
| Time Delay | ≤ 1.5 μs | ||
| Frequency stability | ≤ 0.01ppm | ||
| MTBF | > 50000 hours | ||
| Power Supply | AC100-240V,50/60Hz; DC9V/1A | ||
| Power LED | Power indicator | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Impedance | 50 ohm | ||
| Humidity | < 90% | ||
| Operating Temperature | -10ºC~55ºC | ||
| Environment Conditions | IP40 | ||
| Size | 119mm*32mm*104mm | ||
| Weight | < 1Kg | ||
