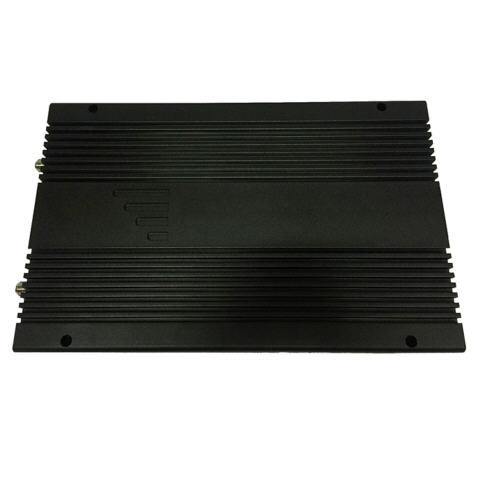

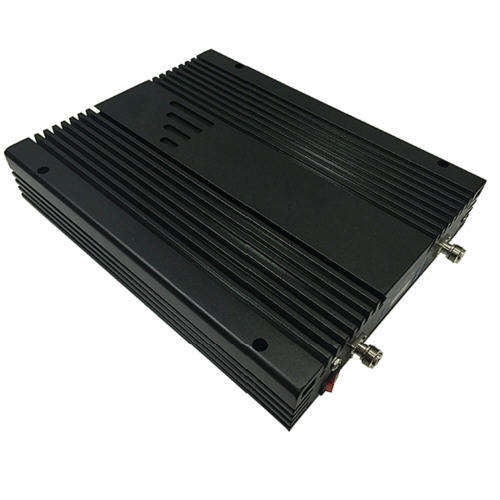

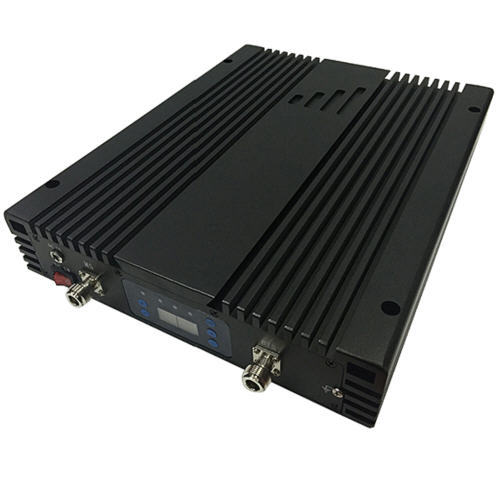

Model: GW-15-5B
GW-15-5B Solution is suitable for small
Flat which has 2-4 rooms with 60dB Gain,
It can support ultra wide band including 2G,3G,4G.
And improve your cell phone signal level
In mobile communication, it is inevitable that
macro-cell covere caagnnot cover weak or dead
zones; to use repeater is a good choice in these
areas. These band selective repeaters mainly
applied in covering small blind and weak zones
Advantages:
Smart Function, Intelligent digital mode setting.
Smart function called which can be activated via the front digital panel.
users can adjust gain and choose working band by LED digital panel, This smart function is easier than DIP Switch,
will set up parameters more fast and more accurate,
It is a simple, safe and effective way.
Product Feature:
Support all 2G,3G,4G bands(5 bands).
Low power consumption, low interference.
Multiple users supported up to 20.
Safety with automatic shutdown function.
Quality metal construction,strong and durable
Good heat dissipation for longevity.
Self-adaptive operating system with powerful CPU
AGC function special for electric fans.
Alarm LED indication.
ALC could limit the output power to ensure stable coverage.
FCC certified.
Items |
Uplink | Downlink | ||
Frequency Range | LTE17 | 704 ~ 716 MHz | 734 ~ 746 MHz | |
LTE13 | 776 ~ 787 MHz | 746 ~ 757 MHz | ||
CDMA | 824 ~ 849 MHz | 869 ~ 894 MHz | ||
AWS | 1710 ~ 1755 MHz | 2110 ~ 2155 MHz | ||
PCS | 1850 ~ 1900 MHz | 1930 ~ 1980 MHz | ||
Gain | 60± 2dB | 60± 2 dB | ||
Output Power | 10± 2dBm | 15± 2dBm | ||
Ripple | LTE17 | ≤8 dB | ≤8 dB | |
LTE13 | ≤8 dB | ≤8 dB | ||
CDMA | ≤8 dB | ≤8 dB | ||
AWS | ≤8 dB | ≤8 dB | ||
PCS | ≤15 dB | ≤15 dB | ||
Max. Input Power Without Damage | -10 dBm | -10 dBm | ||
Spurious Emission | 9KHz~1GHz | ≤-36 dBm | ≤-36 dBm | |
1GHz~12.75GHz | ≤-30 dBm | ≤-30 dBm | ||
ALC Active 20dB | ≤2 dB | ≤2 dB | ||
Alarm | ALC not Active | - | Green | |
ALC Active 5~10dB | - | Orange | ||
ALC Active 15~20dB | - | Red | ||
Self-oscillation | - | Red Flashing(UL OFF) | ||
Time Delay | ≤0.5 μs | ≤0.5 μs | ||
Power Supply | DC:5 V | |||
Power Consumption | < 20 W | |||
RF Connector | N-Female | |||
Weight | < 2.5kg | |||
Environment Conditions | IP40 | |||
Humidity | < 90% | |||
Operating Temperature | -10ºC ~ +55ºC |
The booster is fixed onto the wall through expansion bolts.
A. Drill holes on the targeted place and install expansion bolts.
B. Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.
C. Place the booster on and fasten it.
D. Connect cables and power cables to the booster respectively.
E. After installing the booster as described above, power on the booster to check the operation status.
Connection

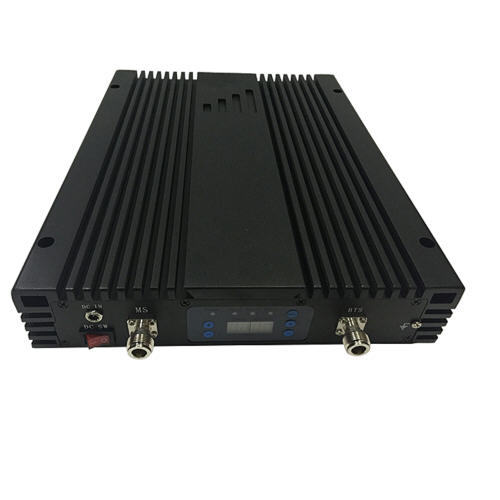

A. BTS Port: donor antenna cable is connected with Outdoor Port;
B. MS Port: service whip antenna is connected with Indoor Port;
C. DC IN: connected with Power adaptor.
