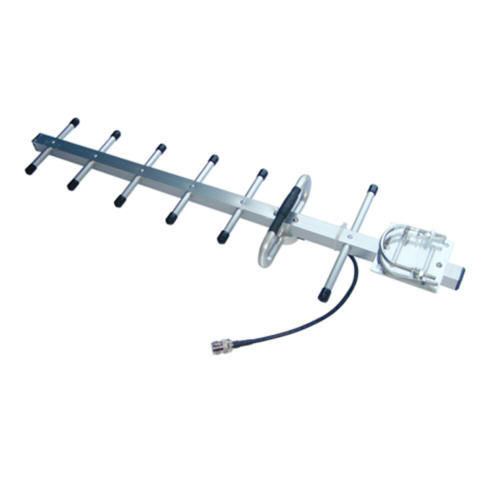

Product Feature:
1. Wide band, high gain and Low VSWR.
2. High quality Aluminum Alloy material.
3. Good Environmental Adaptability.
4. With the Cable leads.
5. Can be horizontal or Vertical installation
Applications:
1. Mobile Communication Network Optimization and Indoor distribution system
2. Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio
| ELECTRICAL | |
| Frequency Range | 1710-2170-MHz |
| Bandwidth | 460-MHz |
| Gain | 10-dBi |
| F/B ratio | ≥18-dB |
| VSWR | ≤1.5 |
| Polarization | Vertical |
| Max power | 100 –W |
| Nominal Impedance | 50 –Ω |
| MECHANICAL | |
| Connector | N female or customized |
| Dimension | 460x90-mm |
| Weight | 194-g |
| Element | 8 |
| Antenna Material | Aluminum Alloy |
| Rated Wind Velocity | 60-m/s |
| Mounting Kits | 2xU bolts |
