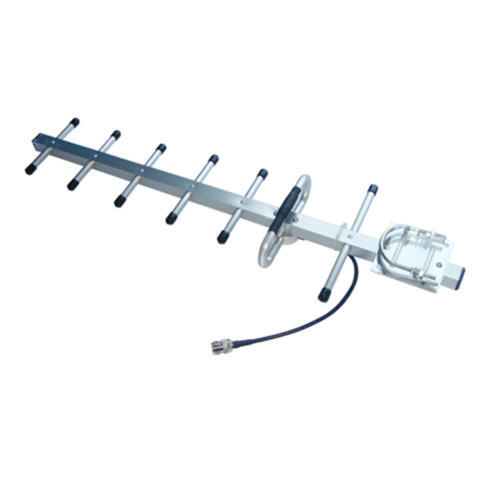

1710-2170MHz, 14dBi Yagi Antenna/Dcs+3G Yagi Antenna (GW-YAGI1710-2170-14D)

Item No.: 00156
Description Specifications
Description

Product Feature:
1. Wide band, high gain and Low VSWR.
2. High quality Aluminum Alloy material.
3. Good Environmental Adaptability.
4. With the Cable leads.
5. Can be horizontal or Vertical installation

Applications:
1. Mobile Communication Network Optimization and Indoor distribution system
2. Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio

Specifications
ELECTRICAL
Frequency Range 1710-2170-MHz
Bandwidth 320-MHz
Gain 14-dBi
Beamwidth H:41  E:36-°
F/B ratio ≥18-dB
VSWR ≤1.5
Polarization Vertical
Max power 100 –W
Nominal Impedance 50 –Ω

MECHANICAL
Connector­­­ N female or customized
Dimension 618-mm
Weight 320-g
Element 12
Antenna Material Aluminum Alloy
Rated Wind Velocity 60-m/s
Mounting Kits 2xU bolts
