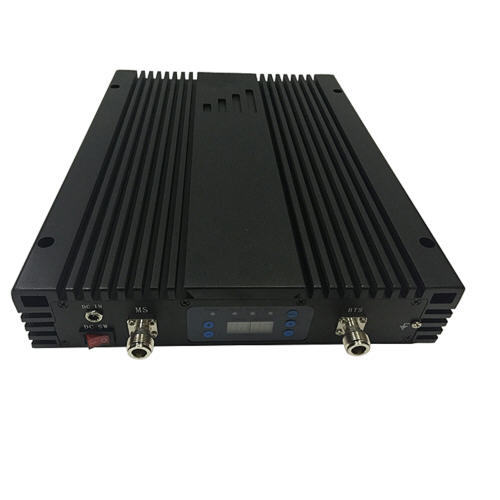

Model: GW-20LGDWL
It can support ultra wide band including 2G,3G,4G.
And improve your cell phone signal level
In mobile communication, it is inevitable that
macro-cell coverage cannot cover weak or dead
zones; to use repeater is a good choice in these
areas. These full band repeaters mainly
applied in covering small blind and weak zones.
Advantages:
Smart Function, Intelligent digital mode setting.
Smart function called which can be activated via the front digital panel.
users can adjust gain and choose working band by LED digital panel, This smart function is easier than DIP Switch,
will set up parameters more fast and more accurate,
It is a simple, safe and effective way.
Product Feature
Support all 2G,3G,4G bands(5 bands).
Low power consumption, low interference.
Quality metal construction, strong and durable
Good heat dissipation for longevity.
AGC function special for electric fans.
Alarm LED indication.
ALC could limit the output power to ensure stable coverage.
| Frequency Range | Uplink | Downlink | |||
| GSM 900 | 890 - 915MHz | 935 - 960MHz | |||
| DCS 1800 | 1710 - 1785MHz | 1805 - 1880MHz | |||
| WCDMA/3G 2100 | 1920 - 1980MHz | 2110 - 2170MHz | |||
| LTE800 | 832-862MHz | 791-821 MHz | |||
| LTE2600 | 2500-2570 MHz | 2620-2690 MHz | |||
| Max. Gain | 65dB | 70dB | |||
| Max. Output Power | 14dBm | 20dBm | |||
| Band width | Wide Band | ||||
| Manual Gain Control | 31dB / 1dB Step | ||||
| Automatic Gain Control | >25dB | ||||
| Ripple in-band | ≤ 8dB | ||||
| Return loss | ≤ -10dB | ||||
| Noise Figure | ≤ 6dB | ||||
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm | |||
| 1~12.75GHz | ≤ -30dBm | ||||
| Third-Order Intermodulation | ≤ -40dBc | ||||
| Time Delay | ≤ 1.5 μs | ||||
| Frequency stability | ≤ 0.01ppm | ||||
| MTBF | > 50000 hours | ||||
| Power Supply | AC100-240V | ||||
| Power LED | Power indicator | ||||
| Alarm LED | Green | Standard | |||
| Red | Autoexcitation or High Power | ||||
| Mechanical Specification | |||||
| RF Connector | N-Female | ||||
| Impedance | 50 ohm | ||||
| Humidity | < 90% | ||||
| Operating Temperature | -25°C ~ +55°C | ||||
| Environment Conditions | IP40 | ||||
| Size | 439*268*58mm | ||||
| Weight | < 9.5Kg | ||||
The booster is fixed onto the wall through expansion bolts.
A. Drill holes on the targeted place and install expansion bolts.
B. Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.
C. Place the booster on and fasten it.
D. Connect cables and power cables to the booster respectively.
E. After installing the booster as described above, power on the booster to check the operation status.
Connection
A. BTS Port: donor antenna cable is connected with Outdoor Port;
B. MS Port: service whip antenna is connected with Indoor Port;
C. DC IN: connected with Power adaptor.
