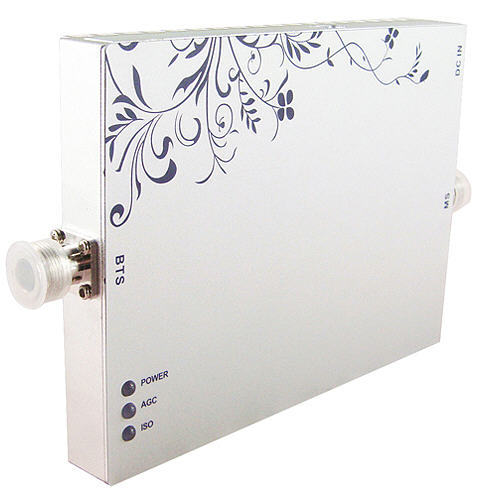

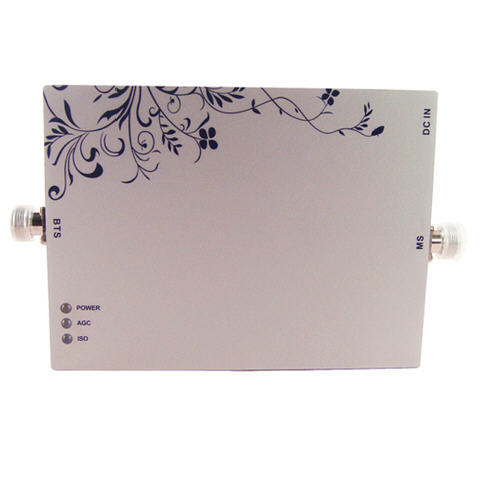

Model:
GW-23LAG
Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls
2. Compact size, low power consumption, easy installation, great cover
Expansion and extention of the signal of base station
Optimization of the quality of the signal and source
3. Cover about 500~3000 m² without block or obstruct
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Wide band signal booster, or customize selective band booster.
Antenna isolation testing,Prevent the oscillation
7. Support system CDMA450, LTE700, LTE800, iDEN, CDMA800/GSM850,
GSM900, EGSM, AWS1700, DCS1800, PCS1900,WCDMA, LTE2600,etc
Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.
| Frequency Range | Uplink | Downlink | |||
| GSM 900 | 890 - 915MHz | 935 - 960MHz | |||
| Max. Gain | 25dB | 30dB | |||
| Max. Output Power | 0dBm | 23dBm | |||
| Band width | Wide Band | ||||
| Manual Gain Control | 31dB / 1dB Step | ||||
| Automatic Gain Control | >20dB | ||||
| Ripple in-band | ≤ 6dB | ||||
| Return loss | ≤ -10dB | ||||
| Noise Figure | ≤ 6dB | ||||
| Spurious Emission & Intermodulation |
9KHz~1GHz | ≤ -36dBm | |||
| 1~12.75GHz | ≤ -30dBm | ||||
| Time Delay | ≤ 1.5 μs | ||||
| Frequency stability | ≤ 0.01ppm | ||||
| MTBF | > 50000 hours | ||||
| Power Supply | AC100-240V,DC9V/3A | ||||
| Power LED | Power indicator | ||||
| ISO LED | Red | Autoexcitation or High Power | |||
| Green | Standard | ||||
| AGC LED | Off | Low Power or No power | |||
| Green | Standard | ||||
| Red | Full Signal, ALC On | ||||
| Mechanical Specification | |||||
| RF Connector | N-Female | ||||
| Impedance | 50 ohm | ||||
| Humidity | < 90% | ||||
| Operating Temperature | -10°C ~55°C | ||||
| Environment Conditions | IP40 | ||||
| Size | 204mm×128mm×27mm | ||||
| Weight | < 1.5 Kg | ||||
