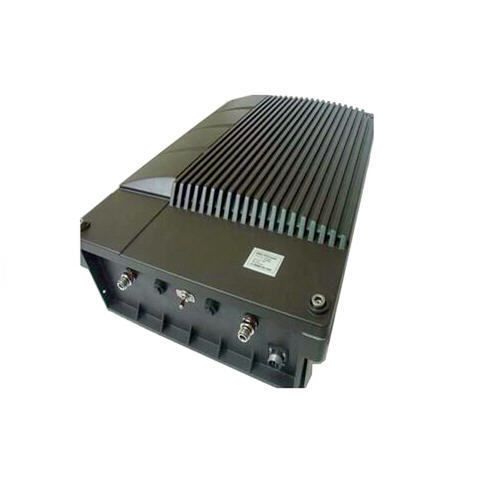

26dBm GSM 900MHz Repeater/ Mobile Repeater /Wireless Signal Booster (GW-26DRG)

Item No.: 00063
Description Specifications
Description

Model:
GW-26DRG

Features:
· Aluminum-alloy IP65 casing has high resistance to dust, water and corroding;
· High gain linear power amplifier technique with reliable performance
· In-built AGC & ALC function be able to ensure easy installation without setting.
· Compact size and light weight, easy to install on wall or pole
· Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink
· Support SNMP and Web-based GUI.
· RS232 or RJ45 ports provide links to laptop for local setting and monitoring by built-in web interface.
· Built-in wireless modem (Option) for remote monitoring by SMS, GPRS or TCP/IP.
· Details repeater parameters and status can be monitoring by built-in web interface, such as RSSI, temperature, output power level, gain, ATT, return loss, VSWR etc.

Digital Repeater is a new kind of RF Repeater that is adopting DSP (Digital Signal Processing) technology basis on FPGA platform, highly linear components and unparalleled innovative DSP filtering provide top level performance. Digital Repeater can be selected as Band Selective or Channel Selective operation mode, which supports up to 12 channels both on uplink and downlink. Using an advanced ALC mechanism, each one of the channels has an individual gain and ALC setting.

Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, highways
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.

Specifications



Item G900/U900
Medium
DL
Repeater type Digital Filter Repeater (DFR), minimum 3 sub slot band
Frequency Work 925 - 935 MHz
Input port repeater max -55 dBm
Output port repeater max 26 dBm
Gain max 81 dB
Power Adjustment 31 step / 1 dB
Isolation Min (dB) 84

UL
Repeater type Digital Filter Repeater (DFR), minimum 3 sub slot band
Frequency Work 880 - 900 MHz
Input port repeater max -65 dBm
Output port repeater max 16 dBm
Gain max 81 dB
Power Adjustment 31 step / 1 dB
Isolation Min (dB) 84

VSWR  1.1<=x<1.4
Inter-modulation Max -37dbm or -80dbc
Spurious Emission Max -37dBm at +/- 750 kHz
I/O Impedance  50 ohm
Noise Figure Max 5dB
Group Time Delay  Max 4µS
Temperature Range  -25 degree Celsius to +55 degree Celsius
Relative Humidity  Max 95%
MTBF  Min. 100000 hrs

Connector Type N-female
ICS No
ALC Yes
AGC Yes
AGC Control Range  Min 40dB (+/-1dB)
Gain Control Range  31 step (1dB Step)

NMS based on Data service (include modem (2G/3G or 2G only (GSM/DCS or GSM only)*)) Yes
GUI Yes

Power Consumption  50 W
Power Supply Type Switching Regulator
UPS with casing (IP 65, repeater inside) Need
UPS Capacity 4 hours

Antenna system (include accessories)
     Donor
Type Yagi (pig tailed N-female 30 cm)
Gain > 18 dBi
Pole antenna (Ø 2" aluminium include bracket) 4 meter
     Serving
Type Sectoral
Gain > 17 dBi
Pole antenna (Ø 5" aluminium include bracket) 3 meter

Installation part
Cable RG8 length 30 m
Connector N-male RG8 2 pcs
MCB with box 2 Amp
Power cable 3wire w/ stop contact 10 meter
Installation local material (ties cable, rubber, isolatif 3M, sticker Isat, cable clamp etc) 2 package
