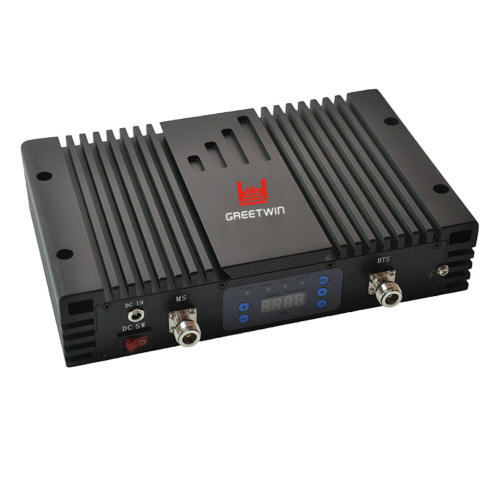

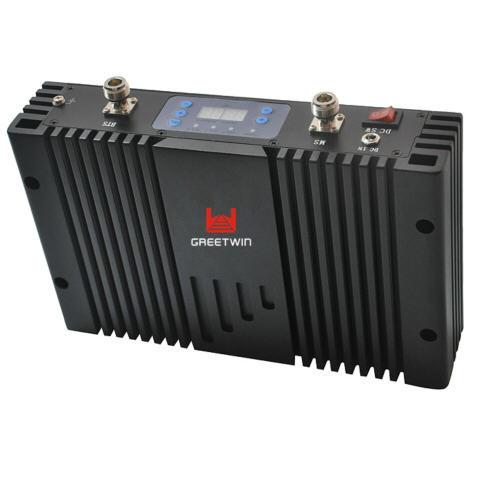

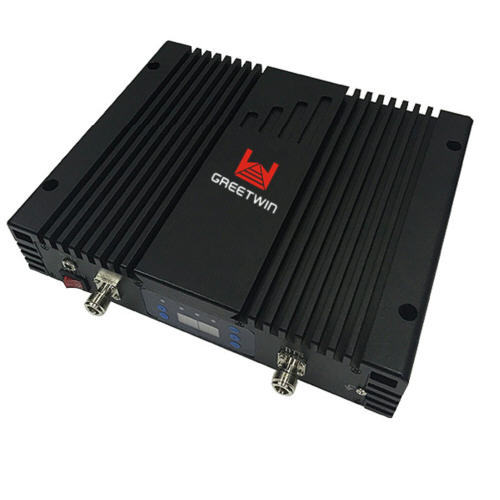

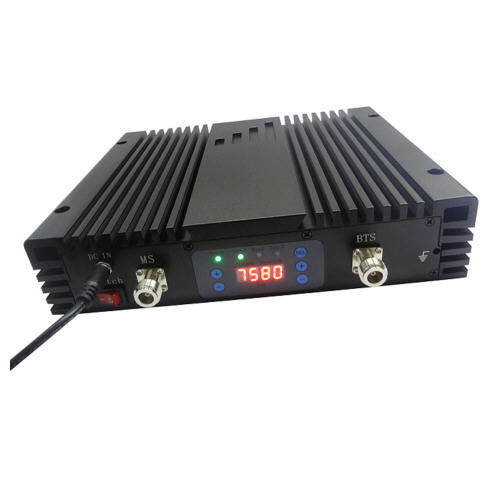

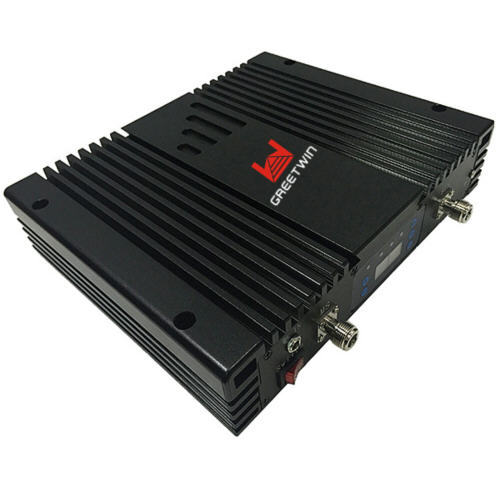

Model: GW-30LAC
Line Amplifiers are specially designed to assist the Base Station (BTS) or Repeaters to compensate the system loss from in-building distributing cable, power splitter and directional coupler and extend in-building signal coverage, and improve flexible of in-building signal coverage system design
To meet the field strength requirements of in-building signal coverage system.
Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.
3. Support any cellular devices (voice & data & video)
4. High linear design, ALC function design, low interference to BTS.
Standard Package:
1) AC90-264V, DC9V/5A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
To expand signal coverage of fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, etc.
Frequency Range | Uplink | Downlink | |||
iDEN | 806-824MHz | 851-869MHz | |||
CDMA 800/GSM 850 | 824-849MHz | 869-894MHz | |||
GSM 900 | 890-915MHz | 935-960MHz | |||
AWS1700 | 1710-1755MHz | 2110-2155MHz | |||
DCS 1800 | 1710-1785MHz | 1805-1880MHz | |||
PCS 1900 | 1850-1910MHz | 1930-1990MHz | |||
WCDMA/3G 2100 | 1920-1980MHz | 2110-2170MHz | |||
Max. Gain | 30dB | 35dB | |||
Max. Output Power | 0dBm | 30dBm | |||
Band width | Wide Band | ||||
Manual Gain Control | 31dB / 1dB Step | ||||
Automatic Gain Control | >30dB | ||||
Ripple in-band | ≤ 3dB | ||||
Return loss | ≤ -10dB | ||||
Noise Figure | ≤ 5dB | ||||
Spurious Emission &Intermodulation |
9KHz~1GHz | ≤ -36dBm | |||
1~12.75GHz | ≤ -30dBm | ||||
WCDMA | Spurious Emission Mask | Meet 3GPP TS 25.143 ( V 6.2.0 ) | |||
Modulation Accuracy | ≤ 12.5% | ||||
Peak Code Domain Error | ≤ -35dB@Spreading Factor 256 | ||||
Time Delay | ≤ 1.5 μs | ||||
Frequency stability | ≤ 0.01ppm | ||||
MTBF | > 50000 hours | ||||
Power Supply | AC100-240V,DC9V/5A | ||||
Power LED | Power indicator | ||||
Alarm LED | Red | Autoexcitation or High Power | |||
Green | Standard | ||||
Mechanical Specification | |||||
RF Connector | N-Female | ||||
Switch | Power Switch\Manual Gain Control Switch | ||||
Cooling | Heatsink Convection cooling | ||||
Impedance | 50 ohm | ||||
Humidity | < 90% | ||||
Operating Temperature | -10°C~55°C | ||||
Environment Conditions | IP40 | ||||
Size | 268mm*58mm*189mm | ||||
Weight | < 4.5Kg |
