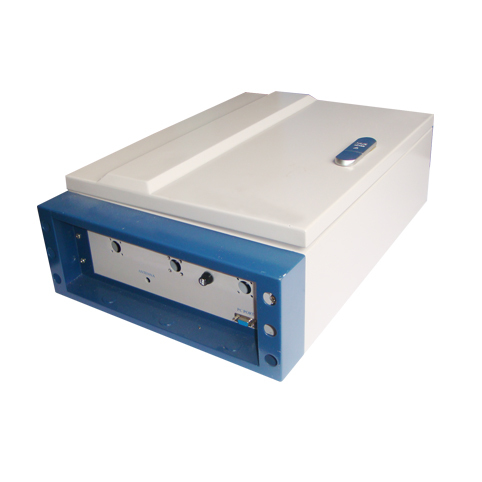

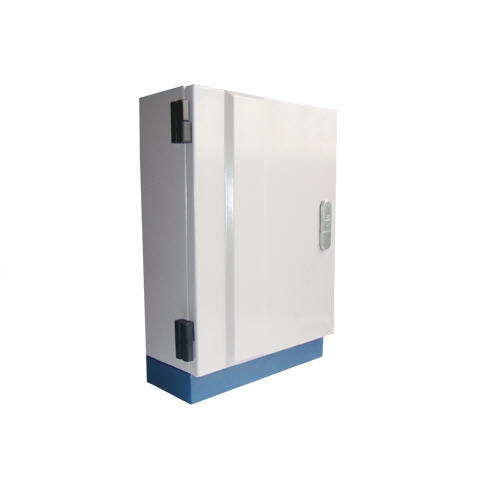

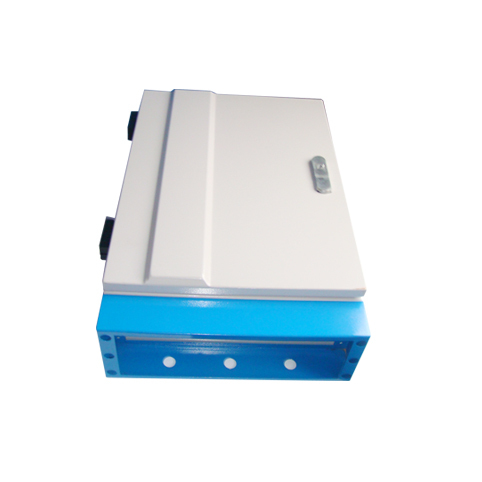

33dBm-43dBm 900MHz GSM Line Amplifier Cellphone Signal Booster (GW-43LAG)

Item No.: 00103
Description Specifications

Model:
GW-33LAG
GW-37LAG
GW-40LAG
GW-43LAG

Features:
1. Work with RF repeaters to expand coverage.
2. Dust- proof chassis, prolong equipment lifetime.
3. Reduce cellphone transmit power and radiation, extend cellphone battery life.
4. Low UL noise design, improve repeater sensitivity, keep communication quality.
5. Aluminum-alloy casing with IP65 protection, cool system without fan.
6. In-built AGC & ALC function be able to ensure easy installation without setting.
7. Compact size and light weight, easy to install on wall or pole
8. High gain linear power amplifier technique with reliable performance
9. Built-in wireless modem (Option) for remote monitoring by SMS, GPRS or TCP/IP.

Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, highways
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.



Working Frequency (customizable) Uplink 890~915MHz
Downlink 935~960MHz
Working Bandwidth Customizable
Output Power (customizable) Uplink≥ 0dBm,  Downlink 33~43 dBm (2~20 W)
Gain Uplink ≥ 40dB,  Downlink ≥ 45dB
Gain Adjustment Range 1~31 dB @ step of 1dB
AGC (Automatic Gain Control) /
ALC (Automatic Level Control)
>20dB
Voltage Standing Wave Ratio (VSWR) < 1.5
Noise Figure ≤ 5dB
In-Band Ripple ≤ 3dB
Frequency Error ≤ 0.05ppm
Spurious Emission Within working band ≤ -15dBm/30kHz
Out of working band
(Δf > 2.5MHz)
9kHz~1GHz: ≤ -36dBm/30kHz
1GHz~12.75GHz: ≤ -30dBm/30kHz
Third-Order Intermodulation ≤ -45dBc/30kHz(measured under rated output power)
System Delay ≤ 5.0μSec
I/O Impedance 50Ω
RF Connector N-Type (Female)
Temperature Range Operation: -25°C ~ +55°C / Storage: -30°C ~ +60°C
Relative Humidity Range ≤ 95% (non condensing)
Power Supply (customizable) DC 48V / AC 85V - 265V, 45Hz - 65Hz
Power Consumption ≤200W
Backup Power Supply (optional) 4 hours
Casing Level IP65
Dimensions(cm) 67x45x30
Weight(kg) ≤ 32
NMS Monitoring Function (optional) Real-time alarm for door status, temperature, power supply, LNA, VSWR, self-oscillation, etc.
Remote control such as turn on/off, increasing/decreasing output power, etc.
Real-time status for output/input power, UL/DL gain, all status of repeater etc.
