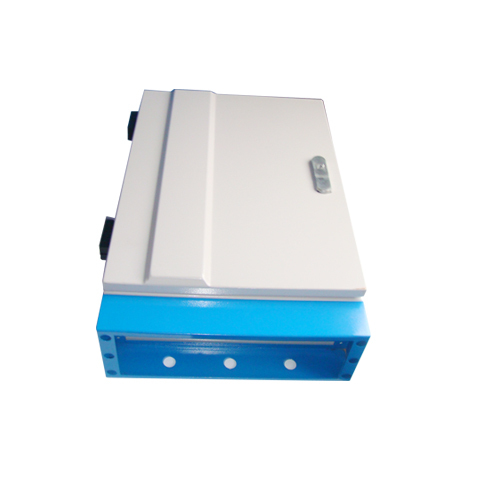

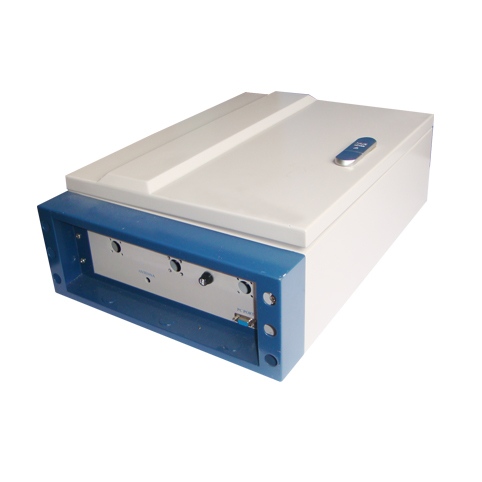

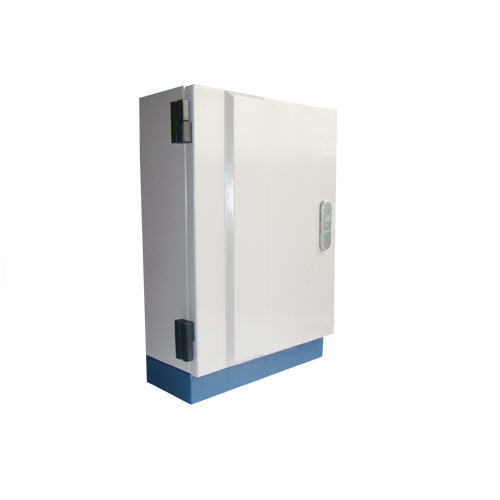

Model:
GW-33LAI
GW-37LAI
GW-40LAI
GW-43LAI
Features:
1. Work with RF repeaters to expand coverage.
2. Dust- proof chassis, prolong equipment lifetime.
3. Reduce cellphone transmit power and radiation, extend cellphone battery life.
4. Low UL noise design, improve repeater sensitivity, keep communication quality.
5. Aluminum-alloy casing with IP65 protection, cool system without fan.
6. In-built AGC & ALC function be able to ensure easy installation without setting.
7. Compact size and light weight, easy to install on wall or pole
8. High gain linear power amplifier technique with reliable performance
9. Built-in wireless modem (Option) for remote monitoring by SMS, GPRS or TCP/IP.
Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, highways
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.
| Working Frequency (customizable) | Uplink | 806- 824MHz |
| Downlink | 851- 869MHz | |
| Working Bandwidth | Customizable | |
| Output Power (customizable) | Uplink≥ 0dBm, Downlink 33~43 dBm (2~20 W) | |
| Gain | Uplink ≥ 40dB, Downlink ≥ 45dB | |
| Gain Adjustment Range | 1~31 dB @ step of 1dB | |
| AGC (Automatic Gain Control) / ALC (Automatic Level Control) |
>20dB | |
| Voltage Standing Wave Ratio (VSWR) | < 1.5 | |
| Noise Figure | ≤ 5dB | |
| In-Band Ripple | ≤ 3dB | |
| Frequency Error | ≤ 0.05ppm | |
| Spurious Emission | Within working band | ≤ -15dBm/30kHz |
| Out of working band (Δf > 2.5MHz) |
9kHz~1GHz: ≤ -36dBm/30kHz | |
| 1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
| Third-Order Intermodulation | ≤ -45dBc/30kHz(measured under rated output power) | |
| System Delay | ≤ 5.0μSec | |
| I/O Impedance | 50Ω | |
| RF Connector | N-Type (Female) | |
| Temperature Range | Operation: -25°C ~ +55°C / Storage: -30°C ~ +60°C | |
| Relative Humidity Range | ≤ 95% (non condensing) | |
| Power Supply (customizable) | DC 48V / AC 85V - 265V, 45Hz - 65Hz | |
| Power Consumption | ≤200W | |
| Backup Power Supply (optional) | 4 hours | |
| Casing Level | IP65 | |
| Dimensions(cm) | 67x45x30 | |
| Weight(kg) | ≤ 32 | |
| NMS Monitoring Function (optional) | Real-time alarm for door status, temperature, power supply, LNA, VSWR, self-oscillation, etc. Remote control such as turn on/off, increasing/decreasing output power, etc. Real-time status for output/input power, UL/DL gain, all status of repeater etc. |
|
