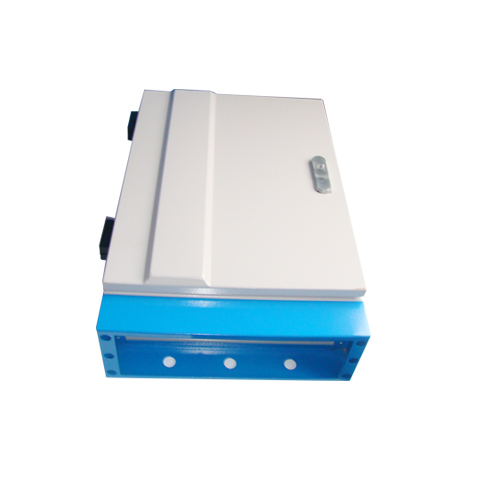

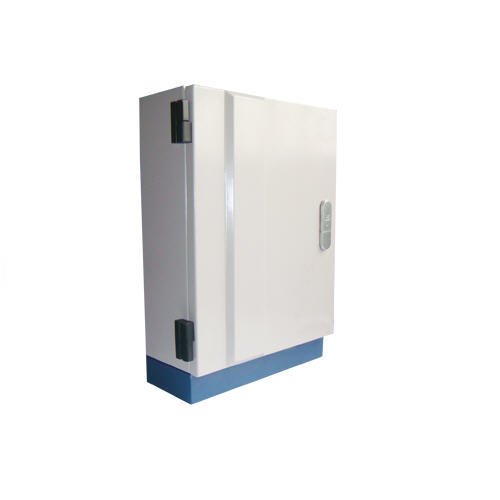

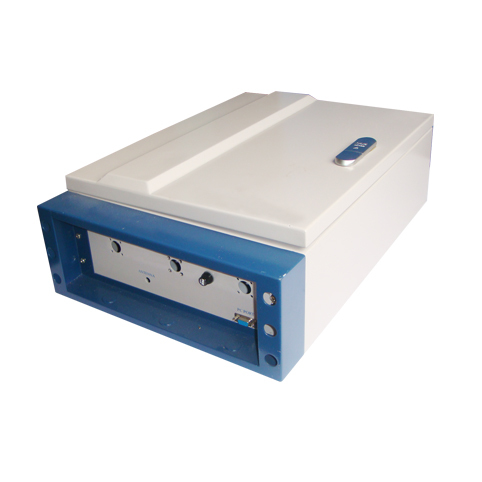

33dBm-43dBm Tetra 400MHz Line Amplifier mobile Booster (GW-33LAT)

Item No.: 00109
Description Specifications
Description

Model:
GW-33LAT
GW-37LAT
GW-40LAT
GW-43LAT

Features:
1. Work with RF repeaters to expand coverage.
2. Dust- proof chassis, prolong equipment lifetime.
3. Reduce cellphone transmit power and radiation, extend cellphone battery life.
4. Low UL noise design, improve repeater sensitivity, keep communication quality.
5. Aluminum-alloy casing with IP65 protection, cool system without fan.
6. In-built AGC & ALC function be able to ensure easy installation without setting.
7. Compact size and light weight, easy to install on wall or pole
8. High gain linear power amplifier technique with reliable performance
9. Built-in wireless modem (Option) for remote monitoring by SMS, GPRS or TCP/IP.

Support TETRA system,
Such as, Uplink 410-414MHz, Downlink 420-424MHz;
Uplink 380-385MHz, Downlink 390-395MHz.

Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, highways
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.

Specifications



Working Frequency (customizable) Uplink 388 - 390MHz
Downlink 398 - 400MHz
Working Bandwidth Customizable
Output Power (customizable) Uplink≥ 0dBm,  Downlink 33~43 dBm (2~20 W)
Gain Uplink ≥ 40dB,  Downlink ≥ 45dB
Gain Adjustment Range 1~31 dB @ step of 1dB
AGC (Automatic Gain Control) /
ALC (Automatic Level Control)
>20dB
Voltage Standing Wave Ratio (VSWR) < 1.5
Noise Figure ≤ 5dB
In-Band Ripple ≤ 3dB
Phase P-P Error ≤20
RMS Phase Error ≤5
Spurious Emission Within working band ≤ -22dBm/30kHz
Out of working band
(Δf > 2.5MHz)
9kHz~1GHz: ≤ -36dBm/30kHz
1GHz~12.75GHz: ≤ -30dBm/30kHz
Third-Order Intermodulation ≤ -45dBc/30kHz(measured under rated output power)
System Delay ≤ 5.0μSec
I/O Impedance 50Ω
RF Connector N-Type (Female)
Temperature Range Operation: -25°C ~ +55°C / Storage: -30°C ~ +60°C
Relative Humidity Range ≤ 95% (non condensing)
Power Supply (customizable) DC 48V / AC 85V - 265V, 45Hz - 65Hz
Power Consumption ≤200W
Backup Power Supply (optional) 4 hours
Casing Level IP65
Dimensions(cm) 75x50x32
Weight(kg) ≤ 36
NMS Monitoring Function (optional) Real-time alarm for door status, temperature, power supply, LNA, VSWR, self-oscillation, etc.
Remote control such as turn on/off, increasing/decreasing output power, etc.
Real-time status for output/input power, UL/DL gain, all status of repeater etc.
