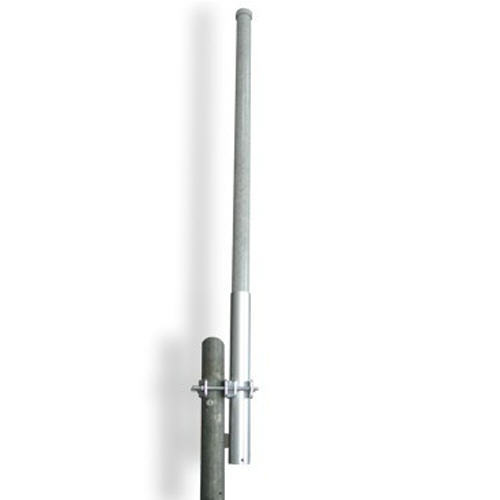

450MHz 8dBi Omni Fiberglass Antenna/ Omni-Directional Antenna (GW-OFA450-8d)

Item No.: 00182
Description Specifications
Description

Feature:
Exquisite appearance
Good impact resistance, waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain, low standing wave, strong anti-interference ability
Application:
2.3/2.7 GHz WLAN system
Point-to-multipoint system
Public wireless hot spot coverage
Wi-Fi system

Specifications

ELECTRICAL
Model GW-OFA450-8d
Frequency Range 450-470-MHz
Bandwidth 20-MHz
Gain 8-dBi
Beamwidth E:20-°
VSWR ≤1.5
Polarization Vertical
Max power 100 -W
Nominal Impedance 50 -Ω


MECHANICAL
Connector­­­ N female or customized
Antenna Dimension          2.6-M
Weight 5-kg
Rated Wind Velocity 60-m/s
Mounting Kits U bolts
Working Temperature    -40_+70C
