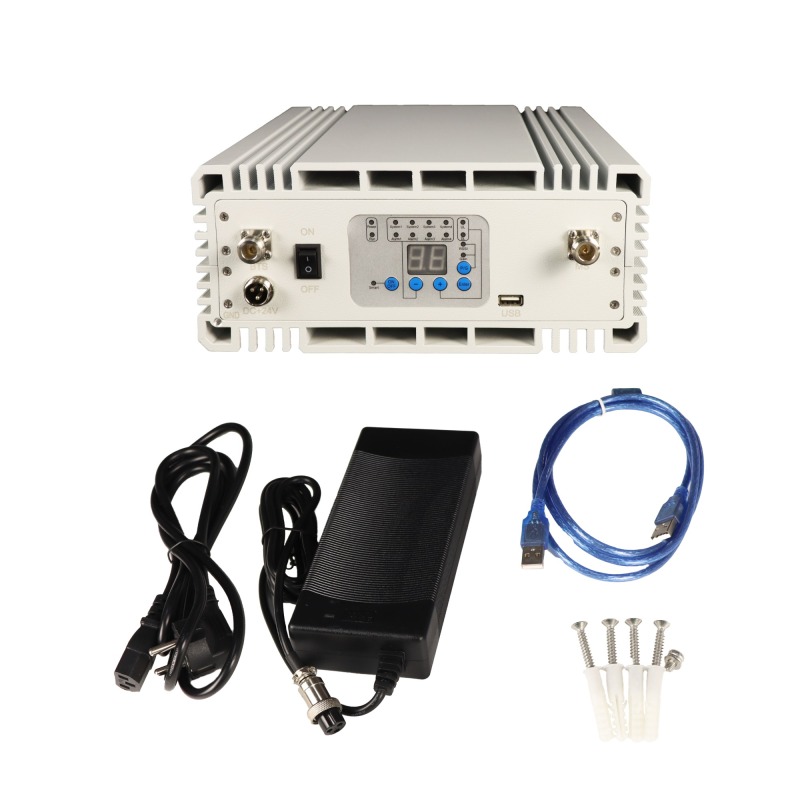

The Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
|
Items |
Specifications |
|
|
System |
5G-N78 |
|
|
Frequency Range |
Uplink |
3400~3600MHz、3600-3800MHz |
|
|
Downlink |
3400~3600MHz，3600-3800MHz |
|
Working Bandwidth |
100MHz Fixed Bandwidth(Movable Center Frequency Via Software) |
|
|
Maximum Output Power |
Uplink |
17±2dBm |
|
|
Downlink |
20±2dBm |
|
Maximum Gain |
70±3dB |
|
|
Manual Gain Control |
31dB in Step of 1dB |
|
|
AGC Range |
≥ 20dB |
|
|
Spurious Emission |
9kHz~1GHz: ≤ -36dBm |
|
|
|
1GHz~12.75GHz: ≤ -30dBm |
|
|
EVM |
≤ 4.5% |
|
|
VSWR |
≤2.0 |
|
|
Noise Figure |
≤ 5dB |
|
|
Group Delay |
≤ 5μs |
|
|
I/O Impedance |
50Ω |
|
|
RF Connector |
2xN-Female |
|
|
Power Supply |
Input: AC100~ 240V |
|
|
Power Consumption |
≤30W |
|
|
Dimensions |
188*265*68mm |
|
|
Weight |
≤ 5 kg |
|
|
Alarm Monitoring System |
Alarm for Uplink Self-oscillation |
|
|
Isolation Detection |
Isolation Check During Boot Time |
|
|
LED Indicator |
Power Supply, Alarm, State |
|
|
Operating Temperature |
-10 ~ +45 °C |
|
|
Application |
Indoor(IP30) |
|
|
Relative Humidity Range |
≤95%(Non Condensing) |
|
|
Mounting |
Wall Mounting |
|
|
Local Control |
Via USB Interface |
|
