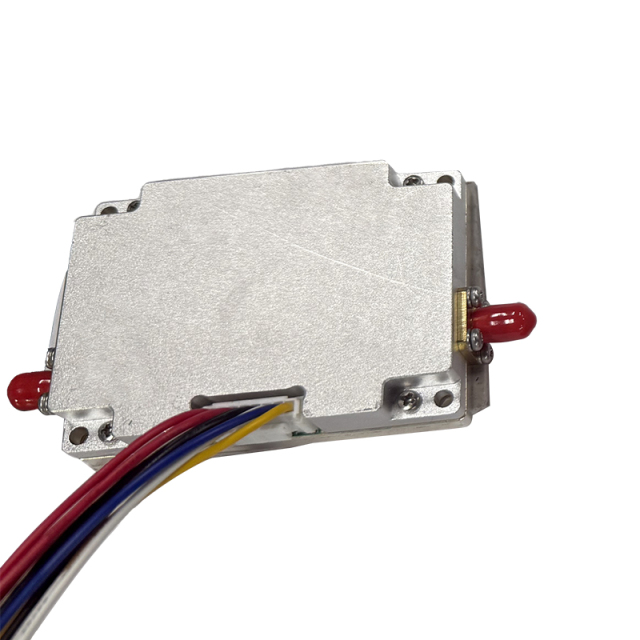

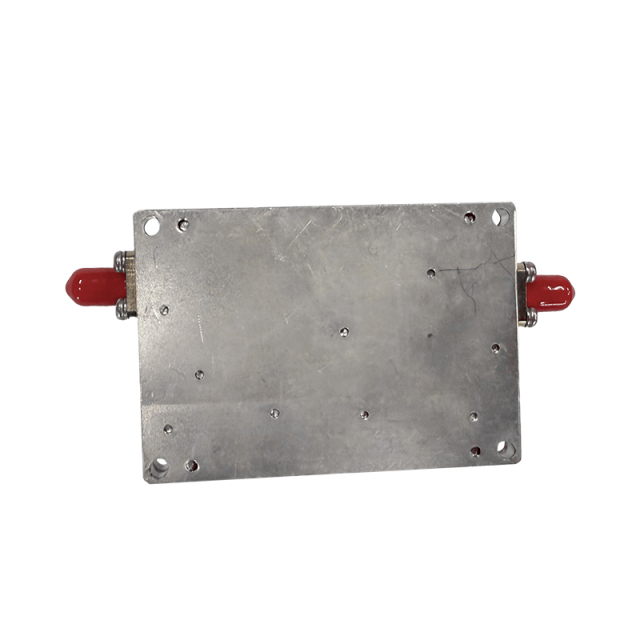

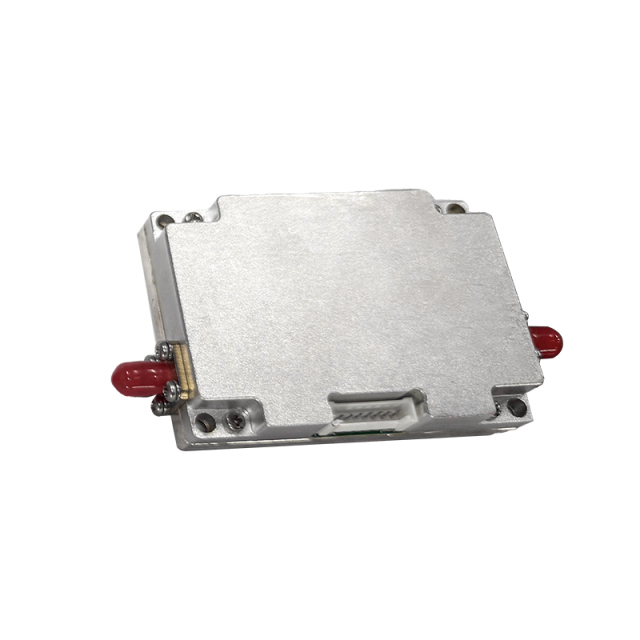

The AMPB7002700-50W GaN Wideband Amplifier is designed for general purpose. Operating
frequency range is from 700~2700MHz. Gallium Nitride on SiC Technology is used and
attached on a copper sub carrier. Improved thermal handling by patented technology
Description
The AMPB7002700-50W GaN Wideband Amplifier is designed for general purpose. Operating
frequency range is from 700~2700MHz. Gallium Nitride on SiC Technology is used and
attached on a copper sub carrier. Improved thermal handling by patented technology
|
PARAMETER |
UNIT |
MIN |
TYP |
MAX |
SYMBOL |
|
Operating Frequency |
MHz |
700 |
- |
2700 |
- |
|
Power Gain @ Pin 10dBm |
dB |
35 |
37 |
- |
700 ~ 2700 MHz |
|
Power Gain Flatness @ Pin 10dBm |
dBpp |
- |
±1.0 |
±2.0 |
700 ~ 2700 MHz |
|
Output Power @ Pin 10dBm |
dBm |
45 |
47 |
- |
700 ~ 2700 MHz |
|
Input Return Loss |
dB |
- |
-10 |
-5 |
- |
|
Supply Voltag |
V |
32 |
- |
- |
Vcc (=Vds) |
|
Quiescent Current Consumption |
A |
- |
1.2 |
1.7 |
- |
|
Current Consumption @ Pin 10dBm |
A |
- |
5.0 |
6.5 |
CW 1-tone |
|
On/Off Switching Time |
uS |
- |
2 |
5 |
On : TTL “Low; Off : TTL “ High” (50mA @Disable) |
