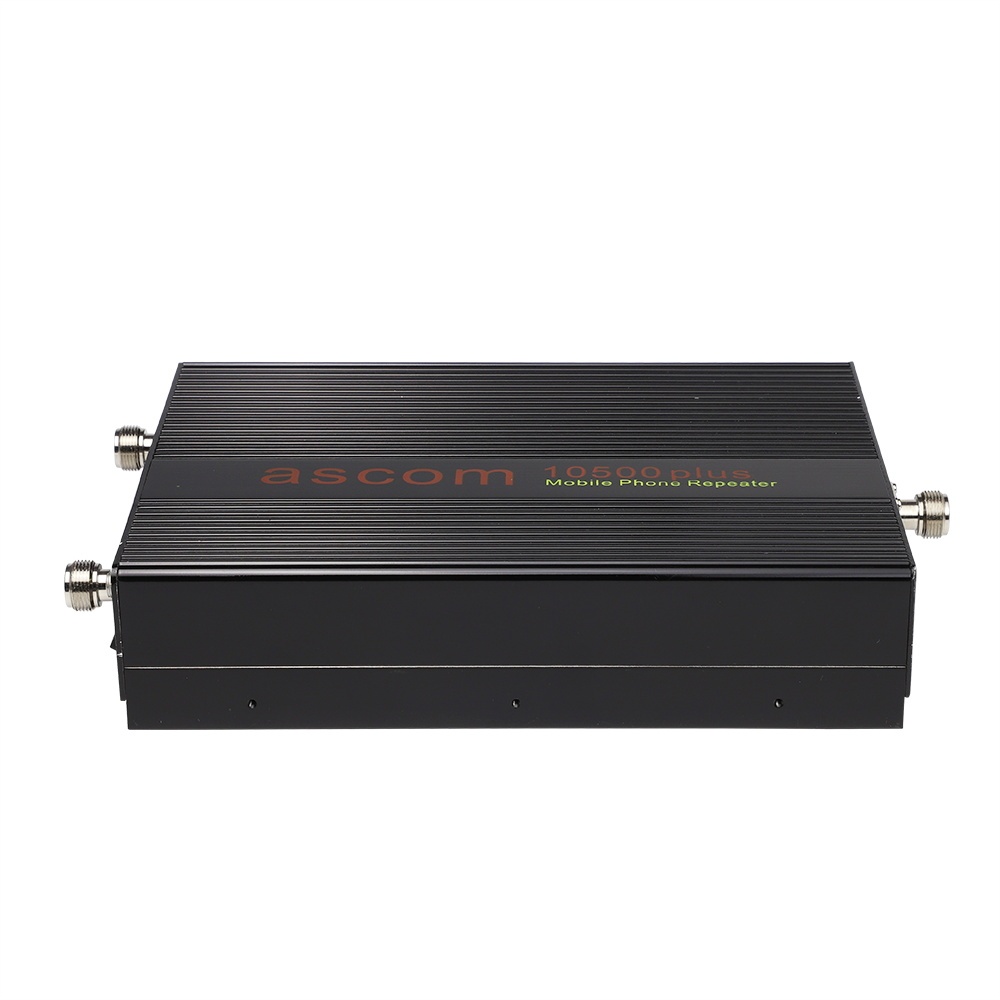

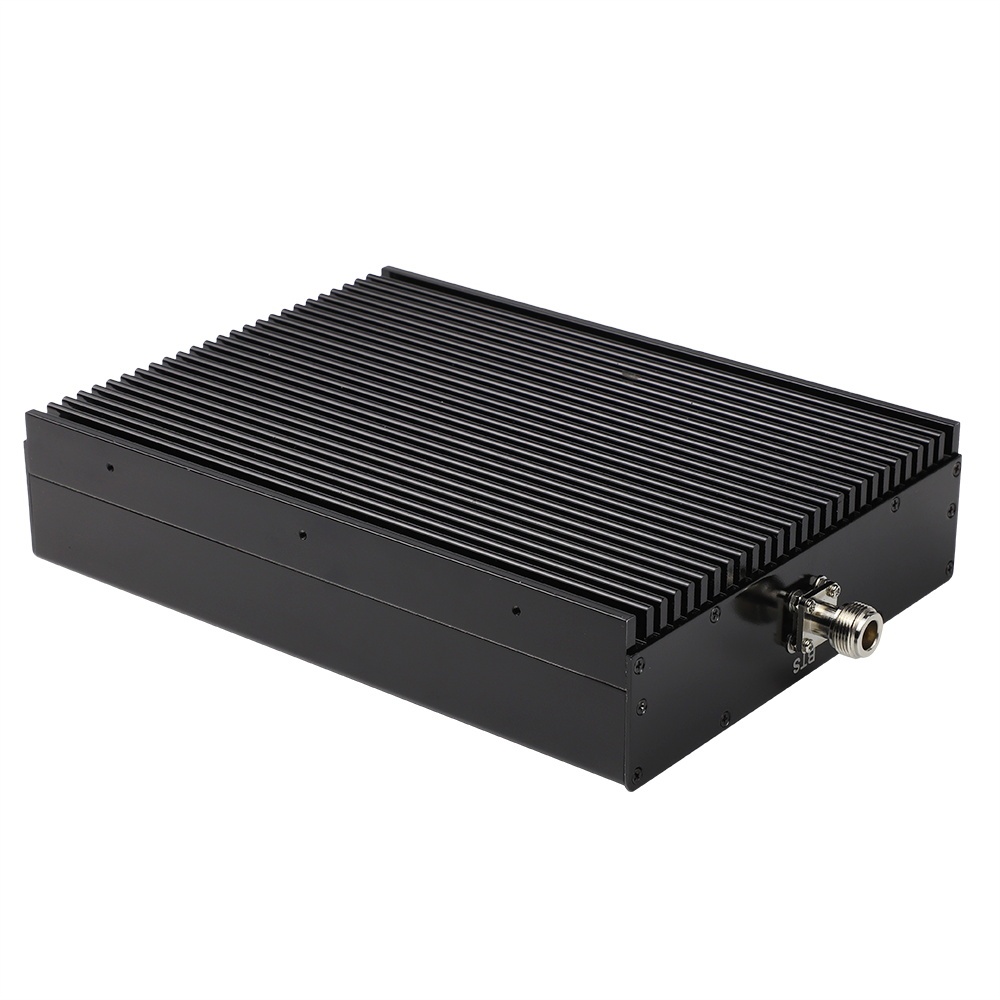

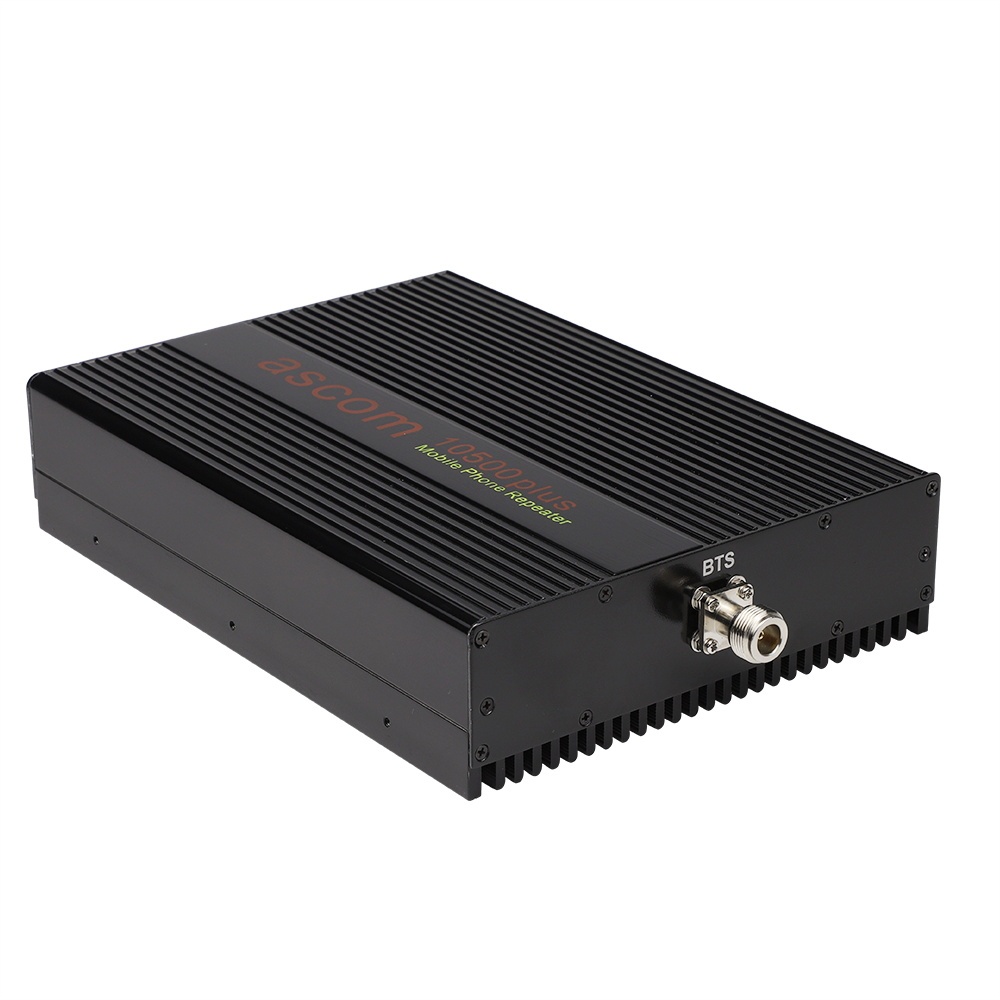

Customize LOGO indoor Ascom 23dBm GSM 900MHz LTE 1800MHz repeater amplifier 4G signal booster

INQUIRY
Description
Product Description

1,Product Details.jpg

Customize LOGO indoor Ascom 23dBm GSM 900MHz LTE 1800MHz digital 4G signal amplifier booster repeater


Frequency Range

Uplink

Downlink

GSM900+DCS1800

890-915/1710-1785MHz

935-960/1805-1880MHz

Gain

70dB±2db

75dB±2db

Output Power

18dBm±2dbm

23dBm±2dbm

Band width

Wide Band

Manual Gain Control

31dB / 1dB Step

ALC

>20dB

Ripple in Band

≤ 8dB

Noise Figure

≤ 6dB

VSWR

≤ 2.0

Intermodulation

≤ -40dBc

Spurious Emission

9KHz~1GHz

≤ -36dBm



1~12.75GHz

≤ -30dBm

Time Delay

≤ 1.5 μs

Frequency stability

≤ 0.01ppm

MTBF

> 50000 hours

Impedance

50 ohm

Power Supply

AC 90-264V,DC 9V/5A

Power LED

Power indicator

Alarm LED

Red

Self oscillation or Strong input signal



Green

Normal

Mechanical Specification

RF Connector

N-Female

Switch

Power Switch,Manual Gain Control Switch

Cooling

Heatsink Convection cooling

Humidity

< 90%

Operating Temperature

-10°C ~ +55°C

Environment Conditions

IP40

Installation Type

Wall Installation

Size

250*170*53mm

Weight

3.5 kg







User's Manual

user's manual.jpg

Product Manual

Indoor Signal Repeater (Signal Booster) series is an ideal solution for wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it haseasy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking &super compact design also make it attractive. Besides, it is easy installation feature is also for individualcustomers to install the booster by themselves, and it does not need much professional knowledge and instrument. The dual band improves mobile signals with no negative impact on human health.


Features

1. Cost effective solution for weak signal zones, reduce drop/off calls.

2. Compact size, low power consumption, easy installation, great cover.

Expansion and extending of the signal of base station.

Optimization of the quality of the signal and source

3. Cover about 500~3000m² without block or obstruct.

4. High linear design, ALC function design, low interference to BTS.

5. Support any cellular devices (voice & data & video)

6. Wide band signal booster, or customize selective band booster.


Advantages

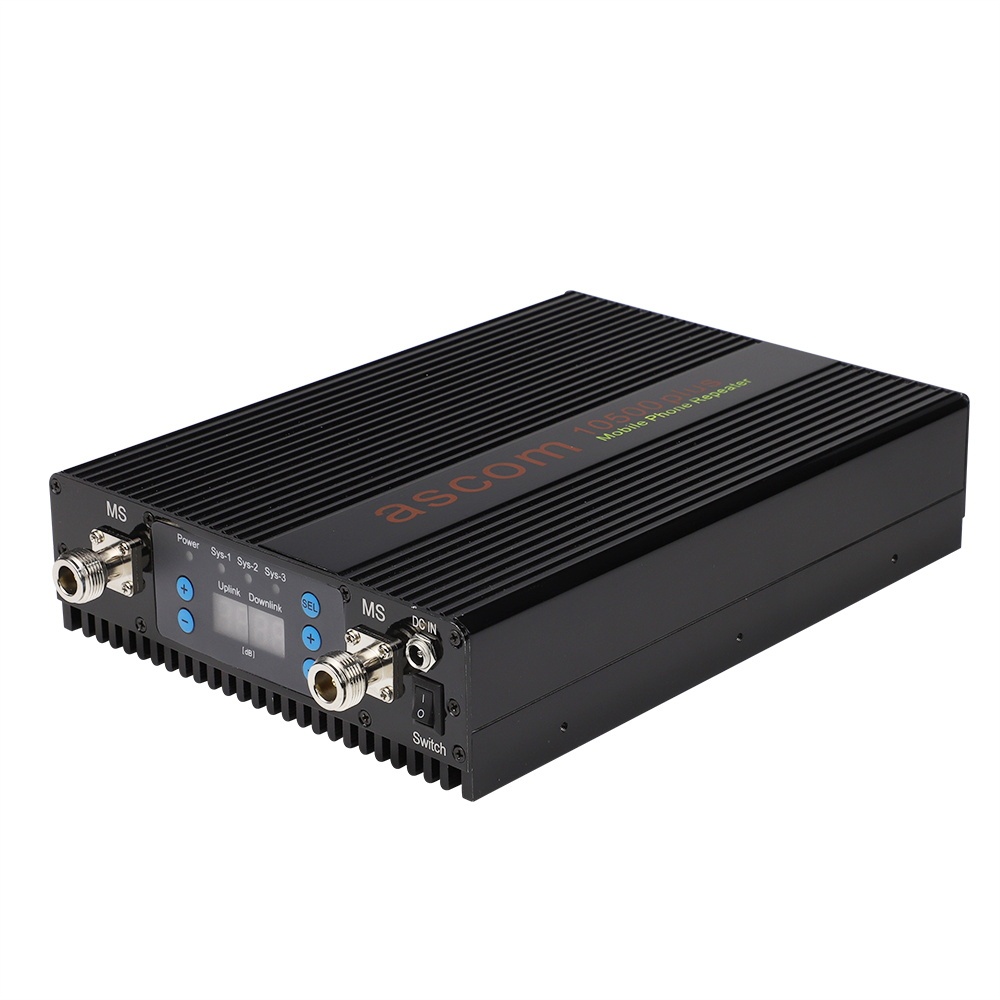

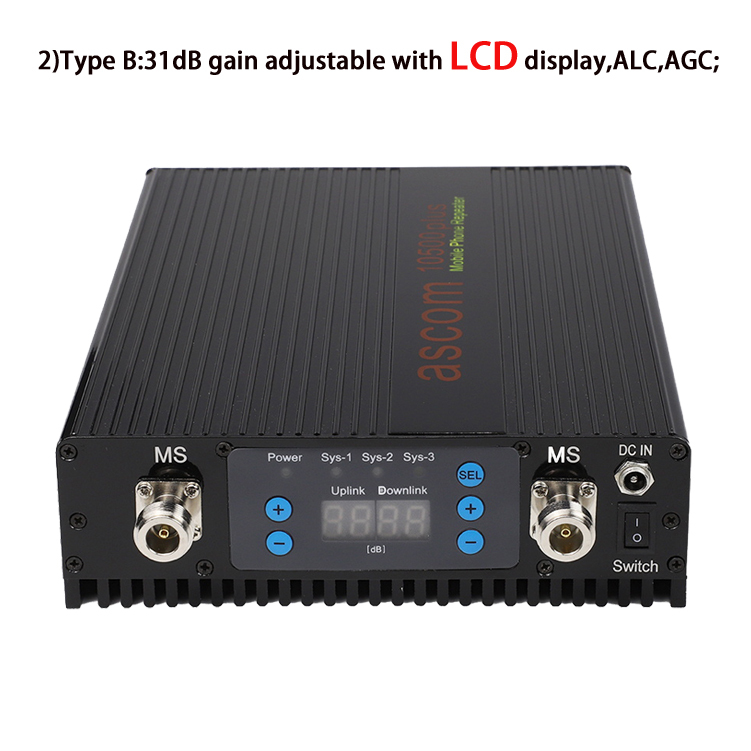

 Digital Display Panel, Intelligent mode setting

Smart function called which can be activated via the digital display panel.

Users can choose gain and working system by LED Digital Panel.

Set the technical parameters simple and efficient, this is easier than DIP Switch.


Standard Package

1) AC90-264V, DC 9V/5A power supply adapter 1PCS

2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS

3) Installation kit 1PCS

4) User manual 1PCS


Application Diagram

640  (107)__

We manufacture Signal Boosters as your requirements.



Support Frequencies:

Single Band, Dual Band, Tri Band, Quad Band, Quint band for your options.



Single band:

Tetra400MHz, CDMA450 MHz, LTE700MHz, LTE800MHz, iDEN800, CDMA 800/GSM850 MHz, GSM 900MHz, EGSM900, AWS1700/2100MHz, DCS1800 MHz, LTE1800 MHz, PCS1900 MHz, 3G WCDMA 2100 MHz, LTE2600MHz, etc.



Dual band:

GSM900+1800, EGSM900+1800, GSM900+PCS1900, GSM900+ LTE2600, GSM900+3G 2100, EGSM900+WCDMA, GSM850+PCS1900, GSM850+ AWS1700, CDMA800+WCDMA, CDMA800+1800,1800+3G 2100, 2100+LTE2600, LTE700+PCS1900,

LTE800+EGSM900, etc.



Tri band:

GSM900+DCS1800+3G2100, 1800+2100+LTE2600, LTE800+GSM900+1800,

GSM900+1800+LTE2600, GSM900+2100+LTE2600, EGSM900+WCDMA+LTE2600, GSM850+PCS1900+AWS1700, GSM850+PCS1900+LTE2600,

LTE700+PCS1900+AWS1700, etc.



Quad band:

GSM900+1800+2100+LTE2600, EGSM900+1800+2100+LTE2600,

LTE800+GSM900+1800+WCDMA, LTE800+EGSM900+1800+WCDMA, LTE800+GSM900+WCDMA+LTE2600, LTE800+EGSM900+WCDMA+LTE2600, etc.



Quint band:

LTE800+GSM900+1800+2100+LTE2600

LTE800+EGSM900+1800+2100+LTE2600

LTE700(12/17)+ LTE700(14)+GSM850+PCS1900+AWS1700/2100,etc.



The Signal Booster Should be Compatible with the Frequencies used in your Country.

Please contact GREETWIN TECH for details.


Product Recommended

4,Product Recommended.jpg


Company Information

5,Company Information.jpg





6,Exhibition and customers.jpg


Certifications



Packing and Shipping

8,Packing and Shipping.jpg


FAQ


Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.

Q2. What should I do if I don't know about frequency in my country?

Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.



Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.



Q4.Shipment Date

Sample 3-5 business days
<20 pcs 7-15 days
20-50 pcs 15-24 days
>50 pcs Negotiate


Q5: Delivery Date of the sample by DHL/FedEx

USA/Canada/Europe/Asia 3-5 days
Middle East/Latin American 5-7 days
African 3-7 days



Q6.Payment Method
T/T, Western Union, Paypal, and Credit Card are available,
but we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please contact us with more details.

Q7.Others
(1)Frequency
We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,)
(2)Output Power &Coverage Areas

Output Power Coverage Areas
20dBm 500-1500m²
23dBm 1500-2500m²
25dBm 2500-4000m²
27dBm 3000-5000m²
30dBm 5000-8000m²

*Coverage is related to local signal strength, please contact us with your local condition, we can offer the best solution.
(3)Antenna
The cellphone signal booster must attach one indoor antenna and one outdoor antenna by two coaxial cables.
The website's price only includes a signal booster, please contact us if you need one set of devices with antenna, splitter, and coupler.
