Description

DJI AUTEL FPV 1-10 KM 100MHz--6000Hz Drone Detector With 550W 9 Band Automatic Jamming System

1、Overview

Name: DJI AUTEL FPV 1-10 KM 100MHz--6000Hz Drone Detector With 550W 9 Band Automatic Jamming System
Brand: Greetwin
SKU: GW-X1M-OSJ
Availability: InStock
Rating: 5 (1 reviews)

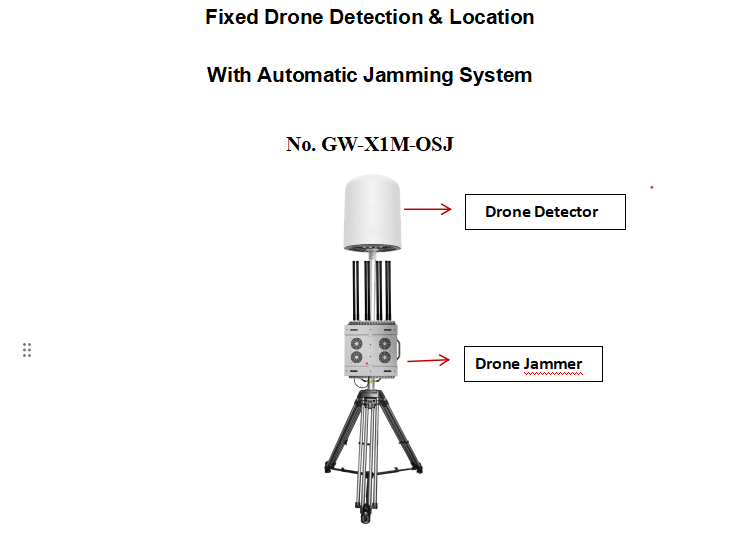

X1M-OSJ is a fixed detection system with comprehensive drone surveillance capabilities. It monitors the S/N code, model, coordinates (longitude, latitude, altitude), speed, home point, flight path, controller coordinates(longitude, latitude) and other information of drones within its range through data mining and deep analysis of drone signals.

X1M is suitable for lower airspace security in scenarios such as governmental venues, critical industrial facilities, military compounds, airports, border control etc. It works independently offline, fits flexibly to various scenarios and supports quick installation. It also works together with multiple devices networked or integration with other counter drone devices such as TDOA system, jamming system and so on to form a more complete counter drone network.

Number	Index	Parameter	Notes
1	Detection and identification of drone types	DJI series drones, FPVs, Xiaomi, Yuneec, Hubsan, Powervision, Tello drones etc.
2	Localizable drone models	DJI mavic、air、mini、FPV、avata, etc.
3	Detection frequency band	100MHz--6000Hz
4	Detection and positioning distance	1~10km	Depending on the environment
5	Detection height	0m~1000m
6	Number of targets that can be detected simultaneously	≥5 sorties
7	Capable of simultaneously tracking and displaying drone trajectories	≥5strip
8	Azimuth error	≤1.5°（RMS）
9	Positioning accuracy	≤10m
10	Detection success rate	≥95%
11	Identify response time	≤5s

Drone Jammer.

Technical Parameters:

Channel	Working frequency	Output power(±1.5dBm)
5.8G	5725-5850MHz	47dBm （50W）
5.2G	5150-5300MHz	47dBm （50W）
2.4G	2400-2500MHz	50dBm （100W）
GPS L1	1550-1620MHz	47dBm （50W）
1.4G	1420-1530MHz	47dBm （50W）
GPS L2	1170-1280MHz	47dBm （50W）
FPV	840-930MHz	50dBm （100W）
FPV	700-840MHz	47dBm （50W）
433MHZ	420-450MHz	47dBm （50W）
Total 9 band, output power: 550W
Power Consumption : 1200W
Power supply: AC220V, DC24-28V
Main engine weight : 45Kg
Size: 513×462×233mm
With omni antenna 9pcs ,

Wide‑Range Detection of DJI & Autel UAVs
Greetwin’s advanced drone detector system scans 100 MHz–6 GHz, identifying FPV signals—DJI, Autel, and mainstream DIY drones—within a 1–10 km radius.
It extracts drone ID, frequency, altitude, speed, and GPS-linked pilot location, enabling real-time situational awareness.
This high-resolution drone detectors platform empowers security teams with instant detection and actionable intelligence in critical zones.

Automatic High-Power Jamming Response
When drones enter the 1–3 km jamming threshold, the integrated 550W 9-band anti drone jammers module engages automatically.
It disrupts drone control, telemetry, and video downlinks across all major FPV frequencies.
Designed for hands-free defense, it instantly neutralizes threats—ideal for continuous security operations—without needing operator intervention.

Precision Geolocation & Pilot Tracking
Combining detection and RF geolocation, this system calculates drone and pilot positions with high accuracy using advanced triangulation.
It displays coordinates and flight paths on-screen, supports black/white lists, and issues real-time alerts—critical for law enforcement
and perimeter protection scenarios that depend on signal jammer detector precision.

Portable and Rugged for Field Deployment
Housed in IP65-rated casing with integrated cooling and internal batteries, the device supports 100–240 V AC or vehicle DC input and weighs under 20 kg.
Rugged and reliable, it withstands extreme conditions for outdoor patrols, checkpoints, and temporary installations.
This field-ready drone detector offers rapid setup and consistent performance across variable environments.

Product Advantages

Dual-Mode Detection & Jamming
This integrated unit combines long-range drone detectors with automatic jamming capability.
Real-time detection and coordinated jamming ensure fast response—simplifying anti drone solutions in surveillance and security operations.

High-Power 550W, 9-Band Module
Featuring a 550W power amplifier covering nine key RF bands, this signal jammer detector supports extensive jamming up to 3 km.
It disables control and video links from FPV drones with high reliability.

Accurate RF Geolocation Technology
Built-in triangulation algorithms deliver precise drone and pilot tracking.
The system visualizes real-time layout, enhances situational control, and supports responsive threat mitigation—a top-tier police drone detector asset.

Rugged & Field-Deployable
With IP65 rating, cooling systems, and battery/AC/DC support, this portable device is built for harsh environments.
Rapid deployment and sturdy construction make it ideal for patrols and event security.

Contact us now for pricing, customization, and delivery timelines on this powerful drone detection and jamming system.
