X1D is a drone detector with drone intrusion alarm, identification, direction-finding and networking location capabilities. One signal device detects and finds drone direction. Multiple XlDs network to locate drones via TDOA (time difference of arrival) algorithm. It emits no signal which makes it interfer-ence-free and suitable for urban environ-ment.

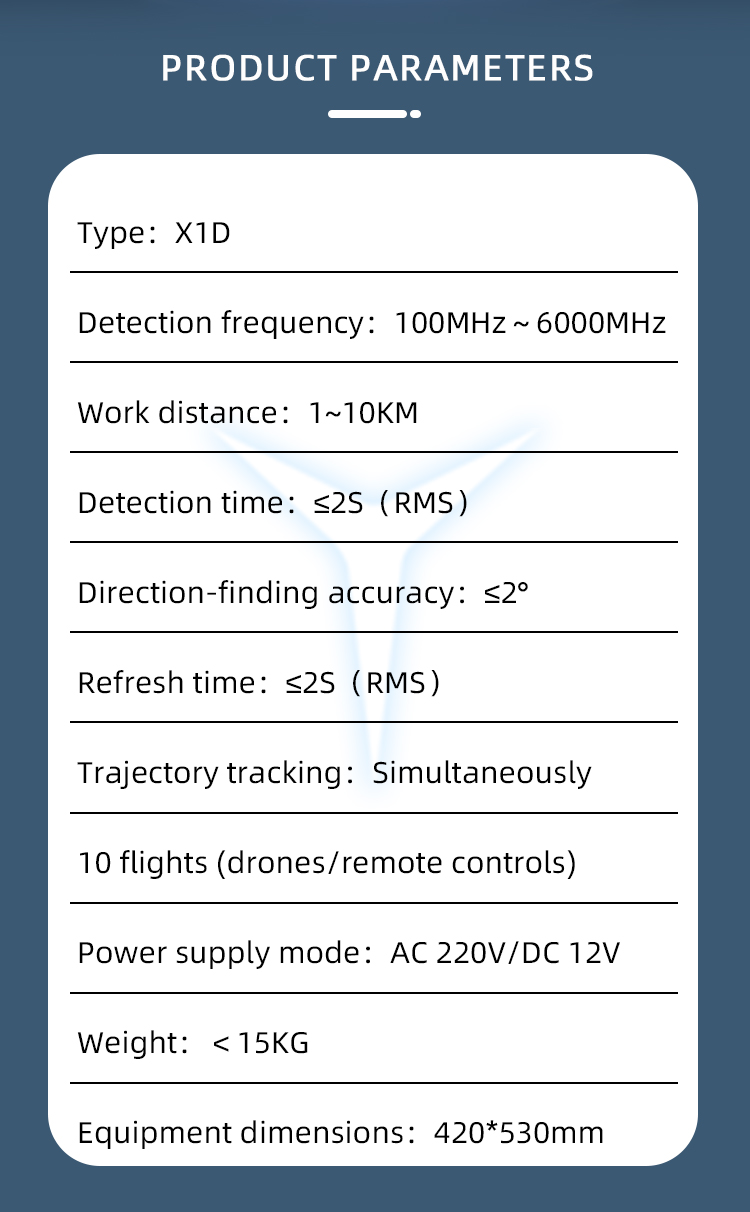

Number |
Project |
Parameter |
Remarks |
1 |
Detection frequency band |
100MHz~6GHz |
|
2 |
Detection distance |
2~5km |
|
3 |
Number of detection targets |
≥20 sorties |
meanwhile |
4 |
Detection mode |
360°Passive detection |
|
5 |
Direction finding frequency band |
2GHz~6GHz |
|
6 |
Direction finding distance |
≥3km |
|
7 |
Number of direction finding targets |
Not less than 3 sorties |
meanwhile |
8 |
Directional accuracy |
~10° |
|
9 |
DF refresh rate |
10-30 times/minute |
|
10 |
positioning accuracy |
≤20m |
|
11 |
Number of positioning trajectories |
≥5 sorties |
meanwhile |
12 |
Scan spectrum range |
100MHz~6GHz |
|
13 |
Detecting and identifying drone models |
Common brands of drones such as DJI, Autel, Fimi, Dahua, and Yuneec, as well as most domestically produced models such as walkthrough and WiFi machines on the market |
|
