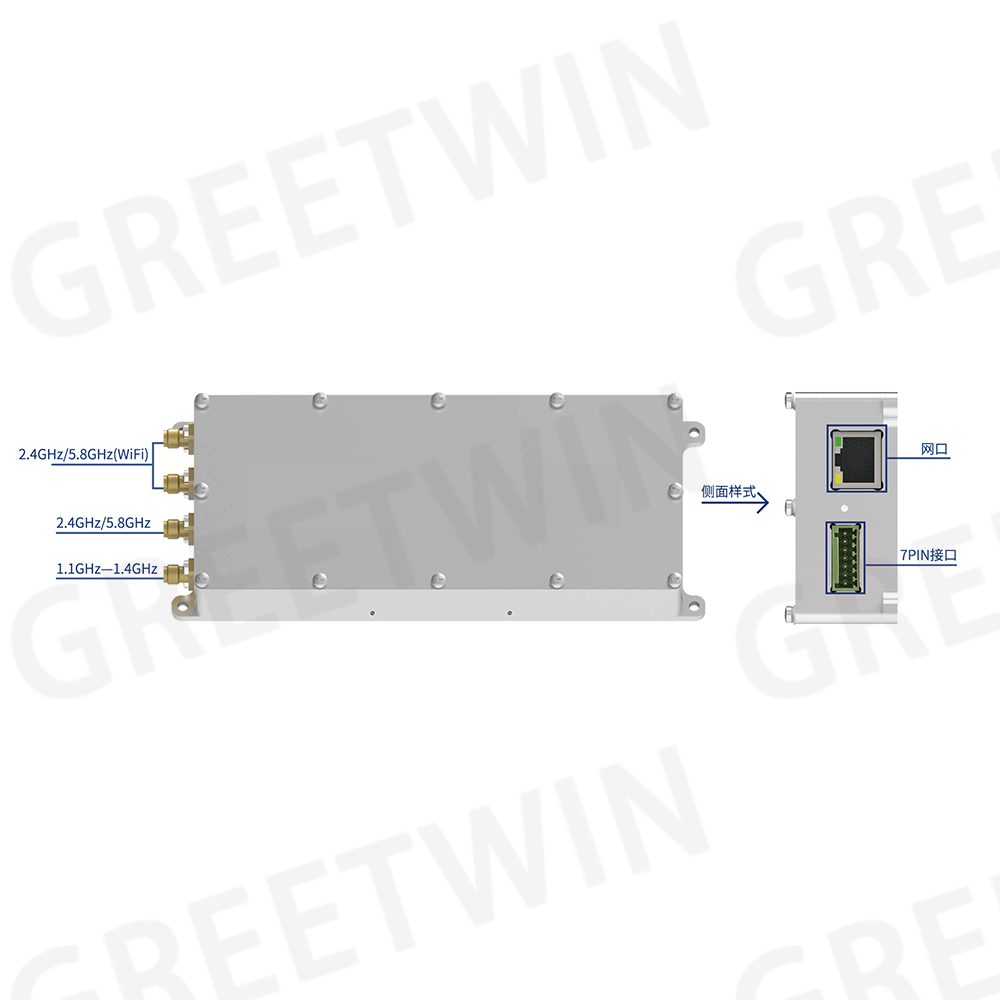

The drone detection module serves as a drone detection and processing platform for drone detection and recognition. The principle is based on spectrum sensing and artificial intelligence technology to identify and classify the flight control links and image transmission links of unmanned aerial vehicles. It can endow other devices with the ability to detect, recognize, and measure the direction of unmanned aerial vehicles, such as fusing with the anti aircraft gun to form a detection and anti aircraft device, thus achieving the integration of detection and anti aircraft.
2、Performance index
|
Number |
Index |
Parameter |
Notes |
|
|
1 |
Detect drone types |
DJI series drones, traversing drones, and DIY image transmission drones |
|
|
|
2 |
Detection frequency band |
900MHz, 1.1G-1.4GHz、2.4GHz、5.2GHz ，5.8GHz |
|
|
|
3 |
Detection distance |
distance（m） |
Antenna gain（dBi） |
The target aircraft is DJI MAVIC air2 |
|
500 |
3 |
|||
|
4 |
Volume |
167mm*83mm*42mm（L*W*H） |
|
|
|
5 |
Weight |
（500±5）g |
Without antenna |
|
|
6 |
Protection level |
IP65 |
|
|
|
7 |
Working temperature |
0~60℃ |
|
|
|
8 |
Identify response time |
≤5s |
|
|
|
9 |
Supply voltage range |
9-36V |
|
|
|
10 |
Power dissipation |
5.5±0.5W |
|
|
