Product Advantages
Design and Modularity for Scalable Integration
The system’s modular architecture supports flexible deployment tailored to site-specific requirements, accommodating various detection and jamming frequency bands. Its robust design allows integration of Black and White List management for selective drone engagement, enhancing operational control. The fixed installation model ensures stable, continuous coverage with minimal maintenance, reflecting best practices among top anti drone companies. This solution’s scalable interface enables seamless expansion or customization, appealing to large-scale security infrastructures requiring adaptable counter UAS capabilities.
Optimized Performance Delivering Operational Efficiency
Performance metrics such as multi-target tracking for 40+ drones, high directional accuracy, and extensive operational temperature range maximize uptime and detection precision. The unattended 7/24 defense mode automates threat response, reducing manpower costs while maintaining persistent security. Usability is further enhanced by intuitive control interfaces and integration compatibility with existing security frameworks. This combination of reliability and efficiency provides end users with a cost-effective anti drone solution that balances operational demands with advanced drone threat mitigation.
| PRODUCT INFO |  |
|
|
Commodity |

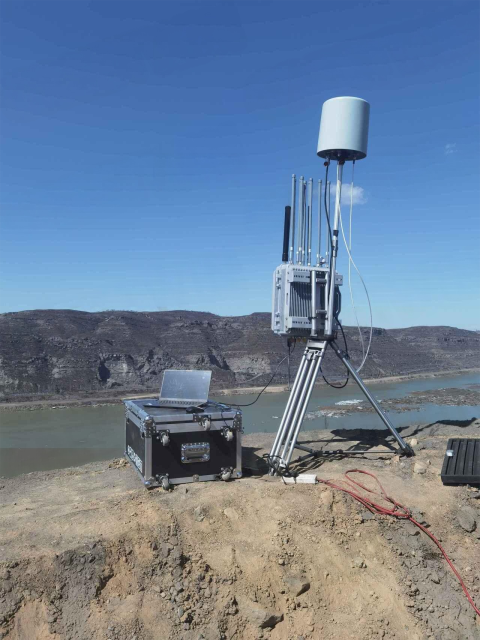

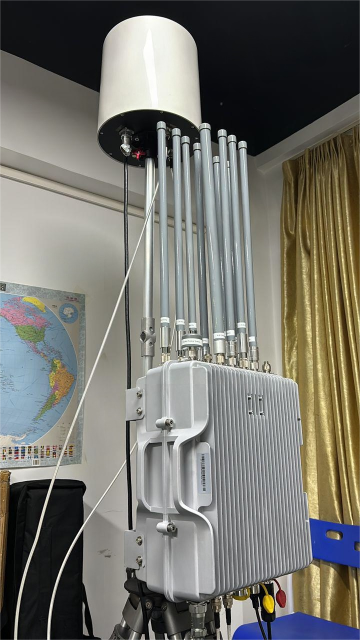

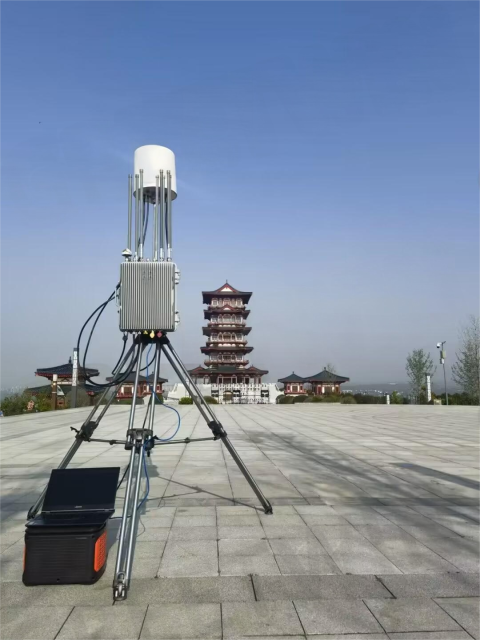

Fixed-Type Drone Detection and Jamming All-in-One System |
|
|
Model |
DFJ |
|
 |
KEY FEATURES |
|
|
Black and White List One-click to mark the black and whitelist, keep the white-list drones free from jamming Unattended Function One-click switch to unattended, automatically defend against drone intrusion for 7/24 hours |
||
|
PRODUCT PERFORMANCE |
||
| Detection Bands |
30MHz~6GHz |
|
| Main Bands |
400MHz, 800MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz (Customization available) |
|
| Detection Radius |
0~5km+(Differences exist due to different environments and drone types) |
|
| Direction Finding Accuracy |
(RMS)3°(hovering); 10°(moving) |
|
| Detection Quantity |
>40 Drones(Simultaneous) |
|
| Jamming Bands |
900MHz，1.5GHz，2.4GHz，5.2GHz，5.8GHz (Customization available) |
|
|
Jamming Radius |
0~3km+(Differencesexistduetodifferentdeploymentenvironmentsanddronetypes) |
|
|
Extended Customization |
Support optional navigation spoofing function |
|
|
Operating Temperature |
-40°C~70°C |
|
Use Scenarios
Counter UAS Implementation in Critical Infrastructure
In critical infrastructure environments—such as power plants and government facilities—the system delivers a crucial role in preventing unauthorized drone incursions that could compromise safety or confidentiality. By providing comprehensive detection across wide frequency bands and proactive jamming capabilities, it ensures compliance with regulatory security standards. Integrated into centralized security command centers, this counter UAS product streamlines incident response workflows and enables real-time situational awareness, critical for maintaining uninterrupted operational integrity within highly sensitive areas.
Enhancing Security at Large-Scale Public Events
During high-profile events or crowded venues, the system functions as a reliable perimeter defense by detecting multiple unauthorized drones simultaneously and neutralizing threats before incident escalation. Its unattended operational mode supports continuous coverage over extended periods without additional personnel requirements. The solution’s compatibility with existing event security systems allows for synchronized alerting and coordinated response efforts. Recognized among leading anti drone companies, this technology is integral to maintaining secure, compliant environments and ensuring public safety during events with elevated drone risks.
What detection and jamming frequency bands does your system support?
Our Fixed-Type Drone Detection and Jamming All-in-One System covers wide frequency bands from 30 MHz to 6 GHz. Main bands include 400 MHz, 800 MHz, 900 MHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, and 5.8 GHz. We also provide customization options to match your site’s unique requirements, delivering flexible anti drone solutions.
Can your system integrate with existing security infrastructure at sensitive sites?
Yes, our system is designed to integrate sensor data and alerts with your current security management platforms. This seamless cooperation enhances your perimeter defense capabilities, providing a unified approach to counter drone threats and ensuring continuous operation in 7/24 unattended mode.
What installation and environmental conditions does the drone detection system tolerate?
Our solution operates reliably within a temperature range of -40°C to 70°C, suitable for harsh outdoor environments. As a fixed-type system, installation requires stable platforms at your perimeter sites to maximize its detection radius of up to 5 km and jamming coverage up to 3 km, ensuring robust counter UAS protection.
Do you offer support and customization for handling multiple drone threats simultaneously?
We support concurrent detection and jamming of over 40 drones, essential for high-threat locations. Our anti drone company offers end-to-end customization from core components to full system integration to suit complex operational needs, backed by experienced technical assistance throughout the project lifecycle.
