5、Drone Jammer introduction

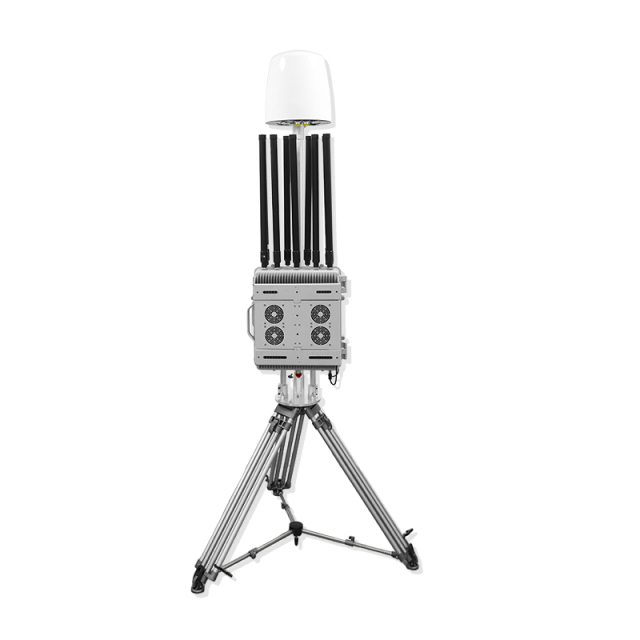

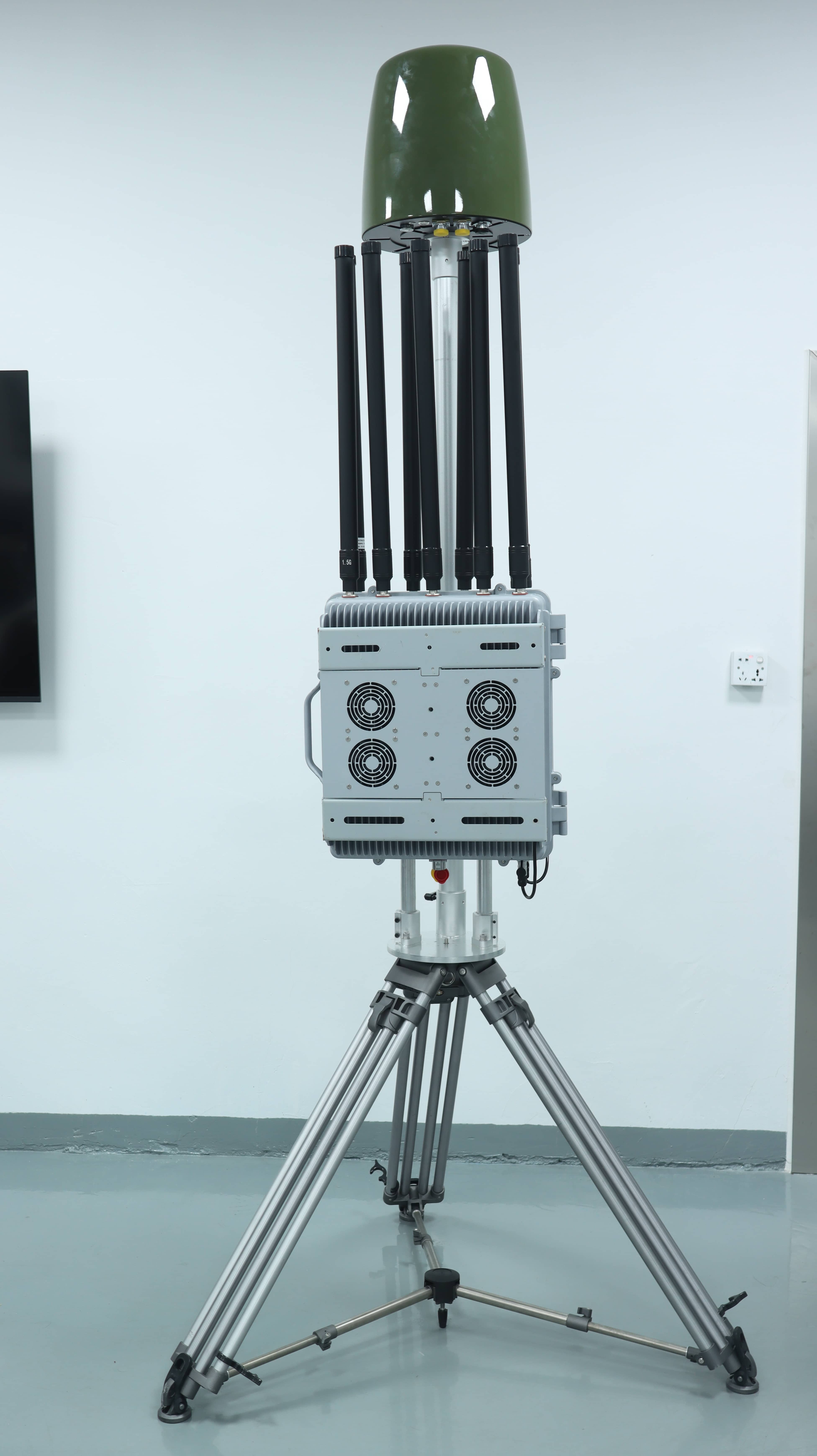

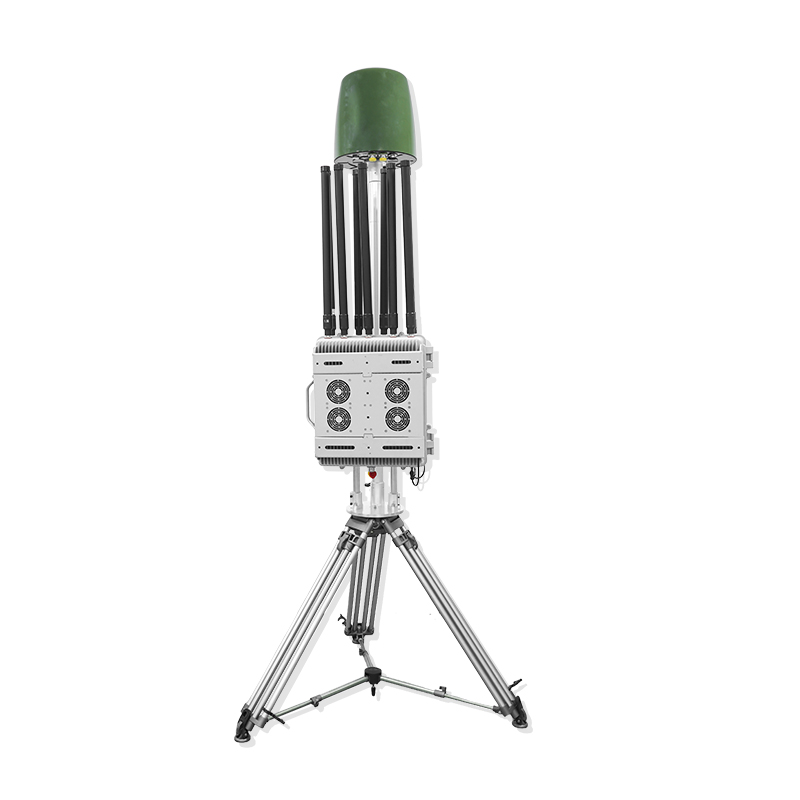

Drone Jammer is the ultimate outdoor anti-drone solution. It’s safe, simple to operate and can be installed at houses, offices, airports important places easily. The device uses focused electronic counter measures to block the drone’s control, GPS and video signals while minimizing the impact on other local devices. It comes with Omni directional antennas to disrupt 7 frequencies used by the majority of commercial drones. With a radius range of up to 3 km. With multiple power outputs the operator can choose if they want the drone to return to home or land. The device does no harm to the drone or its operator. Most commercial drones use 2.4GHz or 5.8GHz for their control and video transmission frequencies.
| Channel | Working frequency | Output power(±1.5dBm) | |
| 2.4G | 2400-2500MHz | 51dBm （100W） | |
| 2.4G | 2400-2500MHz | 47dBm （50W） | |
| 5.8G | 5725-5850MHz | 47dBm （50W） | |
| 5.8G | 5725-5850MHz | 47dBm （50W） | |
| GPS L1 | 1550-1620MHz | 47dBm （50W） | |
| 5.2G | 5150-5350MHz | 47dBm （50W） | |
| GPS L2 | 1170-1280MHz | 47dBm （50W） | |
| 900 | 860-930MHz | 47dBm （50W） | |
| Total 8 band, output power: 450W | |||
| Power Consumption : 1000W | |||
| Power supply: AC220V, DC24-28V | |||
| Main engine weight : 45Kg | |||
| Size: 513×462×233mm | |||
| With omni antenna 8pcs , | |||
| Jammer Module Number : | 8 | ||
| Cooling System: | Systematic Smart Cooling System | ||
| Jamming Source : | Noise Technology | ||
| Humidity: 30%-95% | |||
| Running temperature : -20℃ to +65℃ | |||
| Omni Jamming range: 1 - 3km, according to signal density of mobile network | |||
