Greetwin 8 Band drone jammer and detection DJI FPV system equipment

Item No.: GW-UAV108SDT
Greetwin 8 Band drone jammer and detection DJI FPV system equipment
Description
Description

Product Description

With drone sales expected grow exponentially in the near future, and an increasing number and severity of drone incidents occurring daily, GREETWIN launched Drone jammer Gun to respond tonefarious use of consumer and commercial drones and the resulting need for effective countermeasures to drone intrusions. Drone jammer gun aims to help public and private sector customers, where allowed by law, take proactive measures against airborne threats to safety, security, and privacy.

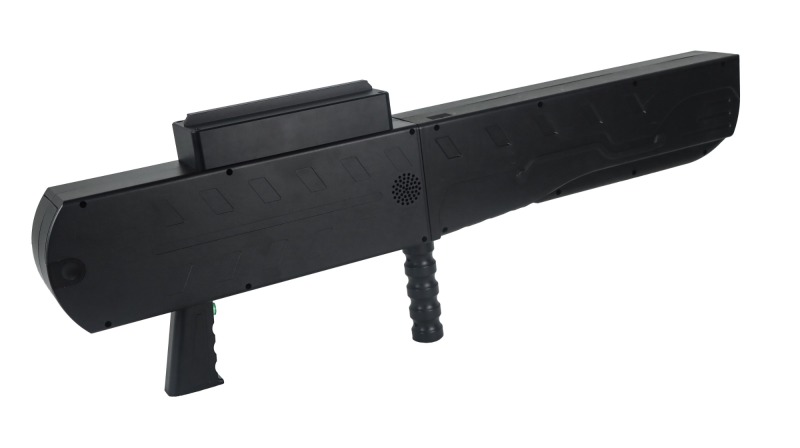

Portable light Drone Jammer, Built-in high gain directional antenna, Built 8 sets of independently operated RF working unit, can choose to on/off GPS to drive the drone or force the drone to land, can be transmitted shielding interference signals to the surrounding 25-degree angle, jamming range (1500-2000m) can be comprehensive and stable uninterrupted shielding of the WIFI 2.4G, 5.8G, 1.5G GPSL1, 900MHz, 1.2G GPSL2, 433MHz, 5.2G bands in the UAV frequency band.

Product Description

Feature:

1. Replaceable battery 10Ah design, operating time 40-50 minutes,

2. Higher gain antenna 16dBi

3. Strong jamming range, 1500-2000meters

4. Inner cooling fan design, Device work continuously

5. Antenna & Main unit can assemble/disassemble easily.

6. Antenna housing is Fireproof and explosion-proof material.

7. 16 x telescope, Anti-vibration, Easy to spot and target drones

8. LED Screen shows battery capacity & voltage.



Parameter

Channel

Working Frequency

Output power(±1.5dBm)

CH1

433MHz

428-438MHz

41 dBm (10W)


CH
2

900MHz

840-960MHz

45 dBm (30W)

CH3

1.2G

1150-1300MHz

41 dBm(10W)

CH4

1.4G

1430-1520MHz

41 dBm(10W)

CH5

1.5G

1560-1620MHz

45 dBm (30W)

CH6

2.4G

2400-2500MHz

46 dBm (40W)

CH7

5.2G

5150-5300MHz

45 dBm (30W)

CH8

5.8G

5700-5900MHz

46 dBm (40W)

Power supply mode

Inside battery: 24V, 10Ah

Or External battery

Battery working time

40-50 minutes

Working temperature

-20ºC to +55ºC

Total Output Power

200W

Power consumption

400W

Weight

6.2KG

Package Size

830*370*240mm

Directional Antenna

16dBi Gain

Detection range

1000-2000m
