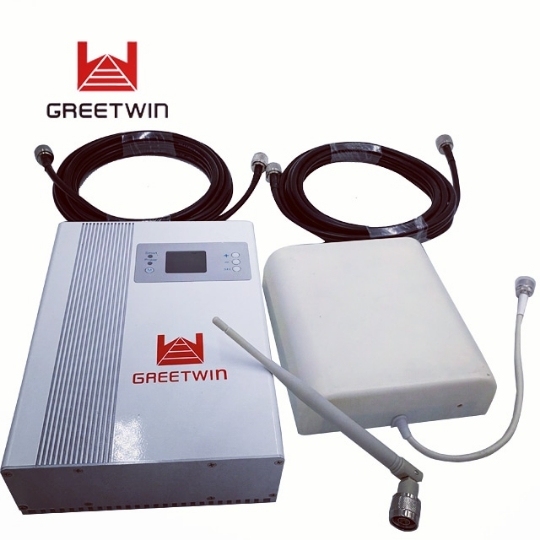

High Quality 23dBm 900 MHz 1800MHz 2G 4G Dual Band Mobile Cell Phone Signal Booster

Item No.: GW-23GD-K
1. AUTO/MANU: Automatic Mode or Manual gain Mode.
2. AGC: Automatic gain control with indicator.
3. ISO: Isolation inspection with indicator.
Description
Description

Product Description

1,Product Details.jpg

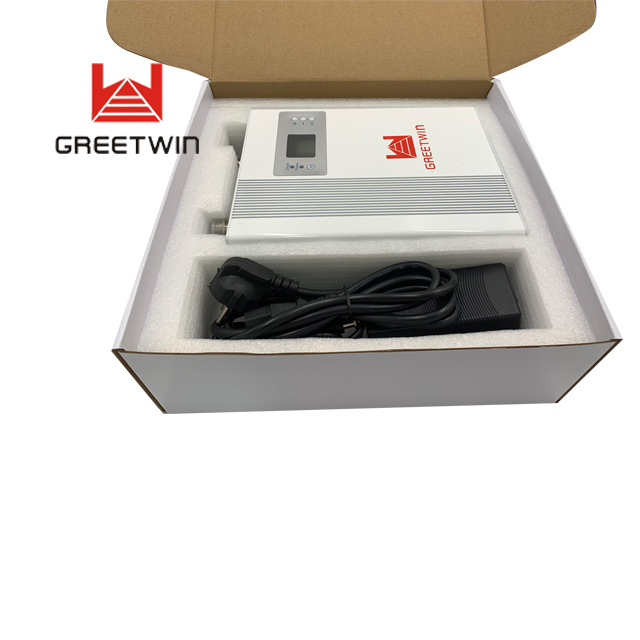

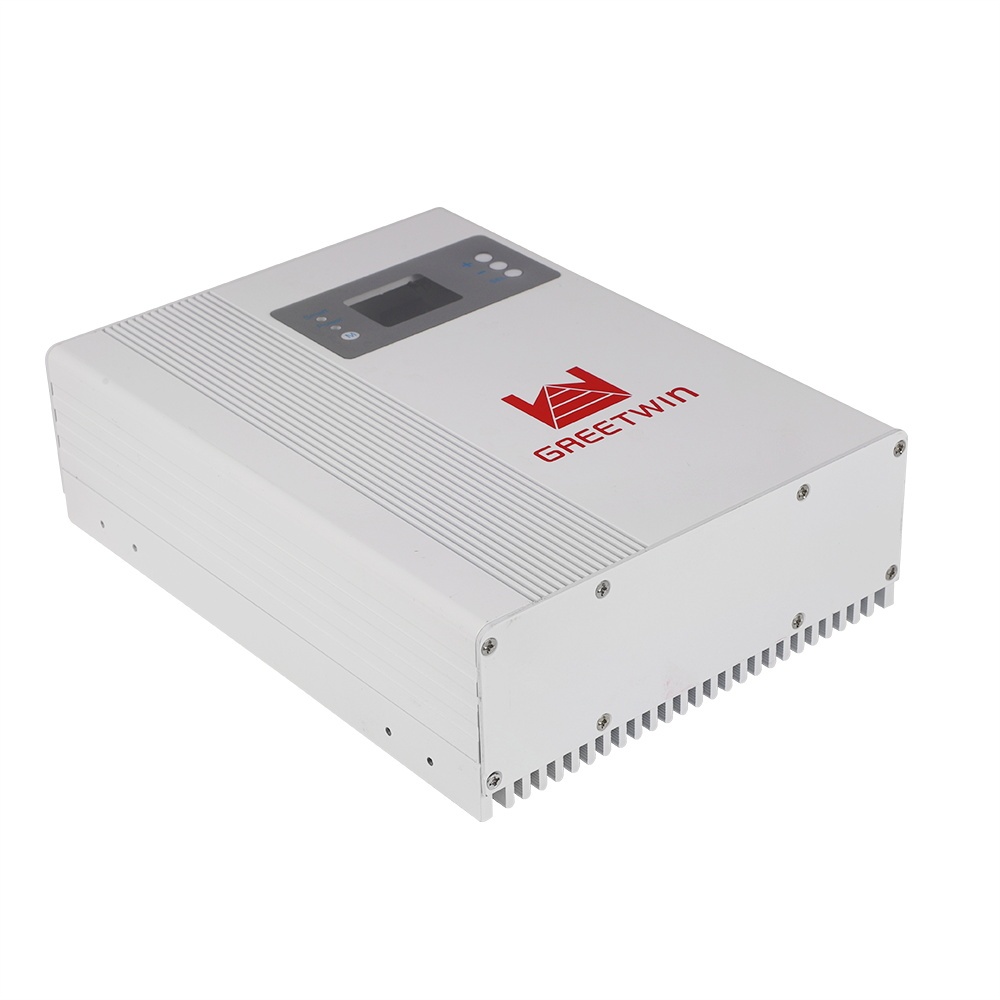

High Quality 23dBm 2G 4G Dual Band Mobile Phone Signal Booster Cell Phone Signal Repeater For 900 MHz 1800MHz

Specification

Uplink

Downlink

Frequency

GSM900

890 ~ 915MHz

935 ~ 960MHz

DCS1800

1710 ~ 1785MHz

1805 ~ 1880MHz

Operation Bandwidth

Wide Band

Gain

≥70dB

≥75dB

Output Power

≥18dBm

≥23dBm

MGC (Manual Gain Control)

31dB Range/1dB step

Ripple in Band

8dB

Noise Figure

≤ 6dB

VSWR

≤2.0

Automatic Level Control

20dB

Intermodulation Products

≤ -40dBc

Spurious Emission

9KHz~1GHz

≤ -36dBm/30KHz

1GHz~12.75GHz

≤ -30dBm/30KHz

Frequency stability

≤ 0.01ppm

MTBF

> 50000 hours

Time Delay

≤1.5μs

Impedance

50Ω

Power Supply

Input: AC 110~240V; Output: DC 9V/5A

LED Alarm

Power LED

DC ON/OFF

Smart LED

Smart function ON/OFF

AGC Alarm

Alarm RED when ALC 5dB-10dB

ISO Alarm

Alarm RED when ALC 20dB-25dB,

Then Repeater will Auto Shut Down.

Auto restart after two minutes.

Mechanical Specification

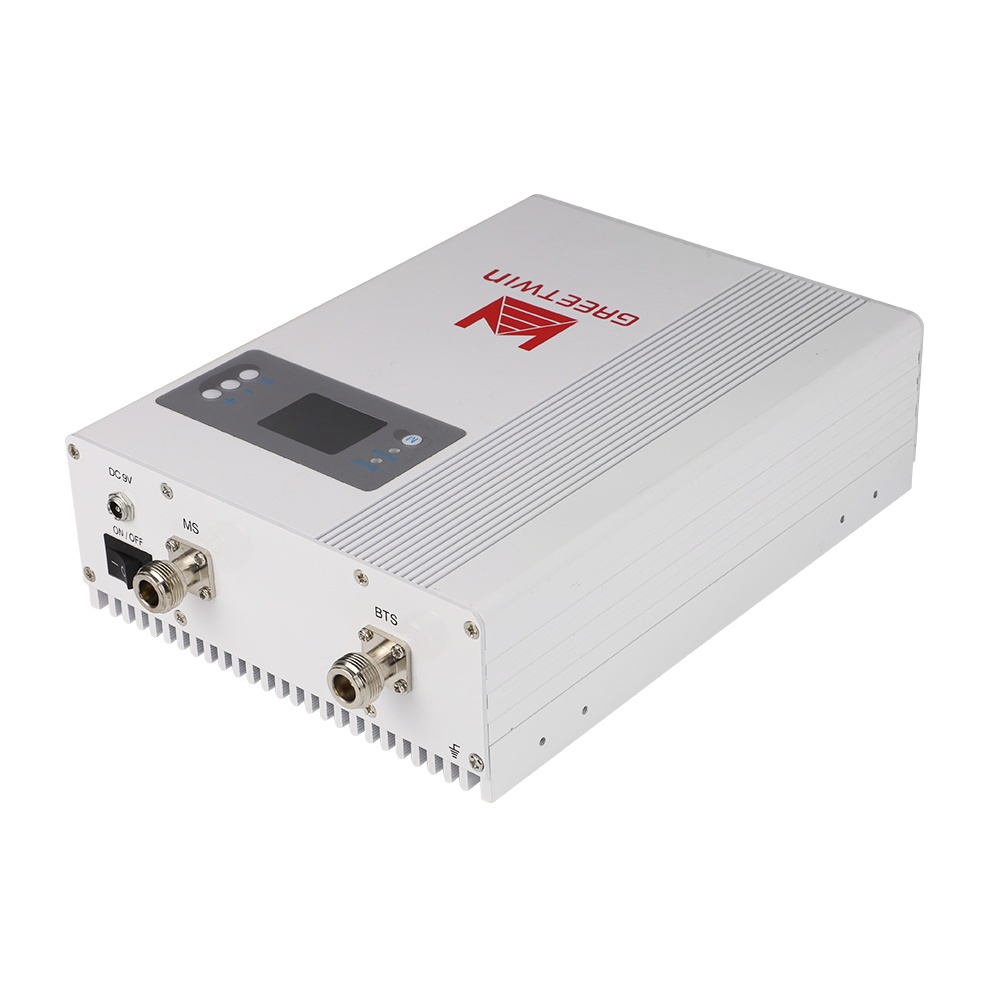

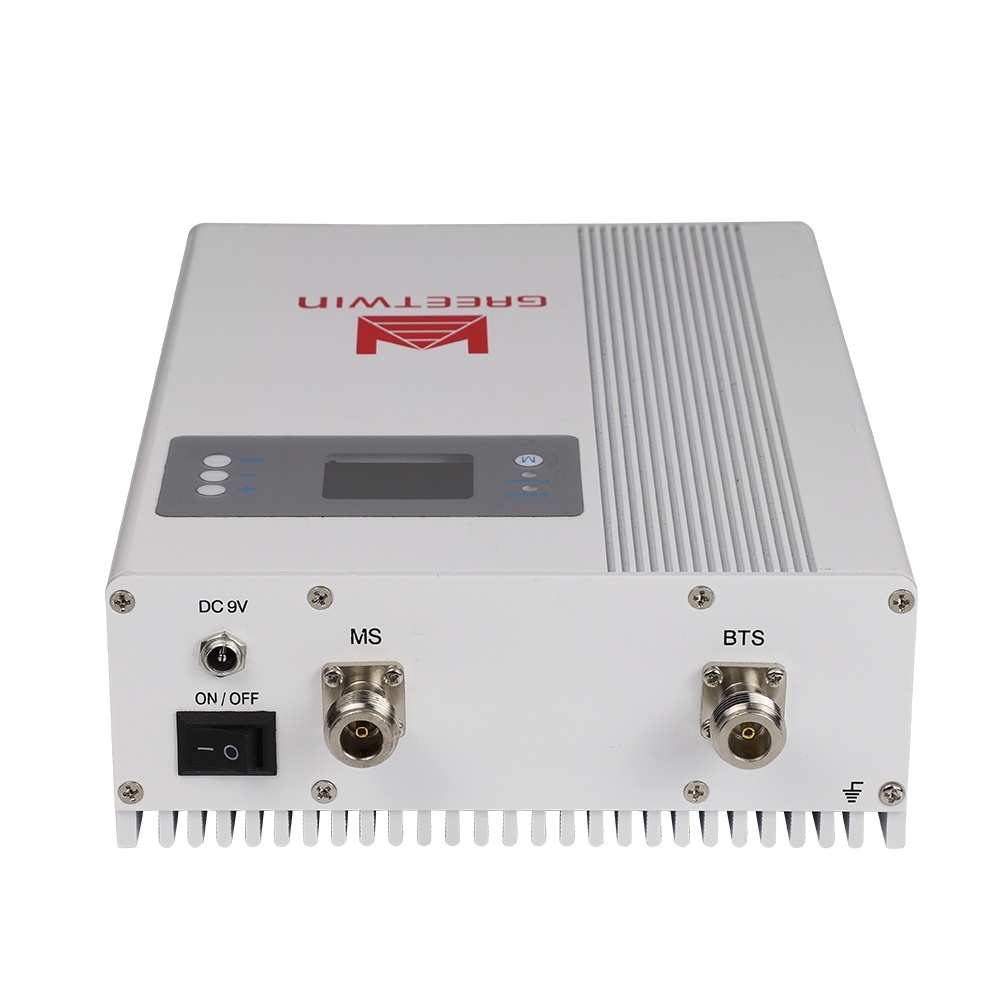

RF Connector

N-Female

Power Consumption

25W

Operating Temperature

-10℃~ +55℃

Environment Conditions

IP40(Indoor)

Installation Type

Wall Installation

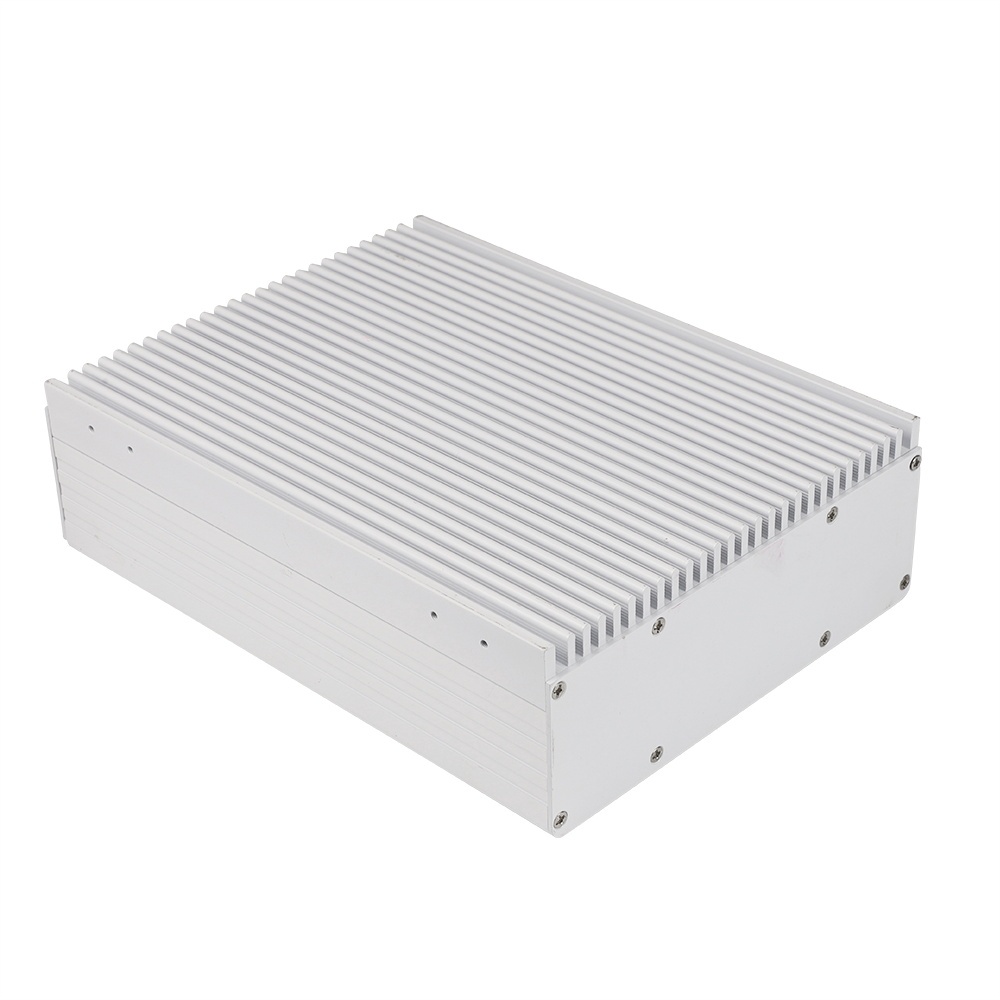

Dimensions (D x W x H )

228*170*65mm

Weight

≤ 4 KG



2,Product Display.jpg











.JPG






User's Manual

user's manual.jpg

Mobile wireless networks offer great convenience to people’s communication. However, people often suffer from communication interruption or failure due to mobile phone wireless signal loss or weakness that are always caused by the shadow effect of wireless signal transmission and the buildings shielding effect on the electromagnetic wave. The situation also exists in remote area with few base stations or beyond base station coverage.

The LCD Repeaters is a newly designed solution with intelligent functions. It is the perfect solution for providing a wireless improvement in the cellular reception of a home, office, restaurant, building or shopping mall. The covering area is ranging from 300 to 1000 square meters.



The LCD Repeater covers all existing wireless public communications networks:

(E)GSM 900MHz, DCS/LTE 1800MHz.



The LCD Repeaters have many intelligent functions: such as antenna isolation detection, Input & Output signal strength indication, system indication, manual gain control and smart mode. See the detailed introduction listed below:

.jpg

   The Display will auto off if don't touch it in one minute.



1. “GREETWIN”is Company LOGO.

2. Power: Power supply with indicator.

3. Smart: Smart function with indicator. AUTO Mode now.

4. M :  “AUTO” switch to “MANU”.

5. Sel: Select the working systems ,

long press the button for 2s , will enter into 900M. then setting the gain.

then set the gain 65dB, long press the button for 2s again. 65dB was confirmed.

6. 900MHz: Show the current working system. Press “Sel” to change to the different system for operation.

7. AUTO/MANU: Automatic Mode or Manual gain Mode.

8. AGC: Automatic gain control with indicator.

9. ISO: Isolation inspection with indicator.

10. 63dB/68dB:  gain of the working system.

11. 0dBm/0dBm: outpower of the working system.

12. UL is Uplink, DL is downlink. “+” is increasing the gain, “-” is decreasing the gain.



Features:

1. Isolation Inspection. When first power on the repeater, the device will automatically detect the isolation between the donor antenna and service antenna. The users could easier see the status and make the adjustment accordingly.

2. Input&Output Signal Strength Indication. The specific number of uplink and downlink measured in Output Power(dBm). Easy for users’ understanding.



3. Manual Gain Adjustment. The users or engineers could reduce the gain of the repeater manually via the buttons below the screen. The uplink and downlink gain could be set independently. “+” is increasing the gain, “-” is decreasing the gain.



4. Automatic Gain Control. Automatic Gain Control (AGC) is a dynamic gain adjustment feature with 31dB range.



5.Smart Mode = AUTO Mode. The repeater could automatically change the gain according to the specific environment when the smart function is on. Please note that when the SMART is on, users could not able to set the gain manually. Gain reduce 31dB automatically at first, then AGC Alarm RED when AGC control 5dB-10dB, ISO Alarm RED when AGC control 20dB-25dB, Repeater will Auto Shut Down. Auto restart after two minutes.



6. MANU Mode, users can set the gain manually. AGC Alarm RED when AGC control 5dB-10dB ;

ISO Alarm RED when AGC control 20dB-25dB, Repeater will Auto Shut Down.

Auto restart after two minutes.



7. Auto Shut Down = ISO. Auto Shut Down is a stage that temporarily stops the RF function. If the input power reduces to a safe range for the repeater to operate, the software would power the repeater back on and restore all functions promptly. However, if the input power remains too great and dangerous for the network, it will then shut down completely. In such case, the signal is too strong for the usage of the repeater.



Application Diagram:

.png
