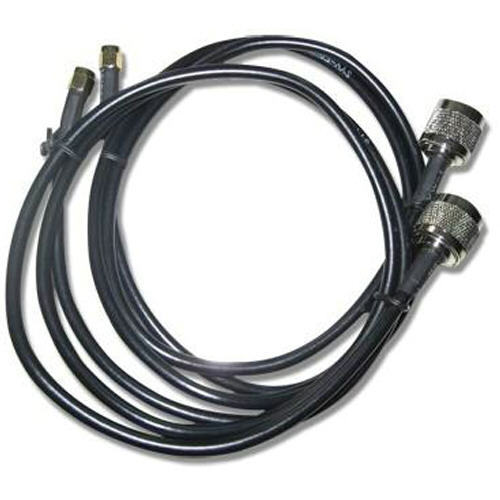

High Quality Coaxial Cable China Manufacturer (7D-FB Coaxial Cable)

Item No.: 00173
Description Specifications
Description

Product Features:
1.Good quality, competitive price
2.CE RoHs certification

Specifications
1) Construction
Center Conductor: 2.60mm Solid Copper
Dielectric: 7.30 + 0.02mm Foam PE
Shield: Bonded Al Foil
Braid Coverage: 85%TC
Jacket: 8.20 + 0.10mm PVC
Jacket Thickness: 0.80mm


2) Characteristics
Inner Conductor Resistance: 1.83 ohm/km
Dielectric Withstand Voltage: 1000 ACV/min
Impedance: 50 + 2Ohm
Capacitance: 85 + 3nF/Ft (Nom.)
Echo Loss: VHF: 20 dB/ UHF 18 dB


3) Attenuation
Attenuation At 68ºF, or 20ºC
Frequency (MHz) Nom.(dB/100M.)
150 5.30
280 7.30
350 8.30
400 9.10
800 13.00
900 14.30
1200 17.00
1500 19.70
1900 22.90
2500 27.30
3000 30.70
3500 34.10
4500 40.50
5500 46.60
6000 49.50


More Choices
 Attenuation                                          At 68ºF, or 20ºC
Frequency 4D-FB 5D-FB 7D-FB 8D-FB 10D-FB 12D-FB
(MHz)
150 10.00 7.80 5.40 5.20 4.10 3.60
200 11.50 9.10 6.30 6.10 4.80 4.20
280 12.90 10.90 7.50 7.30 5.50 4.60
350 16.50 12.20 8.40 8.20 6.20 5.20
400 17.60 13.00 9.00 8.60 7.00 6.00
800 23.60 18.90 12.80 12.30 10.00 8.30
900 24.50 20.00 14.10 13.00 11.00 9.30
1200 28.30 24.00 16.80 16.50 13.20 10.70
1500 33.50 27.20 19.20 18.70 15.30 11.80
1900 37.70 31.30 22.40 21.70 17.20 13.80
2000 38.70 32.50 23.20 22.50 17.80 14.40
2400 42.60 35.80 25.70 24.80 19.60 15.90
3000 48.60 40.90 29.50 28.40 22.50 18.30
