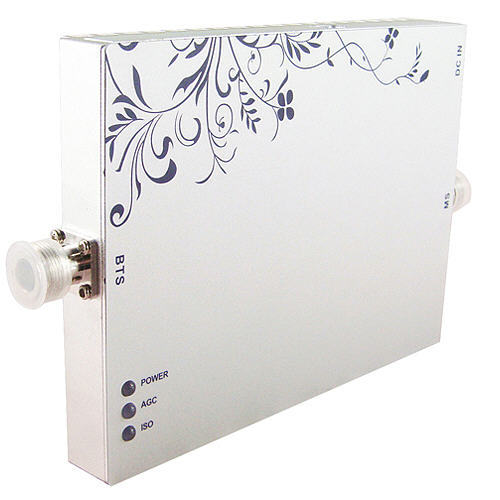

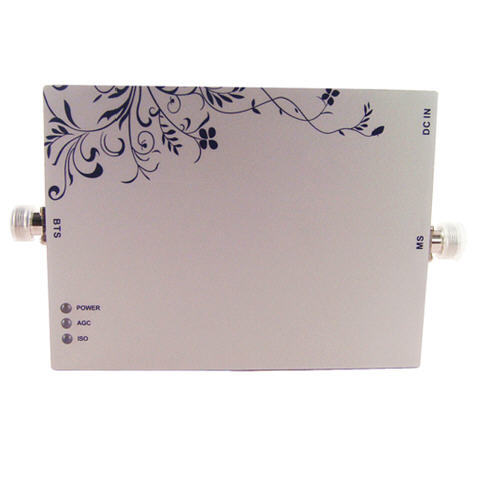

Pre-Amplifier for Dcs1800 Repeater 20dBm Single Booster Good Helper of Repeaters

Item No.: 00131
Description Specifications
Description

GW-20PA(DCS)

1. Wide band pre-amplifier to support all signals
2. ETSI & 3GPP 3GPP2 standards
3. Enough UL power level of 20dBm to reach BTS
4. UL AGC 10dB range to ensure high linearity
5. UL IM3 meets with ETSI 3GPP 3GPP2 standards
6. Alarm LED's for error detection
7. Universal power range of 90V~265V
8. Elegant designlight weight low power consumption

Description

Pre-amplifier is utilized when the input power of the repeater is weaker than the suitable power level, pre-amplifier will boost the input signals to a certain reasonable level, so that the repeater can reach its full output power for a much larger coverage size.
Pre-amplifier has also been largely deployed to assist the Pico repeater operation in rural areas. As it is known, the Pico repeater only gets 5~15dBm output power in UL, so when the repeater site is too far away from the BTS tower, the mobile phone signals would not be strong enough to go back. Typical phenomena is that people can see full bar signals on the mobile phone, but the phone calls can't be initiated. So a pre-amplifier with 20dBm output power in UL would increase the UL power level of the repeater so that the signals can reach BTS tower.
pre-amplifiers are available in single, dual and triple mobile band , i.e., not only we have pre-amplifier able to amplify one GSM900 band , but also a triple band  one to support GSM900, DCS and WCDMA at the same time.
It supports all current technologies of GSM850, GSM900, DCS, PCS; CDMA450, CDMA800, CDMA1900, CDMA2000, WCDMA2100 and AWS
Though it supports up to triple band , the pre-amplifiers are still compact size, elegantly looking with low power consumption.

Specifications
Electrical specification Uplink Downlink
Frequency Range CDMA800 824 ~ 849 MHz 869 ~ 894 MHz
CDMA1900 1850 ~ 1910 MHz 1930 ~ 1990 MHz
GSM850 824 ~ 849 MHz 869 ~ 894 MHz
GSM900 & EGSM 880 ~ 915 MHz 925 ~ 960 MHz
DCS 1710 ~ 1785 MHz 1805 ~ 1880 MHz
PCS 1850 ~ 1910 MHz 1930 ~ 1990 MHz
WCDMA 1920 ~ 1980 MHz 2110 ~ 2170 MHz
AWS 1710 ~ 1755 MHz 2110 ~ 2155 MHz
MAX. Gain ≥ 15dB
Output Power ≥ 20dBm ≥ 0dBm
Band width (-3dB) Wide band
Automatic Level Control ≥ 15dB
Noise Figure -- ≤ 6dB
Group Delay ≤ 1.5μs
Frequency stability ≤ 0.01ppm
LED  Alarm Standard
Power LED Power Indicator
ALC LED Red @ ALC 15dB
Mechanical  Specifications Standard
I /O Port SMA-N Female
Impedance 50 ohm
Operating Temperature -25ºC~+55ºC
Environment Conditions IP40
Dimensions 204mm×128mm×27mm
Weight ≤ 1.5 Kg
Power Supply Input AC90~264V,output DC9V / 3A
