Real-time Gain Show In LCD Display 23dBm LTE800 1800MHz Dual Band Smart Mobile Signal Booster 3G 4G gsm Signal Amplifier

INQUIRY
Description

Real-time Gain Show In LCD Display 23dBm LTE800 1800MHz Dual Band Smart Mobile Signal Booster 3G 4G gsm Signal Amplifier



Product Description




_ - _

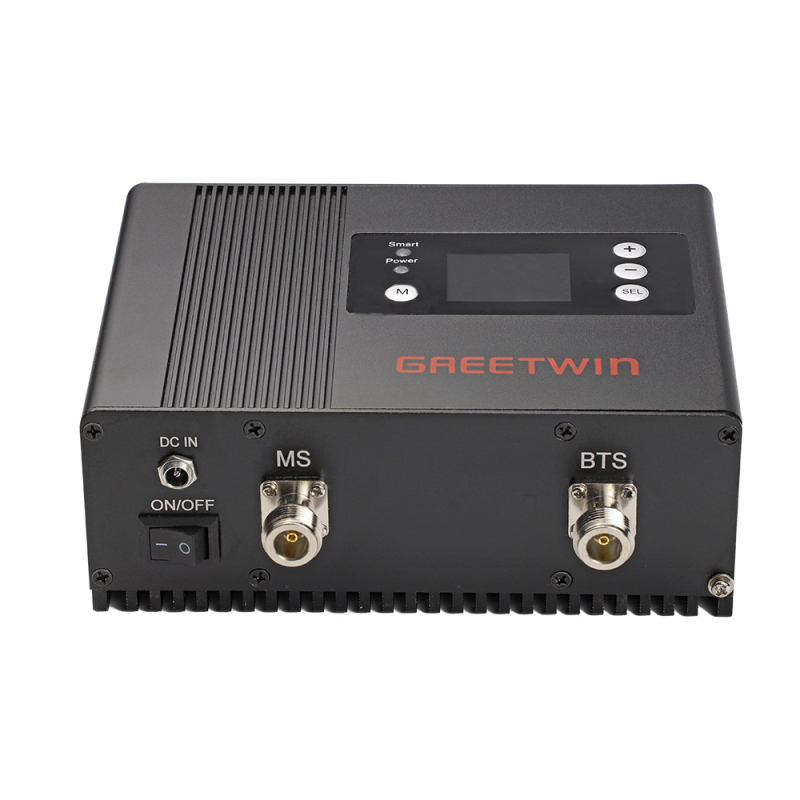

 The Display will auto off if don't touch it in one minute.



1. “GREETWIN”is Company LOGO.

2. Power: Power supply with indicator.

3. Smart: Smart function with indicator. AUTO Mode now.

4. M :  “AUTO” switch to “MANU”.

5. Sel: Select the working systems ,

long press the button for 2s , will enter into 900M. then setting the gain.

then set the gain 65dB, long press the button for 2s again. 65dB was confirmed.

6. 900MHz: Show the current working system. Press “Sel” to change to the different system for operation.

7. AUTO/MANU: Automatic Mode or Manual gain Mode.

8. AGC: Automatic gain control with indicator.

9. ISO: Isolation inspection with indicator. with Auto shut down.

10. 63dB/68dB:  Real-time gain show in the LCD display.

11. 0dBm/0dBm: Real-time outpower show in the LCD display.

12. UL is Uplink, DL is downlink. “+” is increasing the gain, “-” is decreasing the gain.

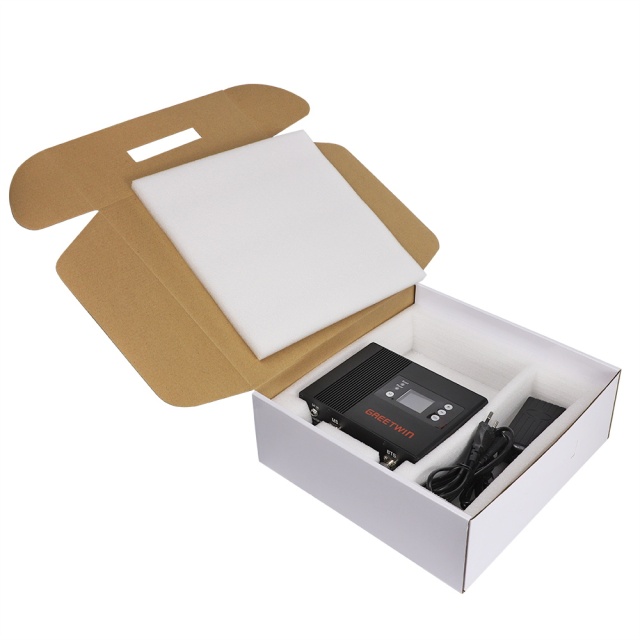

IMG_1174Package

Repeater:

Specification Uplink Downlink
Frequency LTE800 832~ 862MHz 791 ~ 821MHz
DCS1800

1710 ~ 1785MHz

1805 ~ 1880MHz
Operation Bandwidth Wide Band
Gain ≥70dB ≥75dB
Output Power ≥18dBm ≥23dBm
MGC (Manual Gain Control) 31dB Range/1dB step
Ripple in Band 8dB
Noise Figure ≤ 6dB
VSWR ≤2.0
Automatic Level Control 25dB
Intermodulation Products ≤ -40dBc
Spurious Emission 9KHz~1GHz ≤ -36dBm/30KHz
1GHz~12.75GHz ≤ -30dBm/30KHz
Frequency stability ≤ 0.01ppm
MTBF > 50000 hours
Time Delay ≤1.5μs
Impedance 50Ω
Power Supply Input: AC 110~240V; Output: DC 9V/5A
LED Alarm Power LED DC ON/OFF
Smart LED Smart function ON/OFF
AGC Alarm Alarm RED when ALC control 5dB-10dB
ISO Alarm

Alarm RED when ALC control 20dB-25dB

Then Repeater will Auto Shut Down

Auto restart after two minutes

Mechanical Specification
RF Connector  N-Female
Power Consumption 20W
Operating Temperature -20℃~ +55℃
Environment Conditions IP40(Indoor)
Installation Type Wall Installation
Dimensions (D x W x H ) 125*170*65mm
Booster Net Weight 1.52kg
Booster With Power Supply 2.5kg
Full sets with antenna and cable 3.5kg
