Targeted Counter-Drone Solution for Security Professionals
This 100W Wide Band 2100-2700MHz 1500-2100MHz 1100-1500MHz Lora RF Drone Jammer Module targets advanced security operators and defense integrators requiring multi-band drone signal disruption. Its broad coverage addresses the frequencies commonly used in commercial and tactical drone communications. By incorporating a digital Lora MCU for dynamic pseudo-random interference, this module supports scenarios demanding rapid deployment and adaptability in environments where drone threats must be neutralized. Compatible with vehicle mounts or portable configurations, it suits law enforcement, military, and critical infrastructure protection sectors needing reliable electronic countermeasures.
Advanced Engineering and Measurable Specifications
The module delivers continuous 100W output power across a wide frequency spectrum: 1100-1500MHz, 1500-2100MHz, and 2100-2700MHz. It employs an integrated digital Lora MCU enabling pseudo-random signal interference patterns, enhancing anti-detection capability. Optional configurations include VCO, DDS, or SDR modules for customized jamming profiles tailored to specific operational requirements. Encased in a compact aluminum housing with VSWR protection, it sustains performance within -20°C to +65°C temperature ranges. Dimensions of approximately 150×80×22 mm and a weight near 800 grams enable versatile system integration. The 28V working voltage and 3-28V input range accommodate standard power supply configurations with enable control for precise operational management.
Industry Applications and Operational Impact
This 100W Wide Band 2100-2700MHz 1500-2100MHz 1100-1500MHz Lora RF Drone Jammer Module addresses emerging needs in drone defense across multiple sectors including event security, military testing facilities, and government critical infrastructure. Its ability to generate stable, wideband interference supports applications such as field anti-drone demonstrations, protective vehicle deployments, and rapid-response security operations in no-fly zones. Furthermore, it enables R&D environments to simulate drone-control resistance accurately, aiding technology refinement. By integrating with broader RF security ecosystems, this module contributes measurable value in mitigating risks associated with unauthorized unmanned aerial systems.
Product Advantages
Robust Modular Design for Flexible Integration
Structurally, the 100W Wide Band 2100-2700MHz 1500-2100MHz 1100-1500MHz Lora RF Drone Jammer Module offers a rugged aluminum enclosure optimized for thermal stability and field conditions. Its compact footprint and approximately 800 g weight support versatile mounting, whether portable or vehicle-installed. The inclusion of an internal circulator with VSWR protection safeguards the RF front end from reflected power, enhancing device longevity. Integration flexibility is furthered by configurable power inputs ranging from 3V to 28V with enable control, accommodating diverse operational power architectures. Optional VCO, DDS, and SDR customization elevate system adaptability for tailored mission profiles, facilitating modular deployment in complex counter-drone frameworks.
High Performance and Operational Usability
Performance-wise, the module consistently delivers 100W continuous power output across three critical frequency bands, ensuring effective disruption of standard drone control communications. Employing a digital Lora MCU for pseudo-random interference patterns enhances jamming efficacy while complicating counter-countermeasures. The device operates reliably across a wide temperature range (-20°C to +65°C), crucial for sustained outdoor and mobile use. Compact dimensions and lightweight design contribute to ease of deployment and integration into existing RF security platforms. This combination of power, precision, and configurability maximizes operational ROI, meeting the stringent demands of professional security and defense environments.

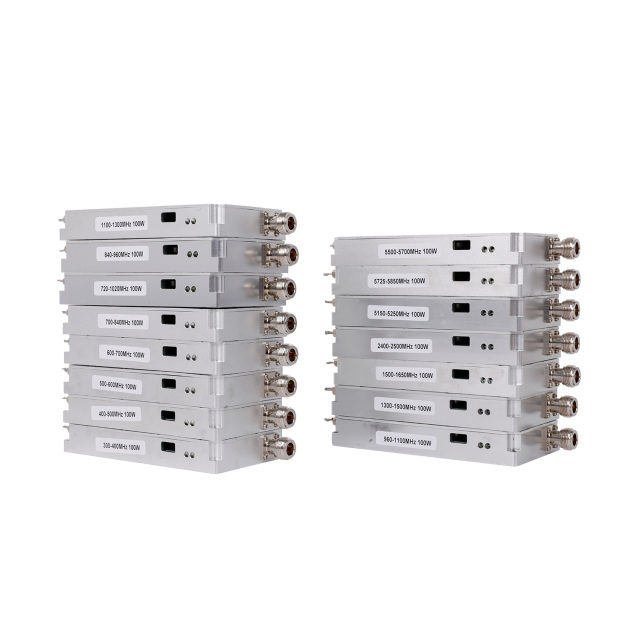

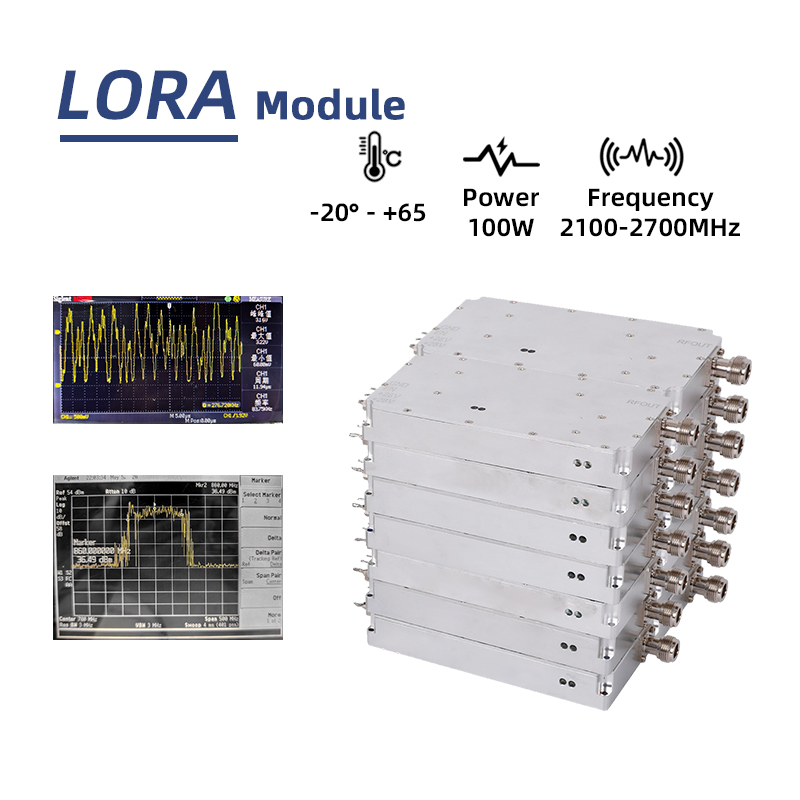

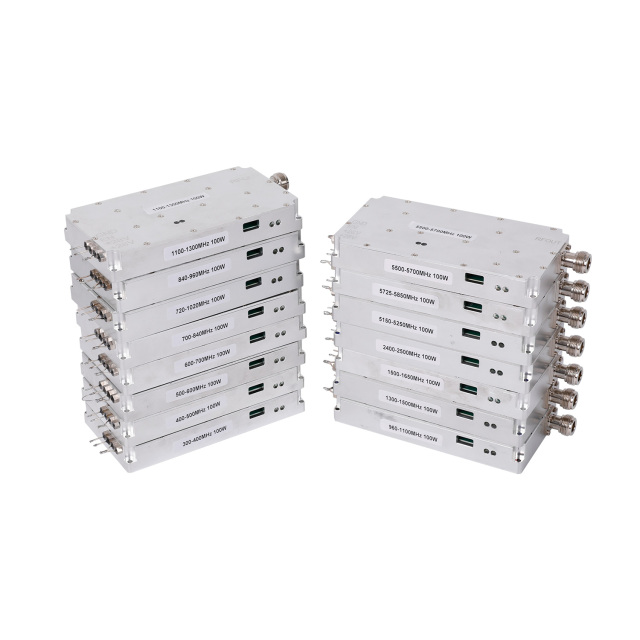

100W Wide Band 2100 - 2700MHz 1500-2100MHz 1100-1500MHz Lora RF Drone Jammer Module
| Item |
Spec. |
Remarks |
| Frequency Range |
2100-2700 MHz |
Bandwidth Range±10MHz |
| Working Voltage |
28V |
28V |
| Working current |
≤ 9A |
output 100W |
| Sweeping speed |
220 KHz |
Can customize 100-500KHz |
| Digital Lora |
MCU |
Pseudo random interference / LORA
|
| Output Power (Max) |
50±1 dBm |
100W |
| Gain (Max) |
50±1 dB |
|
| Ripple in Band |
≤ 4 dB |
Peak |
| Bandwidth adjustment |
Yes |
By screw |
| Center adjustment |
Yes |
By screw |
| Enable control |
Customize |
3-28V |
| Input power (Max) |
≤ +10dBm |
Optional (If signal source from Subscriber) |
| Input Signal Source |
Built-in high-speed noise modulation signal source |
Optional
(can customize VCO, DDS or SDR)
|
| Output VSWR |
≤2.0 |
Inside circulator, VSWR protect
|
|
High Low
Temperature test
|
Working Temperature
|
-20～+65℃ |
Working properly
|
|
Gain Stability
|
±1 dB |
at
-20℃～+65℃
|
|
Power stability
|
±1 dB |
at
-20℃～+65℃
|
|
Power supply Port
|
Positive and negative lines |
28V GND;
(optional: Enable control wire)
|
|
Shell Material
|
Aluminum with natural color oxide sand blasting |
|
|
Vibration Need
|
Meet the load need of moving vehicle |
|
|
RF output connecto
|
N-Female |
|
|
LED indicator light
|
Power ON/OFF |
|
|
Dimension
|
150*80*22mm |
|
|
Installation Dimension
|
144.3*74*22 mm |
|
|
Screw Size
|
M2.0 |
|
|
Weight
|
800g |
|
FAQWhat frequency bands are covered by the 100W Wide Band 2100-2700MHz 1500-2100MHz 1100-1500MHz Lora RF Drone Jammer Module?The 100W Wide Band 2100-2700MHz 1500-2100MHz 1100-1500MHz Lora RF Drone Jammer Module covers wide frequency ranges of 1100-1500 MHz, 1500-2100 MHz, and 2100-2700 MHz. This coverage allows effective jamming of common drone control and communication signals across multiple bands.Can the 100W Wide Band Drone Jammer Module be customized for specific applications?Yes, the module offers customization options such as VCO, DDS, or Software-Defined Radio (SDR) for tailored jamming profiles. These options enable precise interference control to suit diverse industrial and security requirements, enhancing flexibility in deployment scenarios.What are the installation and power requirements for this drone jammer module?The compact module measures approximately 150×80×22 mm and weighs around 800 g, suitable for portable or vehicle-mounted use. It operates on a 28V power supply with a range of 3-28V input and includes enable control, ensuring compatibility with various power systems in industrial settings.What materials and protections are integrated to ensure durability and stable operation?Constructed from an aluminum enclosure with natural color oxide sand blasting, the module features an internal circulator with VSWR protection. It supports stable operation in temperature ranges from -20°C to +65°C, ensuring reliability in harsh environments and continuous security operations.
