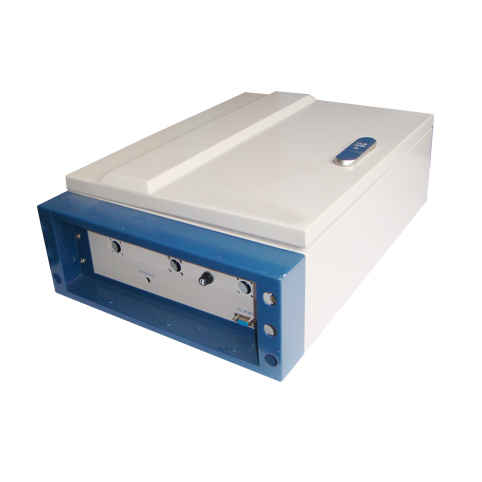

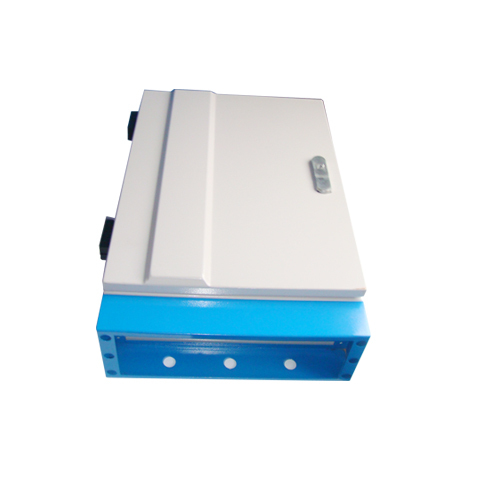

10W CDMA 450MHz Band Selective Repeater /Wireless Phone Booster/Mobile Signal Amplifier (GW-40BSRC450)

Item No.: 00194
Description Specifications
Description

Model:
33dBm, GW-33BSRC450
37dBm, GW-37BSRC450
40dBm, GW-40BSRC450
43dBm, GW-43BSRC450


The Single-Band RF Repeater (RFR) is the kind of repeater used most frequently. It has a simple structure to transparently convey and amplify the wireless signal (at the same frequency) between the BTS (Base Transceiver Station) and mobiles in single wireless network.
The Single-Band RFR is working as a relay between the BTS and mobiles. It picks up the signal from the BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna (or the Indoor Signal Distribution System) to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.

As per operator's requirement for working frequency, two types of Single-Band RFR are available:
*Band-Selective Single-Band RF Repeater: To amplify all signals in the whole band (bandwidth is customized);
*Channel-Selective Single-Band RF Repeater: To amplify only the signals transmitted in the customized 1 / 2 /4 / 8/ 12 /16 channels.

Features:
* Aluminum-alloy casing with IP65 protection has high resistance to dust, water and corroding;
* Highly selective channel selector can process multiple channels simultaneously;
* No interference to BTS by adopting linear amplifier with high gain and low noise;
* Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink;
* USB port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeater's working status and download operational parameters to the repeater.
Support 410-414Mhz, 420-424Mhz, etc.

The RF Repeater is mainly applicable to such case:
*The repeater can find an installation place which can receive pure BTS signal at strong enough level and can meet the requirement of isolation to avoid self-oscillation;
*And the distance between the BTS and the area to be covered is 2km around.

In comparison with FSR (frequency shift repeater) and FOR (fiber optic repeater), the RFR has the following benefits and disadvantages:
Pro:
Easy to build the installation site;
Lower cost of equipment and site-building.

Con:
*Inappropriate installation may cause self-oscillation;
*The Coverage Antenna shall face against the Donor Antenna, which limits the coverage angle;
* High signal noise may be introduced since the Donor Antenna picks up signal from the air;
*The repeater shall be installed within the coverage of BTS.

Application:
To expand signal coverage of fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, etc
Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, highways

Specifications
Working Frequency (customizable) Uplink (MHz) 450~457.5
Downlink (MHz) 460~467.5
Max. Input Level (Non-Destructive) -10dBm
Max. Output Power (customizable) 43dBm
Max. Gain ≥ 85dB
Gain Adjustment Range 1~31dB @ step of 1dB
Frequency Error ≤ 0.05ppm
Voltage Standing Wave Ratio (VSWR) ≤ 1.5
Noise Figure ≤ 5dB
In-Band Ripple ≤ 3dB p-p
Spurious Emission ≤ -36dBm
In-Band Intermodulation Attenuation ≤ -15dBm/30kHz
System Delay ≤ 5.0μSec
I/O Impedance 50Ω
RF Connector N-Type (Female) / changeable / bottom of casing
Temperature Range Operation: -25°C ~ +55°C / Storage: -30°C ~ +60°C
Relative Humidity Range ≤ 95% (non condensing)
Power Supply (customizable) DC -48V / AC 220V, 50/60Hz / AC 110V, 50/60Hz
Backup Power Supply (optional) 4 hours
Casing Level IP65
Dimensions 428mm X 328mm X 220mm
Weight ≤ 30kg
NMS Monitoring Function (optional) Real-time alarm for door status, temperature, power supply, LNA, VSWR, self-oscillation, etc. Remote control such as turn on/off, increasing/decreasing output power, etc. Real-time status for output/input power, UL/DL gain, all status of repeater etc.
