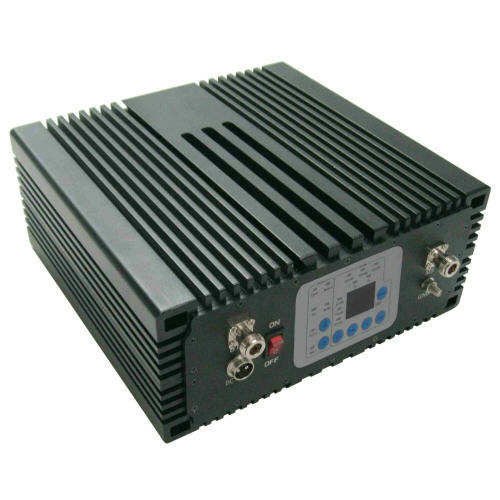

15dBm 80db 3G/WCDMA Signal Repeater Mobile Signal Amplifier (GW-15DRW)

Item No.: 00062
Description Specifications
Description

Model:
GW-15DRW

Features:
· High gain linear power amplifier technique with reliable performance
· In-built AGC & ALC function be able to ensure easy installation without setting.
· Compact size and light weight, easy to install on wall or pole
· Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink
· Support SNMP and Web-based GUI.
· RS232 or RJ45 ports provide links to laptop for local setting and monitoring by built-in web interface.
· Built-in wireless modem (Option) for remote monitoring by SMS, GPRS or TCP/IP.
· Details repeater parameters and status can be monitoring by built-in web interface, such as RSSI, temperature, output power level, gain, ATT, return loss, VSWR etc.

Digital Repeater is a new kind of RF Repeater that is adopting DSP (Digital Signal Processing) technology basis on FPGA platform, highly linear components and unparalleled innovative DSP filtering provide top level performance. Digital Repeater can be selected as Band Selective or Channel Selective operation mode, which supports up to 12 channels both on uplink and downlink. Using an advanced ALC mechanism, each one of the channels has an individual gain and ALC setting.

Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.

Specifications



Item 2100 MHz
Pico
DL
Repeater type Digital Filter Repeater (DFR), minimum 3 sub slot band
Frequency Work 2135 - 2150 MHz
Input port repeater max -65 dBm
Output port repeater max 15 dBm
Gain max 80 dB
Power Adjustment 31 step / 1 dB
Isolation Min (dB) 83

UL
Repeater type Digital Filter Repeater (DFR), minimum 3 sub slot band
Frequency Work 1945 - 1960 MHz
Input port repeater max -75 dBm
Output port repeater max 5 dBm
Gain max 80 dB
Power Adjustment 31 step / 1 dB
Isolation Min (dB) 83

VSWR  1.1<=x<1.4
Inter-modulation Max -37dbm or -80dbc
Spurious Emission Max -37dBm at +/- 750 kHz
I/O Impedance  50 ohm
Noise Figure Max 5dB
Group Time Delay  Max 4µS
Temperature Range  -25 degree Celsius to +55 degree Celsius
Relative Humidity  Max 95%
MTBF  Min. 100000 hrs

Connector Type SMA-female w/ additonal adaptor SMA-male to N-female
ICS Yes
ALC Yes
AGC Yes
AGC Control Range  Min 40dB (+/-1dB)
Gain Control Range  31 step (1dB Step)

NMS based on Data service (include modem (2G/3G or 2G only (GSM/DCS or GSM only)*)) No
GUI Yes

Power Consumption  25 W
Power Supply Type Switching Regulator
UPS with casing (IP 65, repeater inside) No Need
UPS Capacity -

Antenna system (include accessories)
     Donor
Type Yagi (pig tailed N-female 30 cm)
Gain > 10 dBi
Pole antenna (Ø 2" aluminium include bracket)
    Serving
Type Mounted/Spliting
Gain > 3 dBi
Pole antenna (Ø 5" aluminium include bracket) -

Installation part
Cable RG8 length 80 m
Connector N-male RG8 10 pcs
MCB with box No need
Power cable 3wire w/ stop contact 10 meter
Installation local material (ties cable, rubber, isolatif 3M, sticker Isat, cable clamp etc) 1 package
