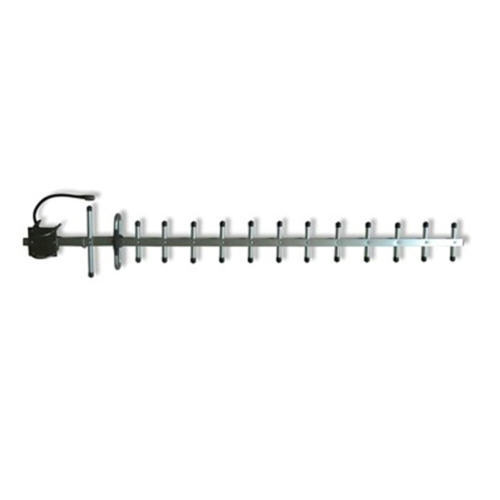

1920-2170MHz 12dBi Yagi Antenna/3G 2100MHz Yagi Antenna (GW-YAGI1920-2170-12D)

Item No.: 00161
Description Specifications
Description

Product Feature:
1. Wide band, high gain and Low VSWR.
2. High quality Aluminum Alloy material.
3. Good Environmental Adaptability.
4. With the Cable leads.
5. Can be horizontal or Vertical installation

Applications:
1. Mobile Communication Network Optimization and Indoor distribution system
2. Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio

Specifications
ELECTRICAL
Frequency Range 1920-2170-MHz
Bandwidth 250-MHz
Gain 12-dBi
Beamwidth H: 36- °E: 32- °
F/B ratio ≥18-dB
VSWR ≤1.5
Polarization Horizontal or Vertical
Max power 100 –W
Nominal Impedance 50 –Ω

MECHANICAL
Connector­­­ N female or customized
Dimension 0.5-M
Weight 0.7-KG
Element 10
Material Aluminum Alloy
Rated Wind Velocity 60-m/s
Mounting Kits U bolts
