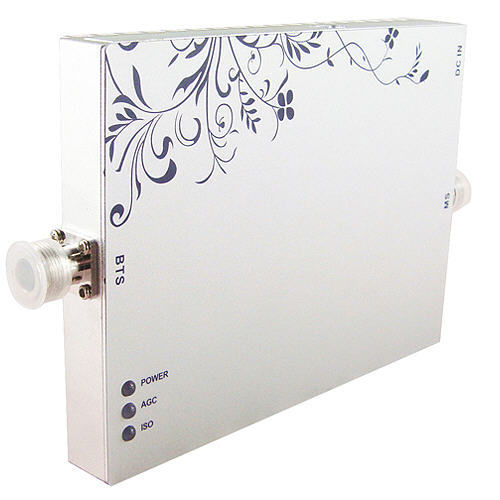

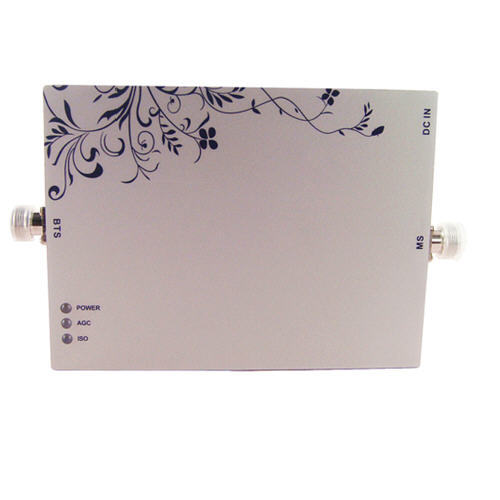

23dBm Iden/ Small Tetra Repeater Cell Phone Amplifier (GW-23HI)

Item No.: 00227
Description Specifications
Description

Model: GW-23HL

Indoor Signal Booster series is an ideal solution for small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to a BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area.

Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.
Expansion and extention of the signal of base station.
Optimization of the quality of the signal and source
3. Cover about 500~3000 m² without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Wide band signal booster, or customize selective band booster.
Antenna isolation testing,Prevent the oscillation
7. Support system CDMA450, LTE700, LTE800, iDEN, CDMA800/GSM850,
GSM900, EGSM, AWS1700, DCS1800, PCS1900,WCDMA, LTE2600,etc

Standard Package:
1) AC90-264V, DC9V/3A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS

Recommended Accessories:
1)Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
2)Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3)5D-FB coaxial cable with connecter (Cable length optional)

Application:
To expand signal coverage of fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, etc.

Specifications

Frequency Range

Uplink

Downlink

CDMA 450

452.5 - 457.5MHz

462.5 - 467.5MHz

LTE700 A/B

699- 716MHz

729- 746MHz

LTE700 C

777- 787MHz

746- 756MHz

LTE700 D

788- 798MHz

758- 768MHz

 LTE 800

832- 862MHz

791- 821MHz

iDEN

806- 824MHz

851- 869MHz

CDMA 800/GSM 850

824- 849MHz

869- 894MHz

GSM 900

890- 915MHz

935- 960MHz

EGSM

880 - 915MHz

925 - 960MHz

AWS1700

1710- 1755MHz

2110- 2155MHz

DCS 1800

1710- 1785MHz

1805- 1880MHz

PCS 1900

1850- 1910MHz

1930- 1990MHz

WCDMA/3G 2100

1920- 1980MHz

2110- 2170MHz

LTE 2600

2500- 2570MHz

2620- 2690MHz

Max. Gain

60 - 70dB

65 - 75dB

Max. Output Power

14 - 20dBm

17 - 24dBm

Band width

Wide Band

Manual Gain Control

31dB     / 1dB Step

Automatic Gain Control

>20dB

Ripple in-band

≤ 6dB

Return loss

≤ -10dB

Noise Figure

≤ 6dB

Spurious Emission
&Intermodulation

9KHz~1GHz

≤ -36dBm

1~12.75GHz

≤ -30dBm

WCDMA

Spurious Emission Mask

Meet 3GPP TS 25.143 ( V 6.2.0 )

Modulation Accuracy

≤ 12.5%

Peak Code Domain Error

≤ -35dB@Spreading Factor 256

Time Delay

≤ 1.5 μs

Frequency stability

≤ 0.01ppm

MTBF

> 50000 hours

Power Supply

AC100-240V,DC9V/3A

Power LED

Power indicator

ISO LED

Red

Autoexcitation or High Power

Green

Standard

AGC LED

Off

Low Power or No power

Green

 Standard

Red

Full Signal,  ALC On

Mechanical Specification

RF Connector

N-Female

Impedance

50 ohm

Humidity

< 90%

Operating Temperature

-10°C~55°C

Environment Conditions

IP40

Size

204mm×128mm×27mm

Weight

< 1.5 Kg
