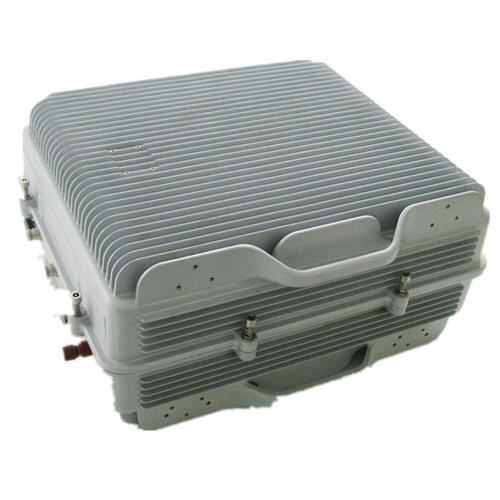

Model:
GW-33DRDW
GW-37DRDW
GW-40DRDW
GW-43DRDW
Features:
· Aluminum-alloy IP65 casing has high resistance to dust, water and corroding;
· High gain linear power amplifier technique with reliable performance
· In-built AGC & ALC function be able to ensure easy installation without setting.
· Compact size and light weight, easy to install on wall or pole
· Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink
· Support SNMP and Web-based GUI.
· RS232 or RJ45 ports provide links to laptop for local setting and monitoring by built-in web interface.
· Built-in wireless modem (Option) for remote monitoring by SMS, GPRS or TCP/IP.
· Details repeater parameters and status can be monitoring by built-in web interface, such as RSSI, temperature, output power level, gain, ATT, return loss, VSWR etc.
Digital Repeater is a new kind of RF Repeater that is adopting DSP (Digital Signal Processing) technology basis on FPGA platform, highly linear components and unparalleled innovative DSP filtering provide top level performance. Digital Repeater can be selected as Band Selective or Channel Selective operation mode, which supports up to 12 channels both on uplink and downlink. Using an advanced ALC mechanism, each one of the channels has an individual gain and ALC setting.
Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, highways
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.
1. Electrical Specification | ||||||
DCS | Uplink | Downlink | ||||
Frequency Range | 1710 - 1775 MHz (20 MHz freq window) | 1805 - 1880 MHz (20 MHz freq window) | ||||
Repeater type | Digital Filter Repeater (DFR), minimum 3 sub slot band | |||||
Maximum Gain | 95dB | 95dB | ||||
Gain Flatness | ≤5dB(P-P) | |||||
Output Power | 30dBm±1dB | 40dBm±1dB | ||||
Out of Band Gain | ± 400 KHz | ≥25 dBc | ||||
± 600 KHz | ≥35 dBc | |||||
±1MHz | ≥40 dBc | |||||
±5MHz | ≥50 dBc | |||||
Intermodulation Products | 9KHz~1GHz | ≤-36dBm | ≤-36dBm | |||
1GHz~12.75GHz | ≤-50dBc | ≤-50dBc | ||||
Spurious Emission | 9KHz~1GHz | ≤-36dBm | ||||
1GHz~12.75GHz | ≤-30dBm | |||||
WCDMA | Uplink | Downlink | ||||
Frequency Range | 1945 - 1960 MHz | 2135 - 2150 MHz | ||||
Repeater type | Digital Filter Repeater (DFR), minimum 3 sub slot band | |||||
Maximum Gain | 94dB | 94dB | ||||
Gain Flatness | ≤2dB/3.84MHz | |||||
Out of Band Gain | 2.7 ≤ f_offset <3.5 MHz | < 60 dB | ||||
3.5 ≤ f_offset <7.5 MHz | < 45 dB | |||||
7.5 ≤ f_offset <12.5 MHz | < 45 dB | |||||
12.5 ≤ f_offset | < 35 dB | |||||
Output Power | 29dBm±1dB | 39dBm±1dB | ||||
ACRR | 45dBc/30KHz@±5MHz | 45dBc/30kHz@±5mhz | ||||
50dBc/30KHz@±10MHz | 50dBc/30kHz@±5mhz | |||||
Frequency Stability | ≤±0.01ppm | |||||
Error Vector Magnitude | ≤12.5% | |||||
Peak Code Domain Error | ≤-35dB@Spreading Factor 256 | |||||
DCS&WCDMA | ||||||
Manual Gain Control | 31dB in step of 1dB | |||||
Automatic Gain Control | ≥ 40dB | |||||
Max. Input Power Without Damage | ≥ 0dBm | |||||
Noise Figure | ≤5dB | |||||
VSWR | ≤1.4 | |||||
traffic statistics | yes | |||||
Group Delay | ≤ 8μs | |||||
Power Consumption | 280W | |||||
Power Supply | AC 110/ 220 V, 50/ 60 Hz | |||||
2. Mechanical specification | ||||||
Dimensions | 440*500*235mm | |||||
Weight | 34kg | |||||
I/O Connector/ Impedance | N-female / (Nominal)50Ω | |||||
3. Environmental specification | ||||||
IP Rating | IP65 | |||||
Operating Temperature | -25 ~ 55°C | |||||
4. Monitoring specification | ||||||
Monitoring | UL/DL Gain | UL/DL ATT | ||||
UL/DL PA Switch | Alarm Message | |||||
Control | UL/DL ATT | UL/DL PA Switch | ||||
