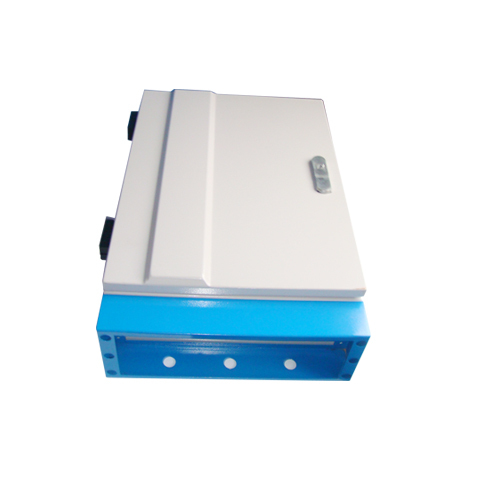

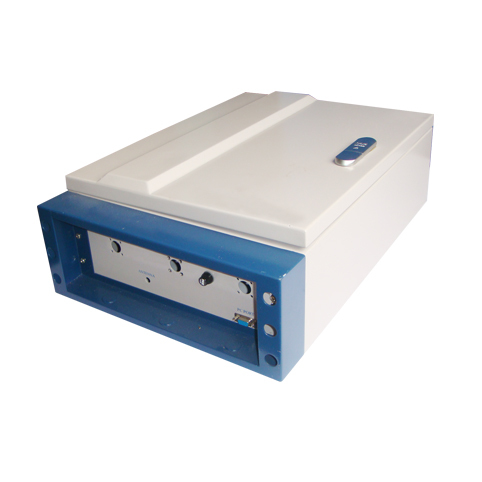

Model:
GW-37CSRC
Feature:
* Each Central frequency can be shifted.
* High linear design, low interference to BTS.
* Intelligent design, built-in ALC function.
* With the used of IF saw fillter to make it good out-of-band rejection.
* Indoor coverage up to 10000-50000 m² , outdoor coverage up to 1-5 KM.
* Can be controled and monitored, via RS232 connects PC for local control, via GSM modem connects PC for remote control.
Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, highways
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.
|
Items |
Uplink |
Downlink |
|||||||
|
Frequency Range |
CDMA800 & GSM850 |
824 ~ 849 MHz |
869 ~ 894 MHz |
||||||
|
Max. Gain |
83 dB |
87 dB |
|||||||
|
Bandwidth |
200K |
||||||||
|
Channels Number |
≤ 8 Channels |
||||||||
|
Manual Gain Control |
31dB in step of 1dB |
||||||||
|
Automatic Gain Control |
> 20dB |
||||||||
|
Ripple in Band |
≤ 3dB(Typical) |
||||||||
|
Out of Band Rejection |
± 400 KHz ≤ -20 dBc |
||||||||
|
± 600 KHz ≤ -30 dBc |
|||||||||
|
± 1 MHz ≤ -40 dBc |
|||||||||
|
± 5 MHz ≤ -50 dBc |
|||||||||
|
Max. Input Power Without Damage |
0 dBm |
||||||||
|
Output Power |
26 dBm |
37 dBm |
|||||||
|
Intermodulation Products |
9KHz~1GHz |
≤ -36 dBm |
≤ -45 dBc |
||||||
|
1GHz~12.75GHz |
≤ -30 dBm |
≤ -45 dBc |
|||||||
|
Spurious Emission |
9KHz~1GHz |
≤ -36 dBm |
≤ -36 dBm |
||||||
|
1GHz~12.75GHz |
≤ -30 dBm |
≤ -30 dBm |
|||||||
|
Frequency Stability |
≤ 0.01 ppm |
||||||||
|
Noise Figure @ max. gain |
≤ 5 dB(Typical) |
||||||||
|
Return loss |
≤ -14 dB |
||||||||
|
Time Delay |
≤ 4.5 μ s |
||||||||
|
MTBF |
> 50000 hours |
||||||||
|
Power Supply |
AC: 90~265V, 50/ 60Hz |
||||||||
|
Power Consumption |
< 250W |
||||||||
|
Impedance |
50 ohm |
||||||||
|
LED indication |
Power LED |
DC ON/OFF |
|||||||
|
Alarm LED |
Normal: Green; Any Alarm Heppen: Red |
||||||||
|
Remote/ Local Control |
Local: Via RS232; Remote: Via wireless Modem |
||||||||
|
RF Connector |
N-Female |
||||||||
|
Switch |
Power Switch\Battery Switch |
||||||||
|
Cooling |
Heatsink Convection cooling |
||||||||
|
Dimensions (D x W xH ) |
420x650x170 mm |
||||||||
|
Weight |
< 35 Kg |
||||||||
|
Installation Type |
Wall Installation (or Pole Mount) |
||||||||
|
Environment Conditions |
IP65 |
||||||||
|
Humidity |
< 90% |
||||||||
|
Operating Temperature |
-10º C~55º C |
||||||||
