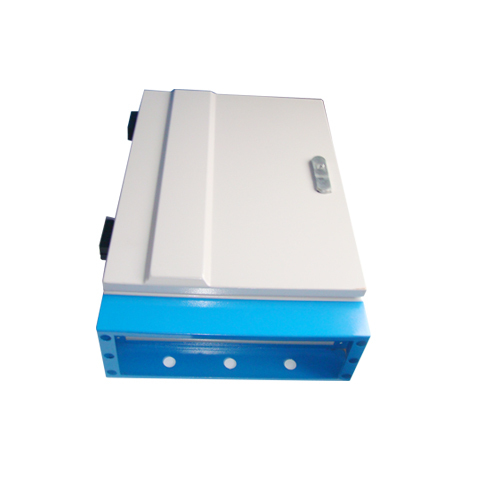

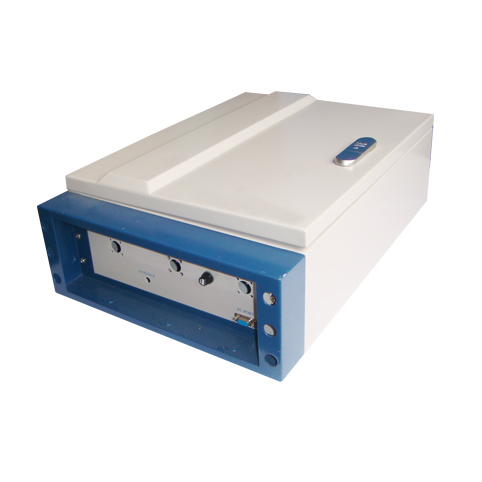

40dBm 1800MHz Dcs Channel Selective Repeater/Mobile Repeater/Mobile Phone Repeater (GW-40CSRD)

Item No.: 00056
Description Specifications
Description

Model:
GW-40CSRD

Feature:
* Each Central frequency can be shifted.
* High linear design, low interference to BTS.
* Intelligent design, built-in ALC function.
* With the used of IF saw fillter to make it good out-of-band rejection.
* Indoor coverage up to 10000-50000 m² , outdoor coverage up to 1-5 KM.
* Can be controled and monitored, via RS232 connects PC for local control, via GSM modem connects PC for remote control.

Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, highways
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.

Specifications

Items Uplink Downlink
  Frequency Range DCS 1710 ~ 1785 MHz 1805 ~ 1880 MHz
Max. Gain 90 dB 95 dB
Bandwidth 200K
Channels Number ≤ 8 Channels
Manual Gain Control 31dB in step of 1dB
Automatic Gain Control > 20dB
Ripple in Band ≤ 3dB(Typical)
Out of Band Rejection ± 400 KHz ≤ -20 dBc
± 600 KHz ≤ -30 dBc
± 1 MHz ≤ -40 dBc
± 5 MHz ≤ -50 dBc
Max. Input Power Without Damage 0 dBm
Output Power 33 dBm 40 dBm
Intermodulation Products 9KHz~1GHz ≤ -36 dBm ≤ -45 dBc
1GHz~12.75GHz ≤ -30 dBm ≤ -45 dBc
Spurious Emission 9KHz~1GHz ≤ -36 dBm ≤ -36 dBm
1GHz~12.75GHz ≤                                     -30 dBm ≤ -30 dBm
Frequency Stability ≤ 0.01 ppm
Noise Figure @ max. gain ≤ 5 dB(Typical)
Return loss ≤ -14 dB
Time Delay ≤ 4.5 μ s
MTBF > 50000 hours
Power Supply AC: 90~265V, 50/ 60Hz
Power Consumption < 250W
Impedance 50 ohm
LED indication Power LED DC ON/OFF
Alarm LED Normal: Green; Any Alarm Heppen: Red
Remote/ Local Control Local: Via RS232; Remote: Via wireless Modem
RF Connector N-Female
Switch Power Switch\Battery Switch
Cooling   Heatsink Convection cooling
Dimensions (D x W xH ) 420x650x170 mm
Weight < 35 Kg
Installation Type Wall Installation (or Pole Mount)
Environment Conditions IP65
Humidity < 90%
Operating Temperature -10º C~55º C
