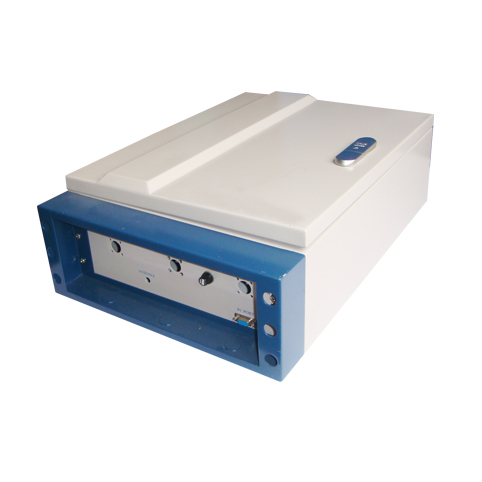

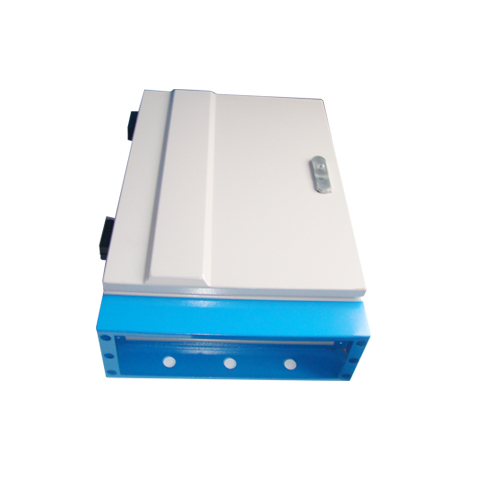

Model:
GW-40CSRP
Feature:
* Each Central frequency can be shifted.
* High linear design, low interference to BTS.
* Intelligent design, built-in ALC function.
* With the used of IF saw fillter to make it good out-of-band rejection.
* coverage up to 1-5 KM.
* Can be controled and monitored, via RS232 connects PC for local control, via GSM modem connects PC for remote control.
Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, highways
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.
| Items | Uplink | Downlink | |||||||
| Frequency Range | DCS | 1850 - 1910 MHz | 1930 ~ 1990 MHz | ||||||
| Max. Gain | 90 dB | 95 dB | |||||||
| Bandwidth | 200K | ||||||||
| Channels Number | ≤ 8 Channels | ||||||||
| Manual Gain Control | 31dB in step of 1dB | ||||||||
| Automatic Gain Control | > 20dB | ||||||||
| Ripple in Band | ≤ 3dB(Typical) | ||||||||
| Out of Band Rejection | ± 400 KHz ≤ -20 dBc | ||||||||
| ± 600 KHz ≤ -30 dBc | |||||||||
| ± 1 MHz ≤ -40 dBc | |||||||||
| ± 5 MHz ≤ -50 dBc | |||||||||
| Max. Input Power Without Damage | 0 dBm | ||||||||
| Output Power | 33 dBm | 40 dBm | |||||||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | ≤ -45 dBc | ||||||
| 1GHz~12.75GHz | ≤ -30 dBm | ≤ -45 dBc | |||||||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | ≤ -36 dBm | ||||||
| 1GHz~12.75GHz | ≤ -30 dBm | ≤ -30 dBm | |||||||
| Frequency Stability | ≤ 0.01 ppm | ||||||||
| Noise Figure @ max. gain | ≤ 5 dB(Typical) | ||||||||
| Return loss | ≤ -14 dB | ||||||||
| Time Delay | ≤ 4.5 μ s | ||||||||
| MTBF | > 50000 hours | ||||||||
| Power Supply | AC: 90~265V, 50/ 60Hz | ||||||||
| Power Consumption | < 250W | ||||||||
| Impedance | 50 ohm | ||||||||
| LED indication | Power LED | DC ON/OFF | |||||||
| Alarm LED | Normal: Green; Any Alarm Heppen: Red | ||||||||
| Remote/ Local Control | Local: Via RS232; Remote: Via wireless Modem | ||||||||
| RF Connector | N-Female | ||||||||
| Switch | Power Switch\Battery Switch | ||||||||
| Cooling | Heatsink Convection cooling | ||||||||
| Dimensions (D x W xH ) | 420x650x170 mm | ||||||||
| Weight | < 35 Kg | ||||||||
| Installation Type | Wall Installation (or Pole Mount) | ||||||||
| Environment Conditions | IP65 | ||||||||
| Humidity | < 90% | ||||||||
| Operating Temperature | -10º C~55º C | ||||||||
