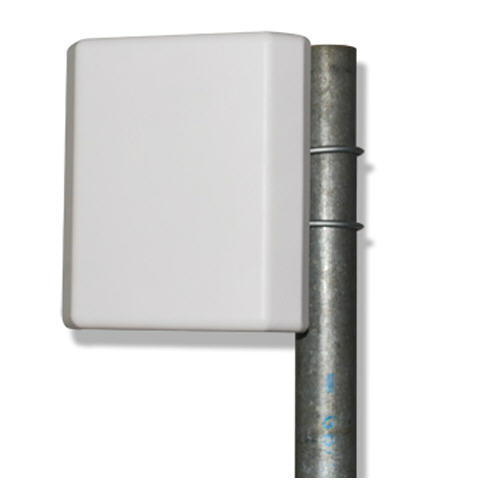

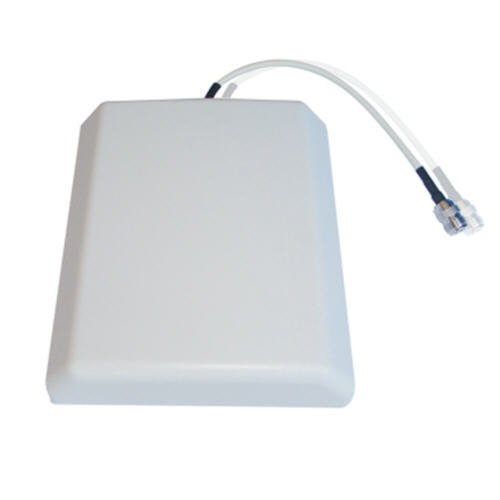

450-470MHz 6dBi Panel Antenna/ Outdoor Antenna/Directional Panel Antenna (GW-OWMA450-6D)

Item No.: 00184
Description Specifications

Product Feature
* Elegant appearance, simple installation, stable performance.
* Good performance in anti-vibration and resistant to aging.
* Fit for installation for Aluminum ceiling and Gypsum Ceiling.

Model GW-OWMA450-6d
Frequency Range 450-470-MHz
Bandwidth 20-MHz
Gain 6-dBi
F/B ratio ≥18-dB
VSWR ≤1.5
Polarization Horizontal or Vertical
Max power 100 -W
Nominal Impedance 50 -Ω

Connector­­­ N female or customized
Antenna Dimension          250x220x60-mm
Weight 1.1-kg
Rated Wind Velocity 60-m/s
Mounting Kits L bracket & U bolts
Mounting Mast Diameter       40-50mm
