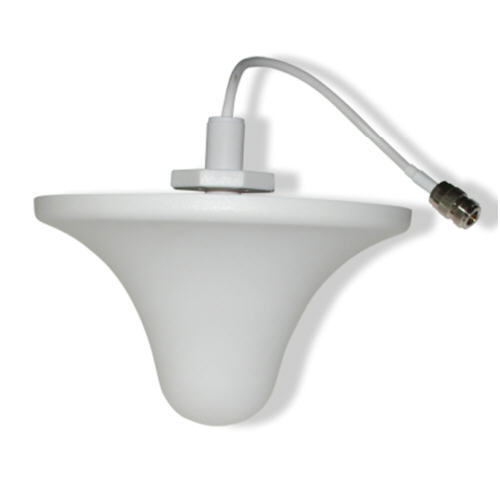

Product Feature
* Elegant appearance, simple installation, stable performance.
* Good performance in anti-vibration and resistant to aging.
* Fit for installation for Aluminum ceiling and Gypsum Ceiling.
| ELECTRICAL | |
| Model | GW-CA4503D |
| Frequency Range | 450-470-MHz |
| Bandwidth | 20-MHz |
| Gain | 2.5-dBi |
| Beamwidth | H:360- ° E:65 ° |
| VSWR | ≤2 |
| Polarization | Vertical |
| Max power | 50 -W |
| Nominal Impedance | 50 -Ω |
| MECHANICAL | |
| Connector | N female or customized |
| Antenna Dimension | Φ180×90-mm |
| Weight | 200-g |
| Color | White |
| Rated Wind Velocity | 60-m/s |
| Working Temperature | -40~+70c |
| Mounting | Fixed with Nut |
