Item |
Spec. |
Remarks |
|
|
1 |
7800-8100 MHz |
Bandwidth Range±5MHz |
|
|
Working Voltage |
28V |
24-28V |
|
|
Working Current |
5.5A |
|
|
|
Sweeping Speed |
Standard 120KHz (Customizable 50-300KHz) |
8μ/s |
|
|
Output Power (Max) |
47±1 dBm |
|
|
|
Gain (Max) |
47±1 dB |
|
|
|
Ripple in Band |
≤ 3 dB |
Peak |
|
|
Bandwidth Adjustment |
Yes |
By screw |
|
|
Center Adjustment |
Yes |
By screw |
|
|
Enable Control |
Customize |
3-28V |
|
|
Output VSWR |
≤2.0 |
VSWR protect |
|
|
High Low Temperature test |
Working Temperature |
-20~+80℃ |
Working properly |
|
|
Gain Stability |
±2 dB |
-20℃~+80℃ |
|
|
Power Stability |
±2 dB |
-20℃~+80℃ |
|
Power Supply Port |
Positive and negative lines |
24-28V; GND; (Optional: Enable control wire) |
|
|

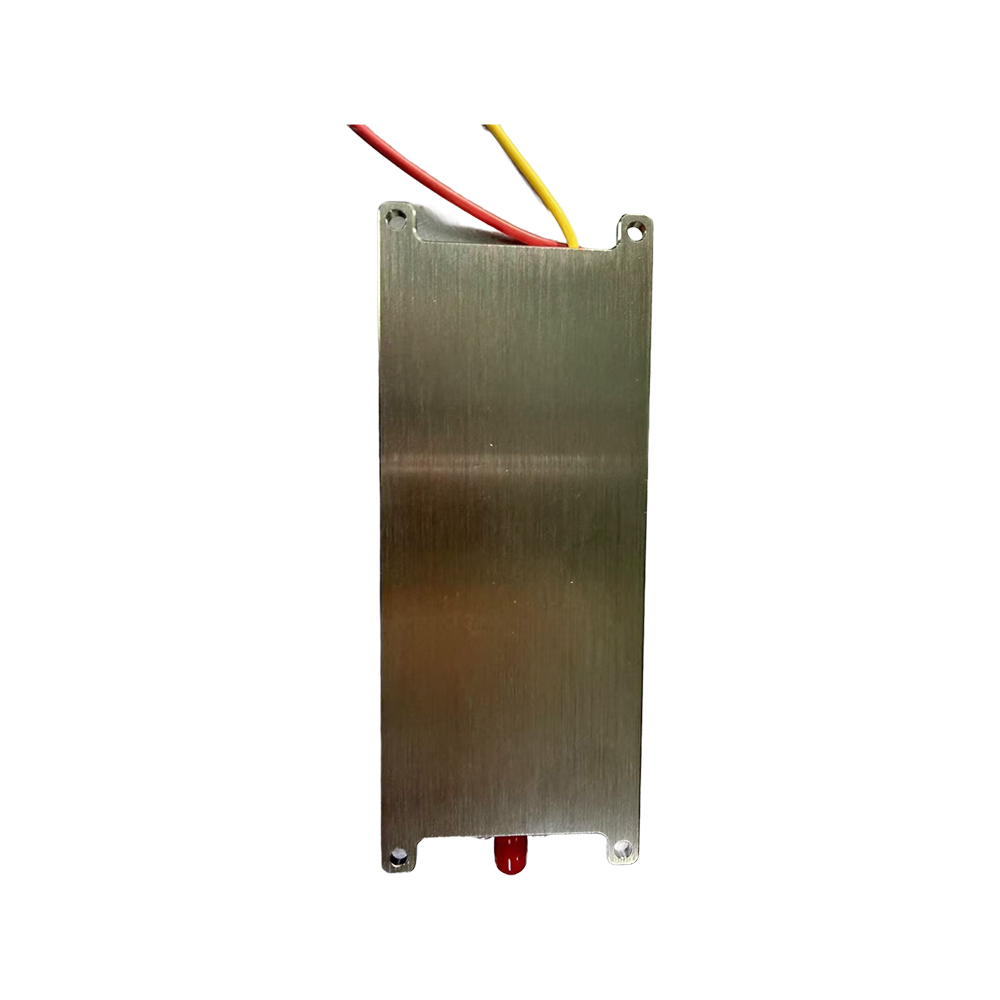

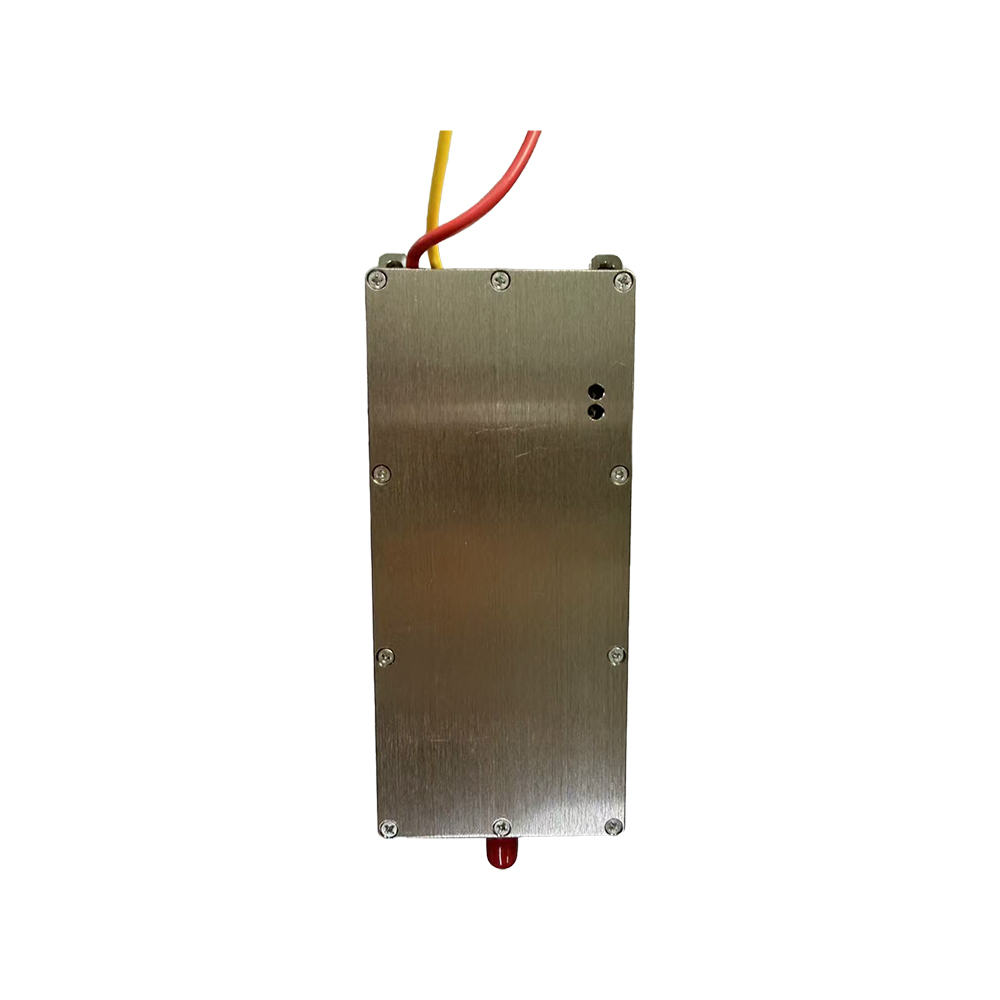

Shell Material |
Aluminum with natural color oxide sand blasting |
|
|
|
RF Output Connector |
SMA |
|
|
|
Dimension |
132*53*17mm |
||
