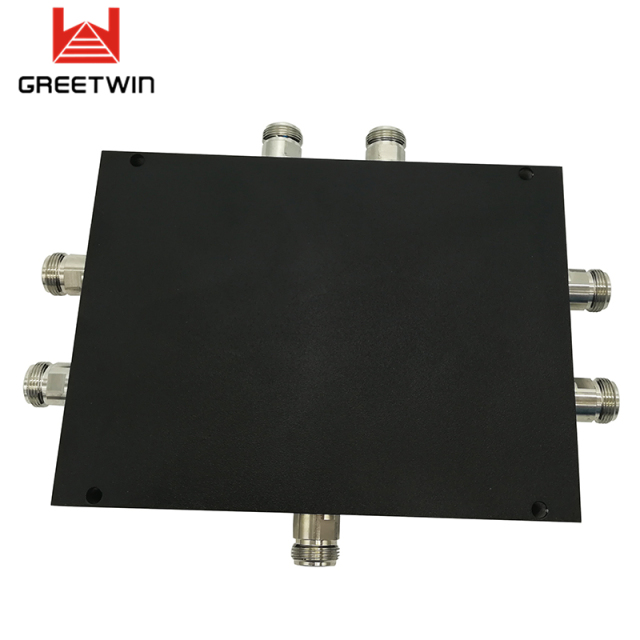

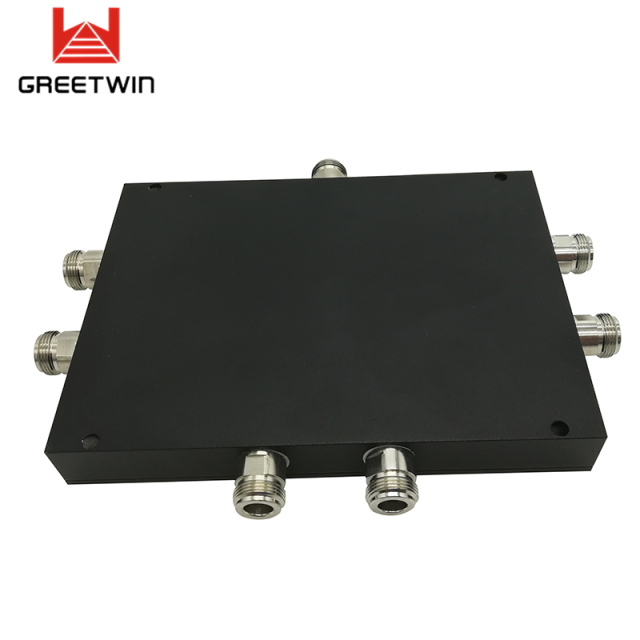

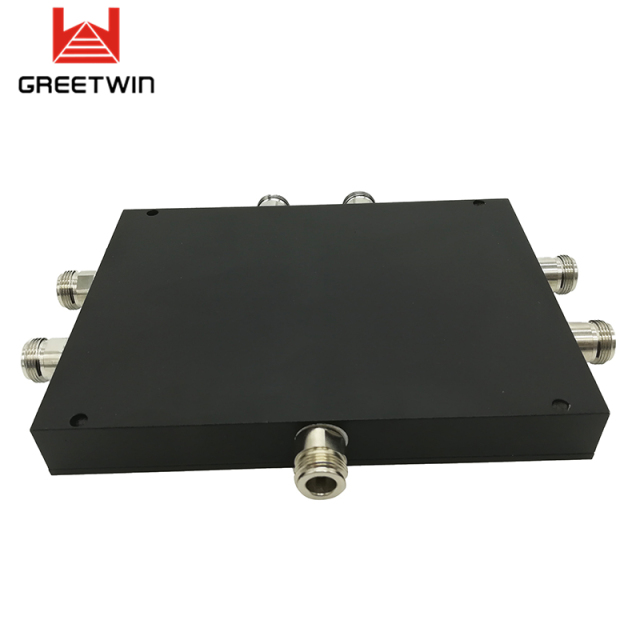

6 Way Microstrip Power Splitter for Signal Booster

Item No.: GW-MPS70276
1. Wide Frequency Range
2. Low Insertion Loss
3. Low VSWR
4. Excellent Coupling Flatness
5. Multiple-Band Frequency Ranges Tetra, Cellular, UMTS and LTE, etc.
INQUIRY
Description

Product Description

1,Product Details.jpg

6 Way Microstrip Power Splitter for Signal Booster


Product Feature:

1. Wide Frequency Range
2. Low Insertion Loss
3. Low VSWR
4. Excellent Coupling Flatness
5. Multiple-Band Frequency Ranges Tetra, Cellular, UMTS and LTE, etc.
6. Minimal RF Insertion Loss.
7. High Reliability.
8. Low Cost Design for ease of mounting to pole or wall.
9. N/DIN connector.


Applications:

1. Mobile Communication Network Optimization and Indoor distribution system
2. Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio


Specification
Frequency Range 698-2700mhz
Insertion loss(including dividing loss) ≤6.5
Isolation ≥20-(d B)
VSWR ≤1.35
Max power 50 -W
Nominal Impedance 50 -Ω
Connector­­­ N-50KFD
Color Black(normal)or Silver
Dimension          71×71×22-mm
Weight 300-g








User's Manual

user's manual.jpg
Application Diagram

640  (107)__



1) Donor antenna: Recommend to use wide band panel antenna (7~14dBi gain) or Yagi antenna, better to use antenna with good direction, high gain, and decoration shall be considered if it is in urban areas.



2) Role: It picks up signals from the tower, and sends to the booster through cables, at the same time, it transmits the amplified mobile signals from the booster to the tower.



3) Server antenna: Recommend to use indoor omni or panel antenna. Indoor omni is suitable for wide open areas where the signals can be radiated from the center to the surroundings, while indoor panel is suitable for those narrow and long areas, like tunnels, corridors, elevators, etc.



4) Cables: 5D-FB or 7D-FB coaxial cables.



5) Power supply: Booster power adapter, a desktop standard. Usually directly connected to a power outlet. But preferably equipped with an air switch, groundings, sometimes a surge arrestor shall be connected.




Product Recommended

4,Product Recommended.jpg


Company Information

5,Company Information.jpg





6,Exhibition and customers.jpg


Certifications



Packing and Shipping

8,Packing and Shipping.jpg


FAQ


      Q1. Why is there still no signal after installing the equipment?

            1. Check the power on booster and power supply.

            2. Check the connector of outdoor antenna is tight or not.

            3. Check the connectors of RF cable are tight or not.

            4. Check the outdoor signal is strong enough or not.

            5. Check to make sure the antenna is installed correctly.

            6. Check the connector of indoor antenna is tight or not.

            7. Check the cable type is suitable or not.



      Q2. Why the signal strength is too weak on the edge of area?

            1. Check the outdoor signal and antenna direction.

            2. Check booster is full gain or not.

            3. Check all of the connectors are tight.

            4. Change the location of outdoor/indoor antenna.

            5. Check the cable type is suitable or not.

            6. Deploy more indoor antennas.



      Q3. After running booster, why the signals are not stable?

            1. Checking the distance between donor antenna and server antenna are too close to each other? Check LED

                of booster to

                make sure alarms are green.

            2. Checking the signals from donor antenna whether to be stable or not?

            3. Connect the system again if it is incorrect connection.



      Q4. Why the booster power LED is not bright?

            1. Checking the input AC power range indicated on power adapter whether is corresponding to the local

                power system.

            2. Checking the power adapter whether connect the equipment correctly and stably or not.

            3. Checking the power adapter whether damage or not. To test output voltage whether be corresponding to

                that indicated on power adapter or not by multimeter
