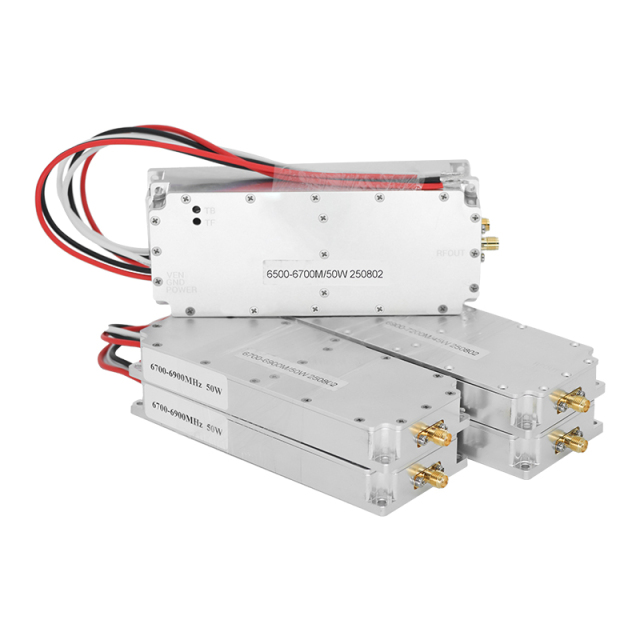

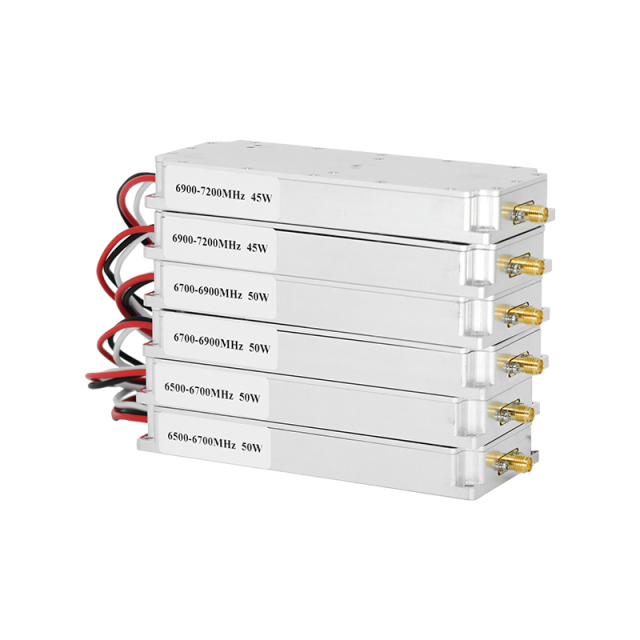

6700-6900MHz 50W Anti Drone Device GaN FPV Jammer RF Module
|
Test Items
|
Specs
|
|
Frequency Range (MHz)
|
6700-6900MHz
|
|
Bandwidth(MHz)
|
200/300
|
|
Max Output power(dBm)
|
47dBm±1.5dBm
|
|
Delay time（ns）
|
≤50
|
|
Gain(dB)
|
47±1.0
|
|
Ripple(dB)
|
≤2.5dB
|
|
Input VSWR
|
≤1.35
|
|
Output VSWR
|
≤1.3
|
|
Power Supply
|
＋24-28V DC @50W/3.6A
|
|
Connector Type
|
SMA
|
|
Working Temperature
|
-40～+70℃
|
|
Size(mm)
|
132×53×17
|
Such as, Drone jammer, UAV jammer, High power bomb jamming devices, Manpack jammer, IED jammers, Prison jammer, Digital programable jammer, VIP Convoy Bomb Jammers (RCIED Jammers), Mobile Phone Signal Jammers, Prison Jammers, Portable Jammers, Handheld Jammers, to suit all types counter terrorism activities
