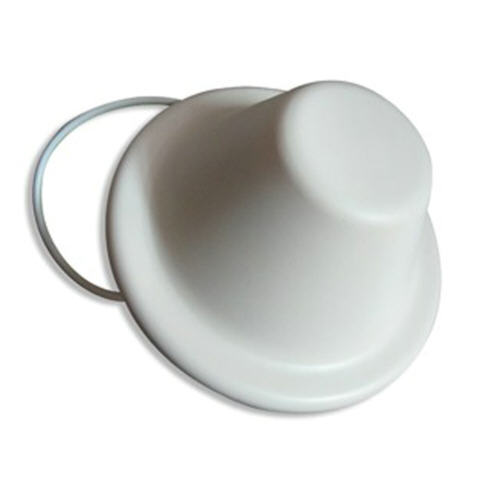

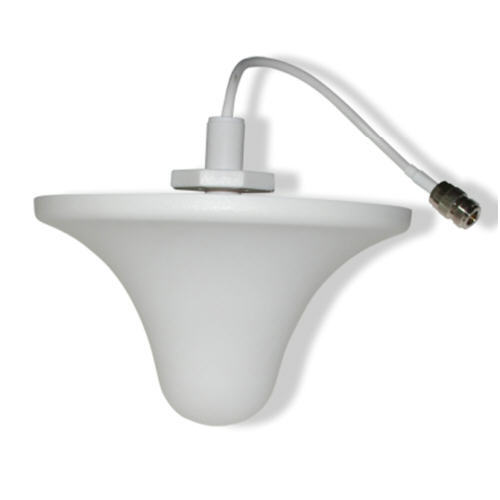

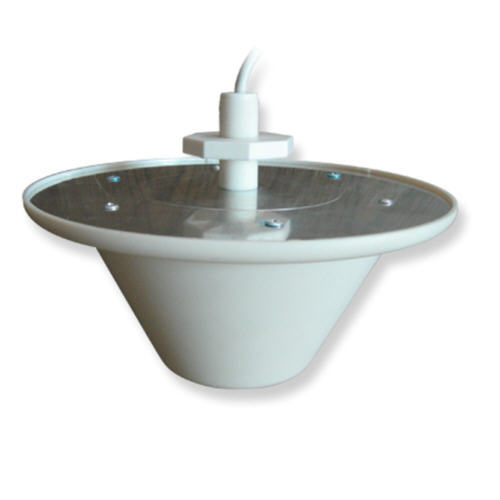

698-2700MHz Ceiling Mount Antenna/Lte 4G Antenna (GW-CA70273D)

Item No.: 00165
Description Specifications
Description

Product Feature
* Elegant appearance, simple installation, stable performance.
* Good performance in anti-vibration and resistant to aging.
* Fit for installation for Aluminum ceiling and Gypsum Ceiling.

Specifications

ELECTRICAL
Frequency Range 698-960/1710-2700-MHz
Bandwidth 262/990-MHz
Gain 3-dBi
 Intermodulation IM3  ≤-107-dBm  (2W)
VSWR ≤2.0
Polarization Vertical
Max power 50-W
Nominal Impedance 50 -Ω

MECHANICAL
Connector­­­ N female or customized
Antenna Dimension          Φ187×86-mm
Weight 290-g
Color White
Rated Wind Velocity 60-m/s
Working Temperature    -40~+70'c
Mounting Fixed with Nut
