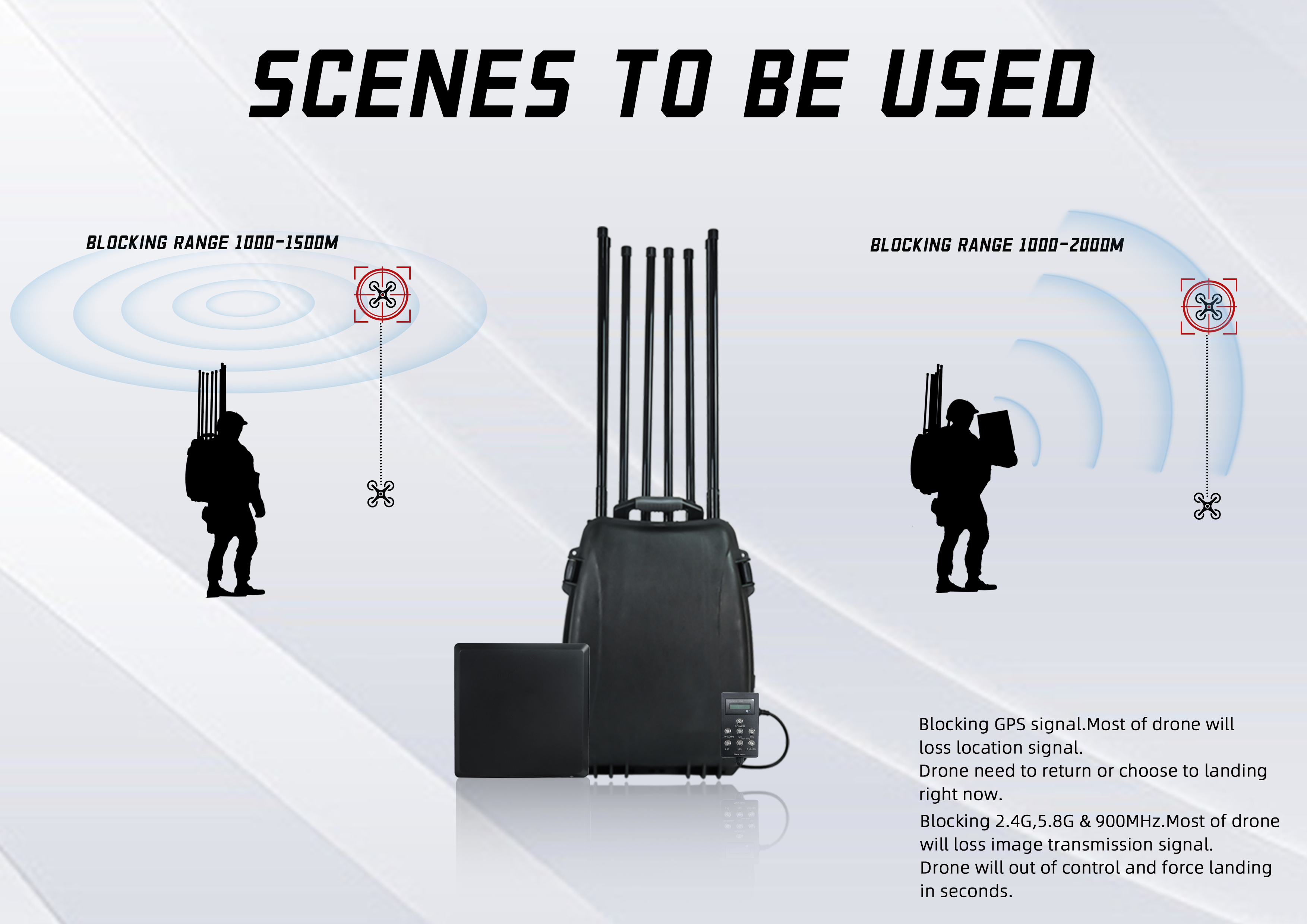

Jamming Range：
Omni Antenna： 800-1500m
Directional Antenna： 1000-2000m
Parameter：
|
External Antenna：5 Pcs Omni Antenna (6-8 dBi) . |
|
|
Handheld Version Directional Antenna：1 Pcs High Gain Directional Antenna |
|
|
VSWR – Antenna disconnect/short circuit protection |
|
|
Built-in lithium battery - Working Time about 1 hour / Standby 48 hours / The charging time is about 5 hours |
|
|
Power Supply: 100-240 V AC / 24-28 VDC |
|
|
Weight: 35kg (1 Set) |
|
|
Frequency |
Output Power |
|
6000-6200MHz |
50 W / 47±1.5dBm |
|
6200-6450MHz |
50 W / 47±1.5dBm |
|
6450-6700MHz |
50 W / 47±1.5dBm |
|
6700-6950MHz |
50 W / 47±1.5dBm |
|
6950-7200MHz |
50 W / 47±1.5dBm |
|
Total amount: 250W Power consumption: 600W |
|
|
· Protective measures |
VSWR Protection Overheating protection： |
|
· Heat Dissipation |
Fan heat dissipation |
|
Control device / Indicator |
On/Off Switch Light External wired remote control, optional frequency band (1 button per frequency) |
|
Battery |
Li Ion 25Ah |
|
Case |
Backpack Version |
|
Environmental |
|
|
Working Temperature |
-20˚c to +65˚c |
|
Waterproof class |
IP52 |
|
relative humidity |
5%-95% |
Features:
1. High integration & Stable operation, noise reduction technology.
2. Highly effective power & long jamming distance up to 800 - 2000m.
（Based on local area signal strength）.
3. Separate control of each module, convenient operation.
4. High quality tubular radiator, effective in radiating heat.
5. Import components, VSWR protection, overheat protection.
6. No interference to nearby frequency bands.
7. VSWR - disconnected antenna protection.
8. Removable battery, the battery is replaced with a new shell, easy to replace.
Matters needing attention:
1.Be sure to connect the antenna before use.
2.Pay attention to the battery level. When the battery is low, the machine power will decrease accordingly.
3. Do not use while charging.
4.In DC external power mode, please pay attention to voltage stability. （DC 24-28V）.
